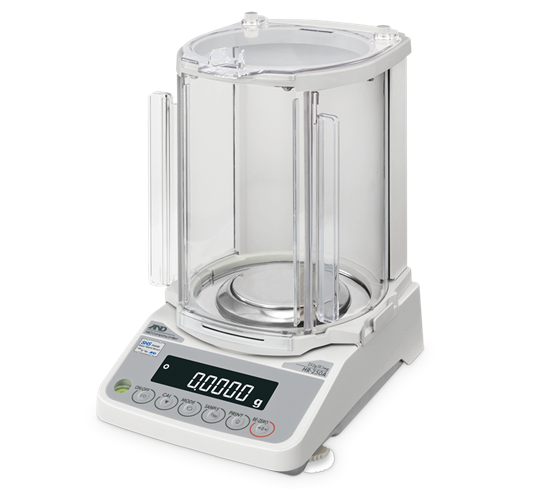

A&D Weighing HR-A and HR-AZ Series Analytical Balance

$0.00

The A&D Weighing HR-A and HR-AZ Series Analytical Balance provides fast stabilization time, compact footprint, and one touch calibration in HR-AZ models.

Download product PDF
Category:

Features

  • Fast stabilization time
  • One-touch calibration in HR-AZ models
  • Compact footprint size
  • Weighing chamber
  • Rotary sliding doors
  • Removable breeze break with anti-static coating
  • GLP/GMP/GCP/ISO compliant

Specifications

HR-100A^ HR-100AZ^ HR-150A^ HR-150AZ^ HR-250A^ HR-250AZ^
^ Weighing Chamber
Part # 150777 150779 150780 150781 150782 150783
Capacity (g) 102 152 252
Resolution (g) 0.0001
Operating Modes Weighing, Percent Weighing, Parts Counting, Density
Repeatability 0.1 mg <200 mg 0.1 mg/>200 mg 0.2 mg
Linearity +/- 0.2 mg +/- 0.3 mg
Stabilization Time 3 seconds
Operating Temperature 41° F to 104° F (5° C to 40° C), 85% RH or less (no condensation)
Pan Size Ø 3.6 inches (90 mm)
Physical Dimensions 7.8 x 11.6 x 12.3 in (198 x 294 x 313 mm)
Weight 8.6 lb (3.9 kg)
Calibration Weight (g) 200 150 100
Power 120/240 AC adapter
Warranty Five-year limited warranty
Return Policy A&D Weighing Standard Policy – restock fee may apply
UNIT OF MEASURE
Decimal Ounce 3.59 x 0.00001 oz 3.59 x 0.00001 oz 5.36 x 0.00001 oz 5.36 x 0.00001 oz 8.88 x 0.00001 oz 8.88 x 0.00001 oz
Troy Ounce 3.27 x 0.00001 ozt 3.27 x 0.00001 ozt 4.88 x 0.00001 ozt 4.88 x 0.00001 ozt 8.10 x 0.00001 ozt 8.10 x 0.00001 ozt
Pennyweight 65.5 x 0.0001 dwt 65.5 x 0.0001 dwt 97.7 x 0.0001 dwt 97.7 x 0.0001 dwt 162 x 0.0001 dwt 162 x 0.0001 dwt
Carat 510 x 0.001 ct 510 x 0.001 ct 760 x 0.001 ct 760 x 0.001 ct 1260 x 0.001 ct 1260 x 0.001 ct
Momme 27.2 x 0.0001 mom 27.2 x 0.0001 mom 40.5 x 0.0001 mom 40.5 x 0.0001 mom 67.2 x 0.0001 mom 67.2 x 0.0001 mom
Grain Unit 1574 x 0.002 GN 1574 x 0.002 GN 2346 x 0.002 GN 2346 x 0.002 GN 3889 x 0.002 GN 3889 x 0.002 GN
Tola 8.74 x 0.00001 to 8.74 x 0.00001 to 13.0 x 0.00001 to 13.0 x 0.00001 to 21.6 x 0.00001 to 21.6 x 0.00001 to
Tael 2.72 x 0.00001 TL 2.72 x 0.00001 TL 4.02 x 0.00001 TL 4.02 x 0.00001 TL 6.66 x 0.00001 TL 6.66 x 0.0001 TL

Options

151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage
98027 Balance OPT,Quick USB Interface A&D FXi-02
98028 Balance OPT,Ethernet Interface With WinCT-Plus Software A&D FXi-08
98029 Balance OPT,Built In Rechargable Battery A&D FXi-09
97649 Balance OPT,AC Adapter TB:248, TB:237 or TB:648, 12 VDC 120 VAC 420mA Negative A&D BM, FX-i, FZ-i, GF, GX, GF-K, GX-K, GH, GR, HR, HR-A, HR-AZ, HR-i, MC, AD-4212 Models

Models

150777 Balance,A&D HR-100A Analytical, 102 x 0.0001 g, 120/240 AC Adapter
150779 Balance,A&D HR-100AZ Analytical, 102 x 0.0001 g, 120/240 AC Adapter, Internal Cal
150780 Balance,A&D HR-150A Analytical, 152 x 0.0001 g, 120/240 AC Adapter
150781 Balance,A&D HR-150AZ Analytical, 152 x 0.0001 g, 120/240 AC Adapter, Internal Cal
150782 Balance,A&D HR-250A Analytical, 252 x 0.0001 g, 120/240 AC Adapter
150783 Balance,A&D HR-250AZ Analytical, 252 x 0.0001 g, 120/240 AC Adapter, Internal Cal
