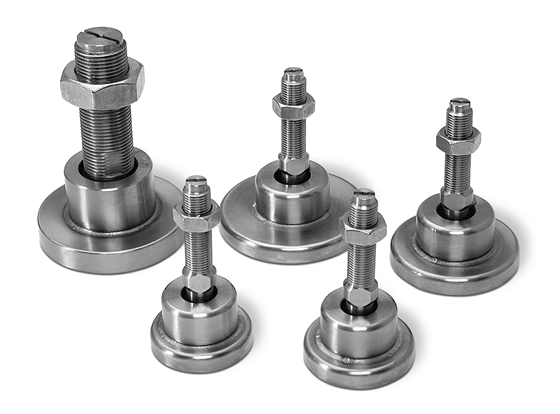

Captured Ball Floor Scale Leveling Feet
$0.00
Stainless steel and carbon steel captured ball floor scale leveling feet provide outstanding accuracy, repeatability and performance with active ball suspension providing optimum load cell performance.
Download product PDF
Features
- Carbon Steel
- Bright zinc and clear chromate plating for corrosion resistance
- Active ball suspension provides ideal load cell loading with maximum side load protection
- Hardened alloy steel with plated finish
- Includes two jam nuts, one for wrench access
- Top of stud is machined undersized 10 percent?for easy alignment into load cell plus slotted for top-access applications
- Stainless steel
- Provides outstanding accuracy, repeatability and performance
- Active ball suspension provides optimum load cell performance
- Hardened stainless steel material, welded?with polished finish
- Includes two stainless steel jam nuts, one for wrench access
- Top of stud is machined undersized 10 percent?for easy alignment into load cell plus slotted for top-access applications
Models
| Part #?74578 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 1.875Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74579 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 2.000Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74580 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 2.500Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74581 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 3.000Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74582 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 3.000Dia 3/4-16 UNF Thread, 4.500 Height |
|
| Part #?74583 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 3.000Dia 1-12 UNF Thread, 4.500 Height |
|
| Part #?74584 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 3.000Dia 1-14 UNF Thread, 4.500 Height |
|
| Part #?171449 |
Product DescriptionFoot,Floor Scale Carbon Steel Captured Ball 3.00 Dia 1-14 UNF Thread, 5.0 Height To Include Milled In Wrench Flats |
|
| Part #?173018 |
Product DescriptionFoot, Floor Scale Carbon Steel Captured Ball 4.40 DIA 3/4-16UNF x 3.13 Tall Fully Threaded Stem Zinc Plated |
|
| Part #?174937 |
Product DescriptionFoot, Floor Scale Carbon Steel Captured Ball 5.40 DIA 3/4-16UNF x 4.13 Tall Fully Threaded Stem Zinc Plated |
|
| Part #?74572 |
Product DescriptionFoot,Floor Scale SST Captured Ball 1.875Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74573 |
Product DescriptionFoot,Floor Scale SST Captured Ball 2.000Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?73800 |
Product DescriptionFoot,Floor Scale SST SST Captured Ball 2.500Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74574 |
Product DescriptionFoot,Floor Scale SST Captured Ball 3.000Dia 1/2-20 UNF Thread, 3.500 Height |
|
| Part #?74575 |
Product DescriptionFoot,Floor Scale SST Captured Ball 3.000Dia 3/4-16 UNF Thread, 4.500 Height |
|
| Part #?74576 |
Product DescriptionFoot,Floor Scale SST Captured Ball 3.000Dia 1-12 UNF Thread, 4.500 Height |
|
| Part #?74577 |
Product DescriptionFoot,Floor Scale SST Captured Ball 3.000Dia 1-14 UNF Thread, 4.500 Height |
|
| Part #?92380 |
Product DescriptionFoot, Floor Scale SST Captured Ball 2.500Dia 1/2-20 UNF Thread, 3.500 Height Fully Threaded Stem |
|
| Part #?175615 |
Product DescriptionFoot, Floor Scale SST Captured Ball 3.47 DIA 1/2-20UNF x 2.62 Tall Fully Threaded Stem |
