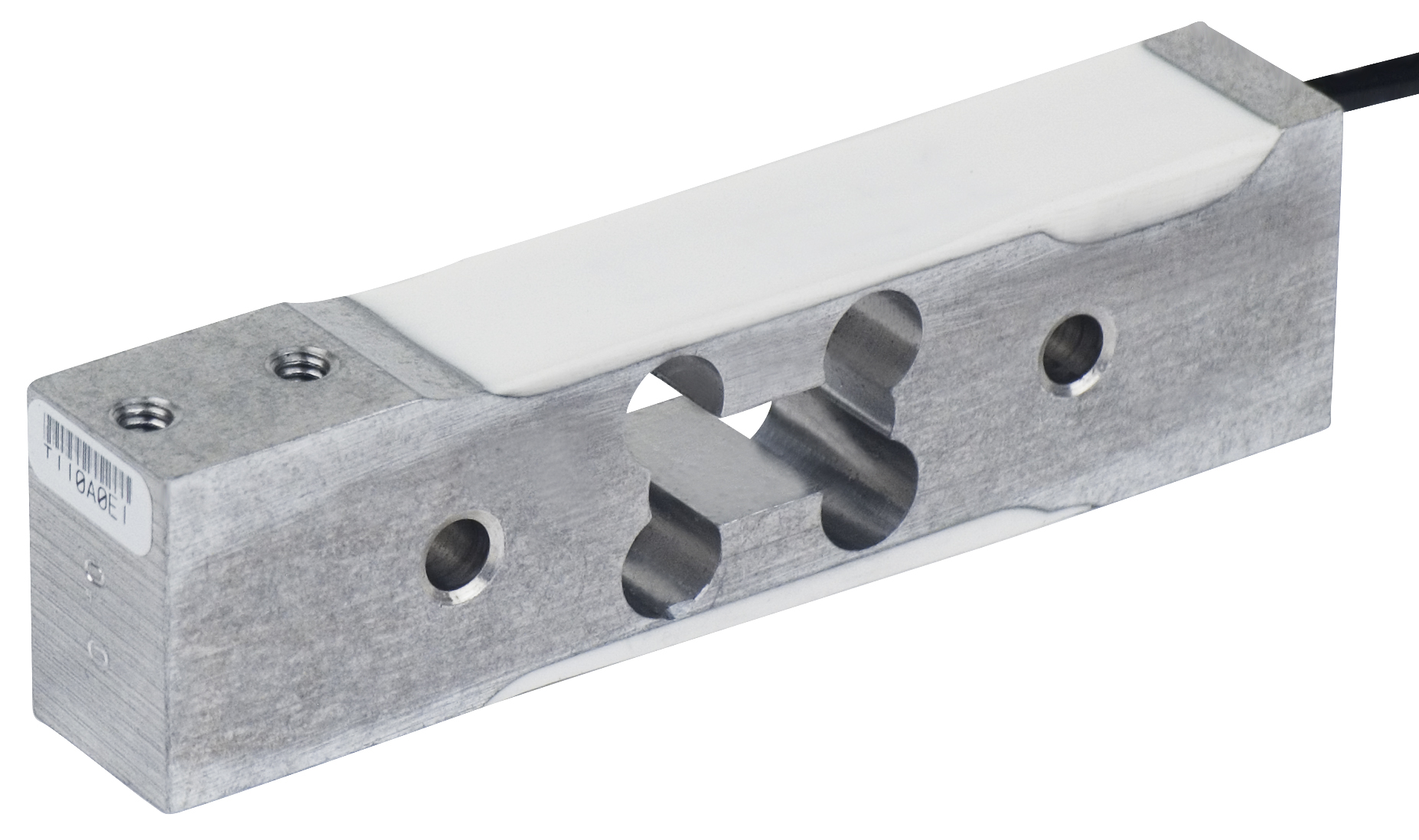

Cardinal TSP

$0.00

The model TSP light single point series load cells are high performance, low profile, single point cells for use in platform, hanging, counting, hoppers and packaging scales which can be used in a variety of applications including medical, industrial and process weighing. These single point load cells are easy to install and are interchangeable with most other load cells of their type. All critical components and wiring are encapsulated to protect against moisture and to insure stable operation in harsh environments. NTEP legal-for-trade and OIML certified. Available in capacities from 5 to 100 kg.

Download product PDF
Categories: ,

Features

  • Aluminum Construction
  • Environmentally-Sealed
  • IP65 Protection Class
  • Moisture-proof Barrier
  • NTEP Legal for Trade
  • OIML Certified
  • Precision Engineering
  • VCAP Certified

Specifications

NTEP Approval:?97-136
OIML Approval:?R60/1991-DK-97.01
Accuracy Class:?III 5S C3/C4
Rated Output:?2mV/V
Protection Class:?IP-65
Material:?Aluminum

Models



TSP-5KG Load Cell, Single Point, 5 Kg, Aluminum Alloy
TSP-7KG Load Cell, Single Point, 7 Kg, Aluminum Alloy
TSP-10KG Load Cell, Single Point, 10 Kg, Aluminum Alloy
TSP-15KG Load Cell, Single Point, 15 Kg, Aluminum Alloy
TSP-20KG Load Cell, Single Point, 20 Kg, Aluminum Alloy
TSP-30KG Load Cell, Single Point, 30 Kg, Aluminum Alloy
TSP-50KG Load Cell, Single Point, 50 Kg, Aluminum Alloy
TSP-100KG Load Cell, Single Point, 100 Kg, Aluminum Alloy
