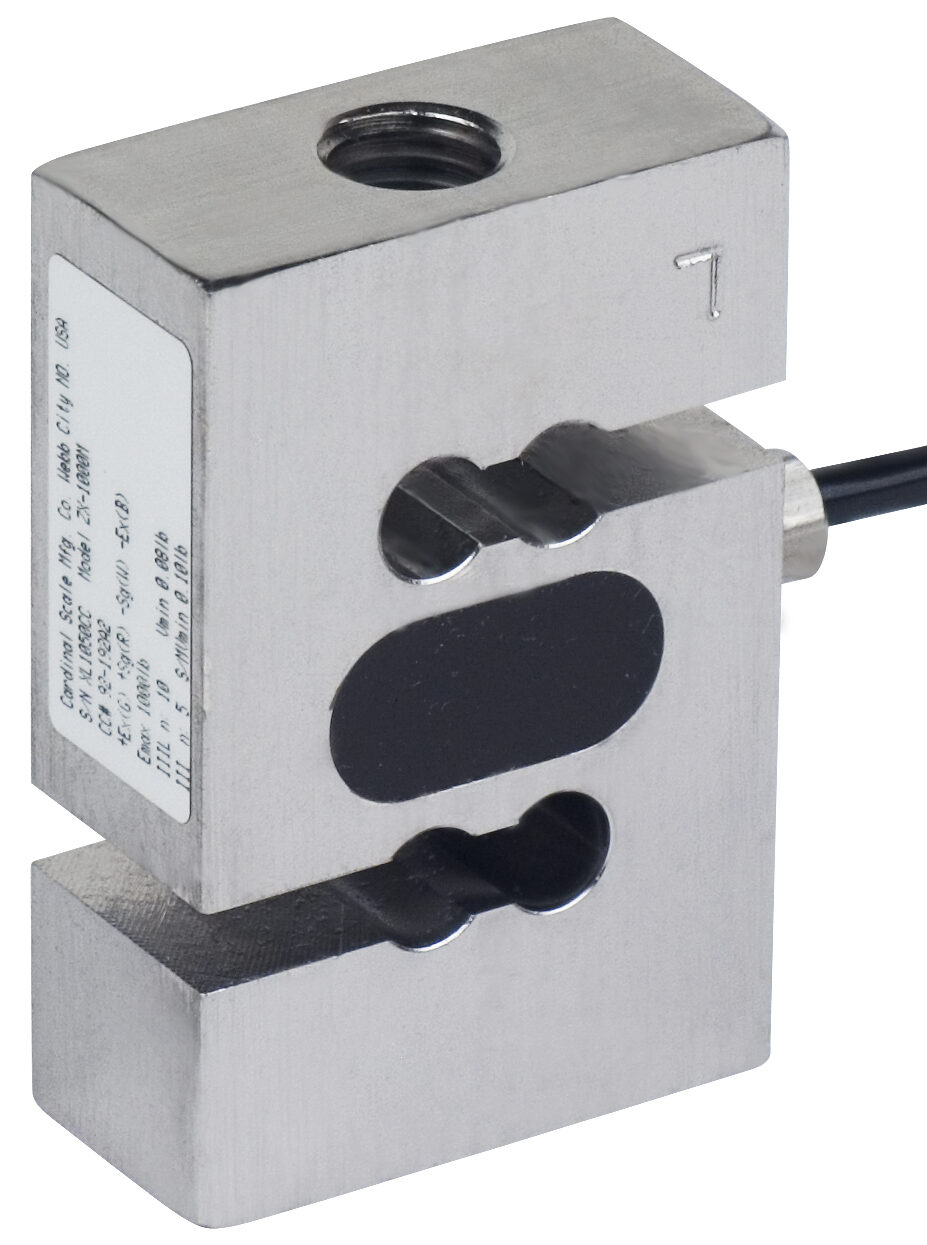

Cardinal ZX Series loadcell

$0.00

Cardinal?s stainless steel tension load cells are ideally suited for single or multiple load cell tension applications. Simplicity of design permits their use in a wide variety of configurations. The ZX250, 500 and 1000 load cells are potted with a proprietary waterproof sealant that remains flexible over the life of the load cell and protects the load cell strain gages over a broad temperature range. Load cells ZX-2500 and up have the gage cavity sealed by a welded stainless steel cup. Metric threads are available on most models. NTEP legal-for-trade certified. Available capacities range from 250 lb / 113 kg to 20,000 lb / 9072 kg.

Download product PDF
Categories: ,

Features

  • IP68 Protection Class
  • Moisture-proof Barrier
  • NTEP Legal for Trade
  • Precision Engineering
  • Stainless Steel
  • VCAP Certified

Specifications

NTEP Approval:?92-192A2
Accuracy Class:?III/IIIL
Rated Output:?3?0.1% mV/V
Cable Length:?9 m
Material:?Stainless steel
Minimum Dead Load:?4.5 kg
Safe Load Limit:?150% R.C.
Ultimate Load:?300% R.C.

Models



ZX-250 Load Cell, Tension, 250 Lb, Stainless Steel
ZX-500 Load Cell, Tension, 500 Lb, Stainless Steel
ZX-1000 Load Cell, Tension, 1000 Lb, Stainless Steel
ZX-2500 Load Cell, Tension, 2,500 Lb, Stainless Steel
ZX-3000 Load Cell, Tension, 3,000 Lb, Stainless Steel
ZX-5000 Load Cell, Tension, 5,000 Lb, Stainless Steel
ZX-10000 Load Cell, Tension, 10,000 Lb, Stainless Steel
ZX-15000 Load Cell, Tension, 15,000 Lb, Stainless Steel
ZX-20000 Load Cell, Tension, 20,000 Lb, Stainless Steel
