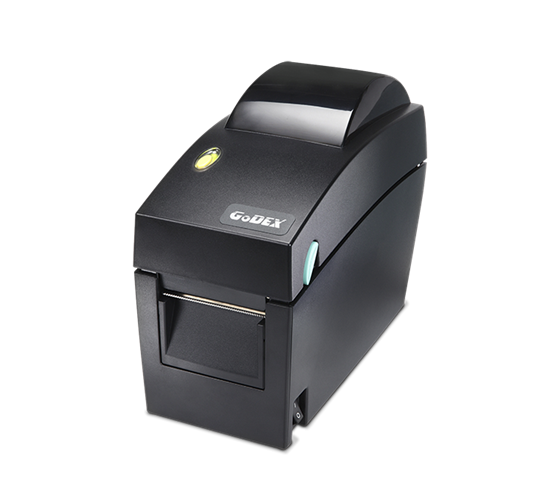

GoDEX DT2x Direct Thermal Printer

Print Speed:
Up to 7 ips

Print Length:
Minimum: 0.16 in
Maximum: 68 in

Print Width:
2.12 in

Media:
Continuous form, gap labeling, black mark sensing and punched sensing
Label roll O.D. max: 5.0 in

Real Time Clock:
Standard

Core:
1 in, 1.5 in
Thickness: 0.06 mm to 0.20 mm

Printer Language:?
GZPL or GEPL, EZ PL auto switch

Resident Fonts:?
11 resident alphanumeric fonts (included OCR A and B) are expandable eight times horizontally and vertically. All bit mapped fonts in eight orientations

Bar Codes:?
Code 39, Code 93, Code 128 (subset A, B, C,) UCC/EAN – 128 K-Mart, UCC/EAN – 128, UPC A/E (add on 2 and 5,) 2 of 5, EAN 8/13 (add on 2 and 5.) Codabar, Post Net, EAN 128, DUN 14, MaxiCode, HIBC, Plessey, Random Weight, Telepen, FIM, China Postal Code, RPS 128, PDF 417, Datamatrix code, QR Code

Dimensions:?
(L x H x W): 8.58 x 6.77 x 3.94 in
(218?x 172?x 100 mm)

Interfaces:
Baud rate 4800 to 115200; DB9
USB port U2.0 (B-type)
Ethernet (RJ-45)

Memory:
8 MB flash

Power:?
Auto switching 100/240 VAC 50/60 Hz

Environment:?
Operation: 41? F to 104? F (5? C to 40? C)
Storage: -4? F to 122? F (-20? C to 50? C)

Humidity:?
Operation: 30 to 85 % non-condensing, free air
Storage: 10 to 90 % non-condensing, free air

Approvals:?
CE (EMC), FCC Class A, CB, CUL, CCC

Warranty:?
Two-year limited warranty
