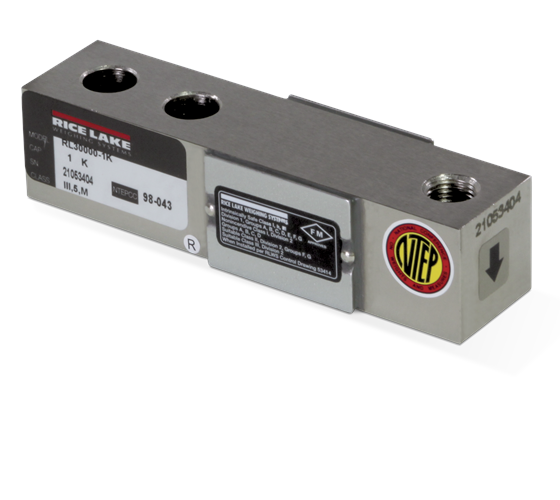

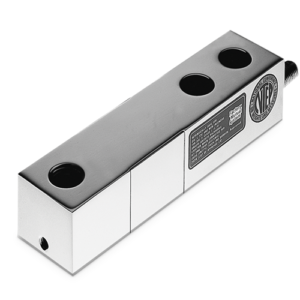

Specifications
Full Scale Output:
3.0 mV/V
Bridge Resistance:
350 ohm, nominal
Material/Finish:
High-alloy steel, nickel plated
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Safe Sideload:
100% full scale
Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C
Rated Excitation:
5-10 VDC (15 V maximum)
Nonlinearity:
0.03% Full scale
Hysteresis:
0.02% Full scale
Insulation Resistance:
5,000 megohms
Deflection at Capacity:
250 lb to 1,000 lb=0.013 in (0.33 mm)
2,000 lb to 3,000 lb=0.015 in (0.38 mm)
4,000 lb to 5,000 lb=0.025 in (0.64 mm)
10,000 lb=0.032 in (0.81 mm)
15,000 lb to 20,000 lb=0.038 in (0.97 mm)
Cable Length:
20 ft (6.1m)
Cable Diameter:
0.200 polyurethane jacket
Cable Color Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………+ Signal
White ………………….? Signal
Warranty:
Two-year limited warranty
Approvals:
cFMus Approved
NTEP (except 250lb, 500lb and 20,000lb)
