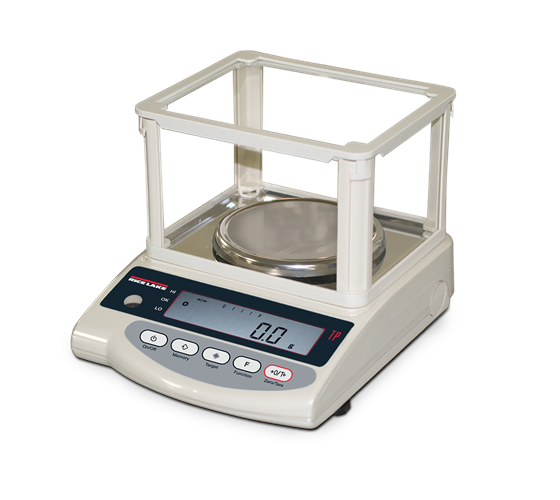

Rice Lake TP Series Tuning Fork Balance

$0.00

Rice Lake’s TP Series balances, equipped with mono-metal tuning fork sensors, bring remarkable response time and exceptional stability to any setting.

Download product PDF
Category:

Features

  • External weight calibration
  • Large, 16.5 mm-high backlit liquid crystal display (LCD)
  • Selectable modes: Weight, Unit, Count and Percentage
  • 12 units of measurement
  • Mono-metal tuning fork sensor (MMTS) provides quick response and stability
  • 20-step bar graph display
  • 115 VAC adapter included (230 VAC optional)
  • One part in 620,000 resolution
  • RS-232 bidirectional
  • Plastic housing on models <1,000 g, plastic top and die cast bottom on models >1,000 g

Specifications

TP-220^ TP-420NT^ TP-820 TP-1200NT TP-3200 TP-4200NT TP-6200NT TP-8200 TP-12K
^Weighing Chamber
*Pennyweight is not an NTEP supported unit of measurement
Part # 107244 – 107245 107246 – 107247 107248
NTEP
Part # – 108155 – 163604 – 108154 163606 – –
Capacity 220 g 420 g 820 g 1200 g 3200 g 4200 g 6200 g 8200 g 12000 g
Resolution 0.001 g 0.001 g 0.01 g 0.01 g 0.01 g 0.01 g 0.01 g 0.1 g 0.1 g
Operating Modes Counting, Percentage, Limit Function (checkweighing)
Repeatability 1 division
Linearity 1 division
Operating
Temperature		 41° F to 95° F (5° C to 35° C)
Pan Size Ø 4.6 in
(116.8 mm)		 6.6 in x 5.5 in
(167.6 x 139.7 mm)		 7 in x 6.2 in
(177.8 x 157.5 mm)
Dimensions 9.2 x 7.1 x 6.6 in
(including windshield)
(235 x 182 x 170 mm)		 9.2 x 7.1 x 2.9 in
(235 x 182 x 75 mm)		 10.1 x 7.5 x 3.4 in
(265 x 192 x 87 mm)
RS-232 Specifications Baud rate – 1200/2400/2800/9600; Data bits – 8, Connector – DIN 5-Pin
Est. Ship Weight 2.9 lb (1.3 kg) 6.2 lb (2.8 kg)
Calibration Weight 200 g 400 g 800 g 1,000 g 3,000 g 4,000 g 6,000 g 8,000 g 12,000 g
Power 120 VAC adapter
Battery Option Nickel Cadmium battery, 12-hour run time, 24 hour charge time
Approvals NTEP CC 09-002
Class II e=0.01		 NTEP CC
09-002
Class II e=0.1		 NTEP CC 09-002
Class II e=0.1
Warranty Five-year limited warranty
Return Policy Rice Lake Standard Policy
UNIT OF MEASURE
Decimal Ounce 7.7 x 0.00005 oz 14 x 0.001 oz 28 x 0.0005 oz 42 x 0.0005 110. x 0.0005 oz 140 x 0.01 oz 210 x 0.001 oz 280 x 0.005 oz 420 X 0.005 oz
Decimal Pound 0.48 x 0.00001 lb 0.92 x 0.00001 lb 1.8 x 0.00005 lb 2.6 x 0.00005 7.0 x 0.00005 lb 9.2 x 0.0001 lb 13 x 0.0001 lb 18 x 0.0005 lb 26 x 0.0005 lb
Troy Ounce 7 x 0.00005 ozt 16 x 0.0001 ozt 26 x 0.0005 ozt 38 x 0.0005 100 x 0.0005 ozt 130 x 0.001 ozt 190 x 0.001 ozt 260 x 0.005 ozt 380 x 0.005 ozt
*Pennyweight 140 x 0.001 dwt 520 x 0.01 dwt 770 x 0.01 dwt 2,000 x 0.01 dwt 2,700 x 0.01 dwt 3,900 x 0.01 dwt 5,200 x 0.1 dwt 7,700 x 0.1 dwt
Carat 1,100 x 0.01 ct 2,100 x 0.01 ct 4,100 x 0.05 ct 6,000 x 0.05 ct 160,000 x 0.05 ct 21,000 x 0.1 ct 31,000 x 0.1 ct 41,000 x 0.5 ct 60,000 x 0.5 ct
Momme 58 x 0.0005 mom 210 x 0.005 mom 320 x 0.005 mom 850 x 0.01 mom 1,100 mom 1,600 x 0.01 mom 2,100 x 0.05 mom 3,200 x 0.05 mom
Grain Unit 3,300 x 0.02 GN 6,400 x 0.02 GN 12,000 x 0.2 GN 1,200 x 0.01 GN 48,000 x 0.2 GN 64,000 x 0.2 GN 95,000 x 0.2 GN 120,000 x 2 GN 180,000 x 2 GN
Tael 5.8 x 0.00005 TL 21 x 0.0005 TL 85 x 0.001 TL 210 x 0.005 TL 320 x 0.005 TL
Tola 18 x 0.0001 to 70 x 0.001 to 100 x 0.001 to 270 x 0.001 to 530 x 0.001 to 700 x 0.01 to 1,000 x 0.01 to
Measurable Unit Weight In Counting Mode 0.03 g 0.03 g 0.03 g 0.01 g 0.3 g 0.3 g 0.01 g 3 g 3 g

Options

42168 Adapter,230 Volt EU Plug QB MB TC AND TP Series Balance
42566 Pwr Supply,Adapter 60Hz 4.5W Input 12VDC/1.0A 2.1×5.5x11mm Female Output QB MB QBG Balance QBX Counting Scale Class 2 Transformer for Model UM124 100 to 240 VAC
75351 Software,WinWedge 32 Std TAL
107237 Battery, Rechargeable TC-4200, TC-6200, TP-3200 and TP-8200, TP-12K 32 Hour Run time Nickel Cadmium, 12 hour charge time
107240 Cover,In-Use Dust Small TC or TP Balance, 220g to 1200g
107249 Battery,Rechargeable TP TP-220, TP-820
107250 Cover,In-use 2200g to 12K TC or TP Balance
107251 Manual,Operating TP Rice Lake Balance
109236 Hook,Underweighing TS & TP-220 and TP-820 Balance
109292 Hook,Underweigh 2200-12K Rice Lake, TC and TP
115303 Cable,RS-232 5-Pin DIN to DB9 Female

Models

107244 Balance,TP-220 Rice Lake 220G x 0.001G, 4.7IN Pan, 110VAC
107245 Balance,TP-820 Rice Lake 820G x 0.01G, 6.5 x 5.5 Pan, 110VAC
107246 Balance,TP-3200 Rice Lake, 3200G x 0.01G, 7.0 x 6.2IN Pan, 110VAC
107247 Balance,TP-8200 Rice Lake, 8200G x 0.1G, 7.0 x 6.2IN Pan, 110VAC
107248 Balance,TP-12K Rice Lake 12000G x 0.1G, 7.0 x 6.2IN Pan, 110VAC
