VPG Celtron CLB Alloy Steel, Double-Ended Beam Load Cell

$0.00

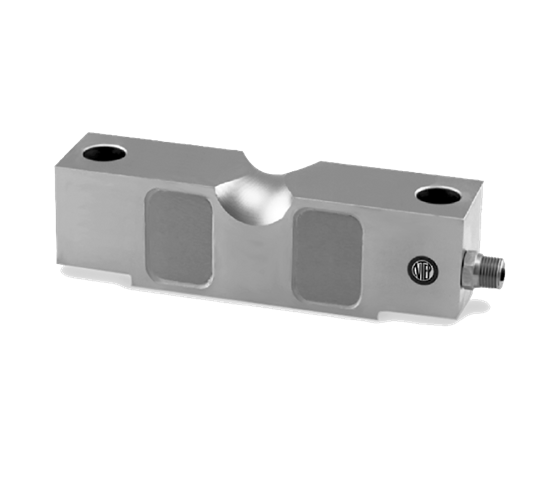

The VPG Celtron CLB is an alloy steel, nickel-plated, double-ended beam that is ideal for applications in truck, track, tank and hopper applications. This product is of the center-loaded design, and is compatible with both the MVS and TSA mounting assemblies. Available in capacities ranging from 20,000 lb to 125,000 lb (9,071.9 kg to 56,700.0 kg), with all units being provided with 35 ft (10.6 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14°F to 104°F (-10° C to 40° C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.025%

Insulation Resistance:
5,000 megohms

Cable Length:
35 ft (10.6 m)

Cable Diameter:
0.200 polyurethane jacket (20,000 lb-25,000 lb)
0.305 polyurethane jacket (40,000 lb-125,000 lb)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited warranty

Approvals:
cFMus
NTEP

Models

46675 Load Cell,DEB CLB-20K 20000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46676 Load Cell,DEB CLB-25K 25000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46677 Load Cell,DEB CLB-40K 40000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46678 Load Cell,DEB CLB-50K 50000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46679 Load Cell,DEB CLB-60K 60000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46680 Load Cell,DEB CLB-75K 75000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46681 Load Cell,DEB CLB-100K 100000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
46682 Load Cell,DEB CLB-125K 125000lb 35ft Celtron 3mV/V 700 Ohm WW NTEP IIIL 10M FM IP67
