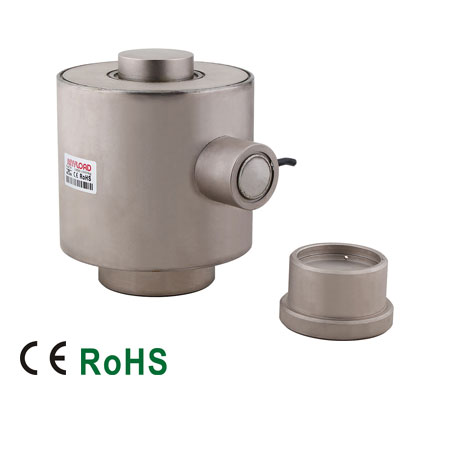

106BH Canister Load Cell

$0.00

  • Material: Alloy steel
  • Rated Capacities: 100t, 200t, 500t
  • Full Scale Output: 2mV/V ± 20%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
Download product PDF
Categories: ,

Specifications

Rated Capacity 100t, 200t, 500t
Full Scale Output 2mV/V ± 20%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.050%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.030%
Creep in 30 minutes < ± 0.023%
Input Resistance 770Ω ± 30Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0023% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range 30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP67
