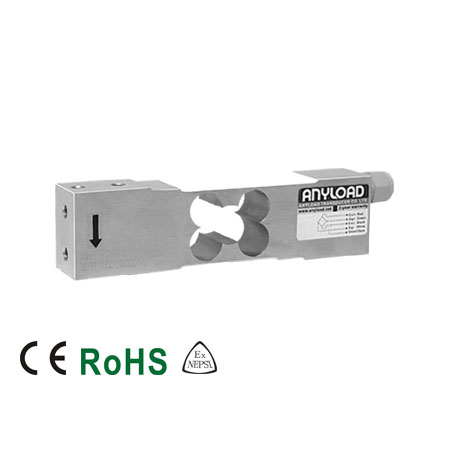

108TS Single Point Load Cell

$0.00

  • Material: Stainless steel
  • Thread: Metric
  • Rated Capacities: 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified
Download product PDF
Categories: ,

Features

Cardinal……………………………………………………..TSSP*
FLINTEC………………………………………..PC1 (30-100kg)
HBM…………………………………………………………PW15A
Vishay Tedea-Huntleigh……………………………………1142

HBM…………………………………………………………..PW15
Rice Lake………………………………………………….RL1140
Rice Lake……………………………………………….RL1385**
Vishay Tedea-Huntleigh ……………………………………1140
* The mounting hole TSSP is of M10
** RL1385 comes with 3 mounting holes, 108TSUN comes with 2
mounting holes which match the outer 2 mounting holes of RL1385

Specifications

Rated Capacity 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
Reference Max. Platform Size 450mm x 500mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range –10°C to 40°C/14°F to 104°F
Service Temperature Range –18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
