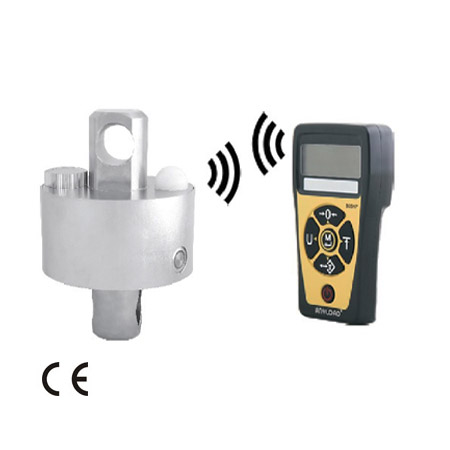

110ES-WL-HP Salt Waterproof Wireless Tension Link
$0.00
- Enclosure Material: Stainless steel casting
- Accuracy: 1:5000 maximum divisions
- Capacities: 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t
- Safe Overload: 200% of full scale
- Breaking Overload: 400% of full scale
- IP Rating: IP68/IP69K
- Frequencies: 433 Mhz, 915 Mhz
- Transmission range is up to 30m without obstruction
- Salt water proof power switch with indicating light
- Salt water proof battery cap
- Antenna protected by silicon enclosure
- Indicator (805HP-WL) and Shackles are sold separately
Download product PDF
Specifications
| Capacity |
1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t |
| Division 1t-10t |
1:5000 |
| Division 20t |
1:4000 |
| Division 30t |
1:3000 |
| Division 50t-100t |
1:5000 |
| Enclosure Material |
Stainless steel casting |
| Working Temperature |
-10°C to 40°C/14°F to 104°F |
| Safe Overload |
200% of full scale |
| Breaking Overload |
400% of full scale |
| Rechargeable battery |
3 x AA Alkaline batteries |
| Transmission Range |
Up to 30m without obstruction |
| Operation Time |
Up to 100 hours on 20°C at the lowest power set up |
| IP Rating |
IP68/69K |
