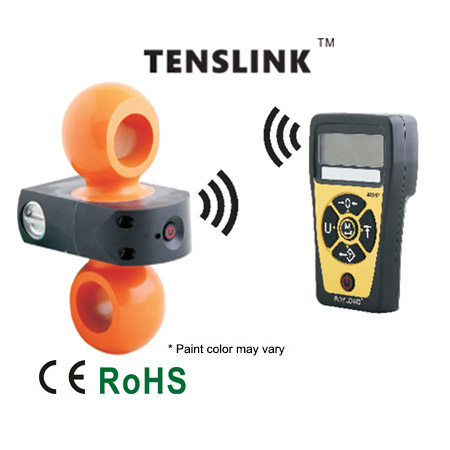

110RH-WL, 805HP-WL TENSLINK Wireless Tension Link or Dynamometer

$0.00

  • Material: Alloy Steel, Powder Coating
  • Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t
  • Breaking Overload: 500% of full scale
  • Safe Overload: 200% of full scale
  • Wireless Distance (adjustible): Up to 30m(Power 1.26mW), Up to 40m(Power 1.56mW), Up to 55m(Power 3.13mW),Up to 75m(Power 6.25mW) – All distances stated are if no obstruction
  • Operation Time: Up to 100 hrs. on 20°C at the lowest power set up
  • IP Rating: IP67
  • Tare Range : 100% Full Scale
  • Indicator Enclosure Material : ABS
  • Units of Measurement : kg, g, t, lb,Klb, N, kN, oz,
    user-defined unit
  • Display Type:LCD with backlight
  • Indicator IP Rating: IP65
Download product PDF
Categories: ,

Specifications

Rated Capacity 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t
Enclosure Alloy Steel, Powder Coating
Safe Overload 200% of full scale
Breaking Overload 500% of full scale
Wireless Distance
(adjustable)		 Up to 30m (Power 1.26mW), Up to 40m (Power 1.56mW), Up to 55m (Power 3.13mW), Up to 75m (Power 6.25mW)- All distances stated are if no obstruction
Operation Time Up to 100 hours
Battery Type 3×AA Alkaline batteries
Operating Temperature -10°C to 50°C / 14°F to 122°F
IP Rating IP67
