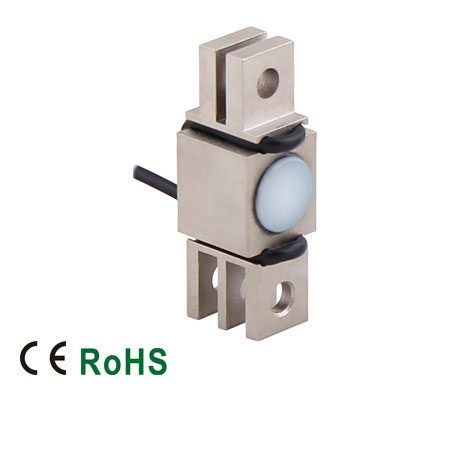

110ZHBL Tension Link Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 1.5t, 2.5t, 2.5Klb
- Full Scale Output: 1.5mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 400% of full scale
- IP Rating: IP67
- CE and RoHS certified
- To go with leaf chain BL534 or BL634 for forklift truck weighing
Download product PDF
Specifications
| Rated Capacity |
1.5t, 2.5t, 2.5Klb |
| Full Scale Output |
1.5mV/V ± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.4% |
| Repeatability |
< ± 0.05% |
| Hysteresis Error |
< ± 0.1% |
| Creep in 30 minutes |
< ± 0.05% |
| Input Resistance |
1200Ω ±60Ω |
| Output Resistance |
1000Ω ± 5Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.02% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.01% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
-30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Nominal Temperature Range (°C) |
–10°C to 40°C |
| Nominal Temperature Range (°F) |
14°F to 104°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
400% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
