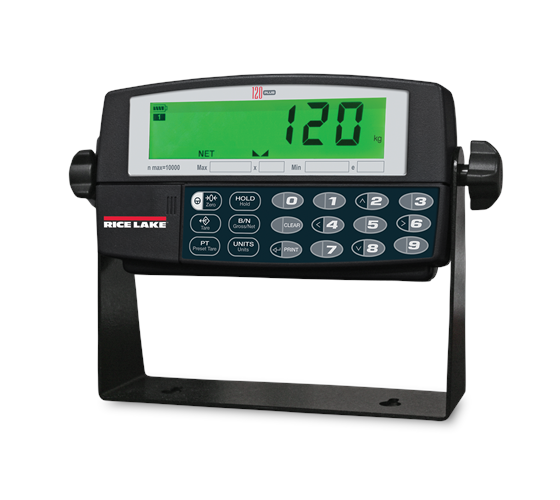

120 Plus Digital Weight Indicator

$0.00

The 120 Plus digital weight Indicator provides plenty of function for everyday weighing, from offices to bench tops and other dry work environments.

Download product PDF
Category:

Features

  • LCD display, 0.8 in (20.3 mm) six-digit, seven-segment
  • Internal rechargeable lithium battery and wall adapter
  • Power save feature for 700 hours of battery life
  • Ten stored tare values
  • Display hold (based on three second average)
  • Time and date
  • Configurable with Revolution software

Specifications

Power:
120/120 Plus:
Line voltages: 115 or 230 VAC
Frequency: 50 or 60 Hz
120 Plus:?(estimated battery life)
60 hours with 1 x 350?, 40 hours with 4 x 350?
Charge time eight hours

Excitation Voltage:
5 VDC, 4 x 350? or 8 x 700? load cells

Analog Signal Input Range:
-0.6 mV/V – 3.0 mV/V

Analog Signal Sensitivity:
0.3 ?V/graduation minimum,
1.5 ?V/grad recommended

A/D Sample Rate:
120:?3 to 30 Hz, software selectable
120 Plus:?30 Hz

Resolution:
Internal: 1 million internal graduations
Display: 10,000 displayed graduations

System Linearity / PI Rating:
Within 0.01% of full scale

Circuit Protection:
RFI, EMI, ESD protected

Load Cell Connection:
Cord grip entry
Detachable plug (optional)

Serial Output:
EDP port: Full duplex RS-232
Printer port: Output-only RS-232 or active 20mA current loop
Both ports: 9600, 4800, 2400, 1200, 600, 300bps;
Seven or eight data bits; even, odd or no parity

Status Annunciators:
120/120 Plus:?Center of zero, stand still, gross, net, lb, kg, oz, g
120 Plus:?Battery, setpoint 1 and 2, Hold

Display:
120:?0.8 in (20 mm), six-digit red light emitting diode
(LED) display, seven-segment digits
120 Plus:?0.8 in (20 mm) six-digit LCD with backlight,
seven-segment digits

Keys/Buttons:
120:?Five-key flat membrane panel, tactile feel
120 Plus:?Zero, tare, preset tare, hold, gross/net, units, numeric 0-9, clear, enter/print

(Optional) Digital I/O:
120 Plus:?Requires option card
24 volt source
Three digital inputs
Two digital outputs

Temperature Range:
Certified: 14?F to 104?F (-10?C to 40?C)
Operating: 14?F to 122?F (-10?C to 50?C)

Rating/Material:
Enclosure: heavy gauge ABS

Weight:
2.6 lb (1.2 kg)

Warranty:
One-year limited warranty

Approvals:
NTEP CC 03-059, Class III/IIIL 10,000d
Measurement Canada AM-5517, Class III/IIIHD 10,000d
EU Test Certificate TC7028 (120) Class III, 10,000d
EU Test Certificate TC7626 (120 Plus) Class III, 10,000d
CE marked

Options

93205 Load Cell Connector with 6 meter Pig Tail Load Cell Cable for 120 Indicator
82505 Connector,6-Pin Socket FEM, Shielded with Threaded Nut
103507 Ind Opt,Load Cell Plug External Disconnect for 120 Indicator, includes locknut & washer
107620 Ind OPT,Digital I/O Card for 120 Plus.
105670 Connector, 15-pin HDB-SUB 120 plus (Connector with gray housing)
106705 Cable, I/O Interface for 120 Plus, 15-pin D-SUB HD Connector with Blunt End, 2 meter cable length
105914 LIT,Manual 120 Plus 120 Plus Installation Manual
77925 LIT,CDRevolution III Revolution Software, Indicator Manuals
