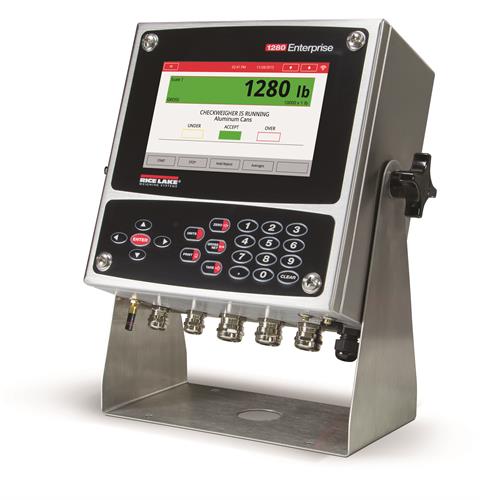

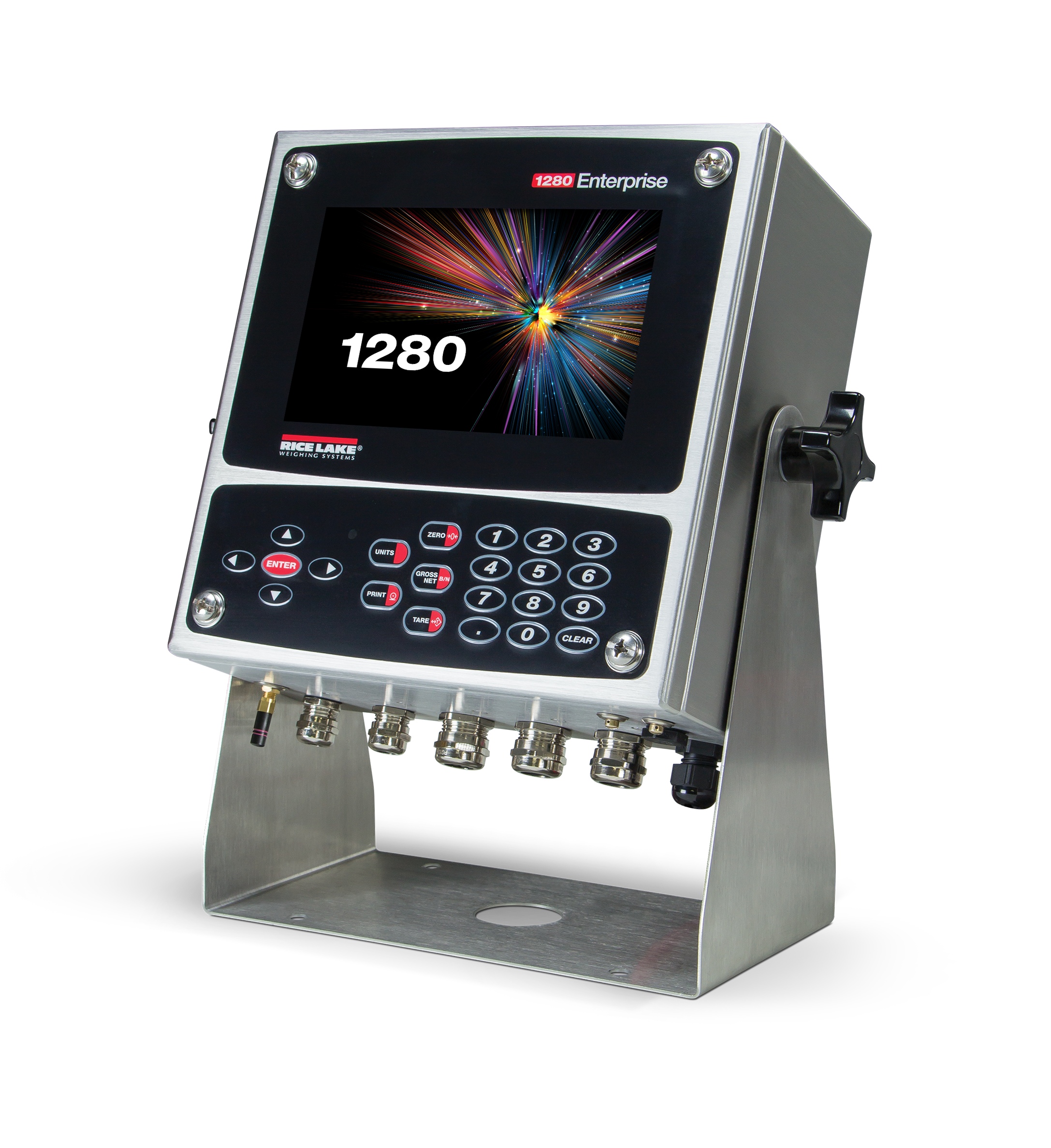

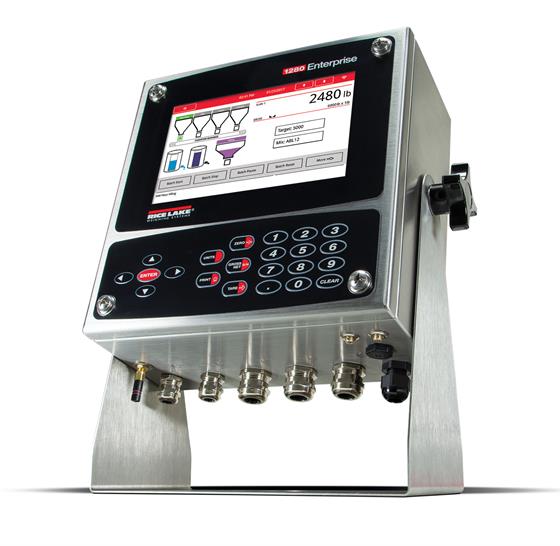

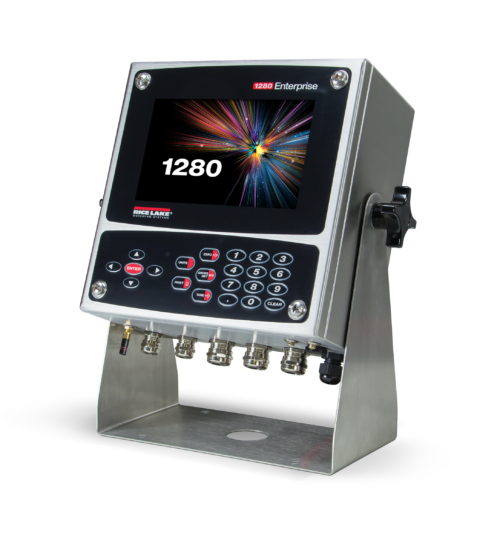

1280 Enterprise™ Series Programmable Weight Indicator and Controller

$0.00

Unlimited Control. Infinite Possibilities.

The 1280 Enterprise™ Series programmable indicator is an innovative powerhouse, delivering uncompromising speed for today’s operations and expansive options for tomorrow’s requirements. More than 150 built-in functions simplify programming, and custom applications are accomplished with Rice Lake’s iRite® software. A leap forward in technology, the 1280 empowers your operation with limitless programmability. A highly customizable graphical user interface, the ability to power up to eight scales, and a lightning-fast Freescale i.MX6 processor take multitasking to the next level.

The definitive solution for complete business systems integration, the 1280 incorporates a durable color touchscreen with a seven-inch LCD display, empowering operators to control functions without sacrificing time or safety. Program multiple screens with customizable widgets and softkeys to create an interface designed for your own process.

The 1280 is a dynamic instrument for the growth of any enterprise, and is designed to withstand even the harshest environments. Built with industrial-grade components and stainless steel NEMA Type 4X enclosures, the 1280 features IP69K protection for universal and panel mounts. Seamlessly integrate the 1280 with existing equipment. With a built-in web server, Ethernet TCP/IP, Wi-Fi, USB, Bluetooth® and RS-232/485, you may never need to add an option card; however the 1280 is easily expandable with up to six smart option cards.

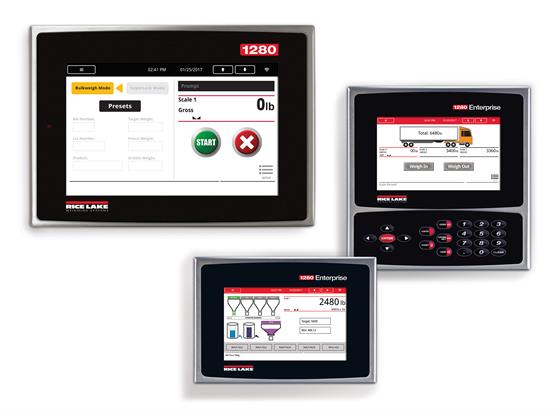

Up to 99 individual pages/screens can be designed and stored within the 1280. Multiple widgets placed on each screen gives you the ability to design a custom interface for virtually any application. Use the included truck in/out program to optimize functionality and screen design for truck scale applications with traffic-light control.

Download product PDF

Features

  • Seven-inch, 800 x 480 pixel, graphical color display that adjusts for ambient light conditions
  • Twelve-inch, 1280 x 800 pixel, graphical color display that adjusts for ambient light conditions
  • Highly customizable graphical user interface

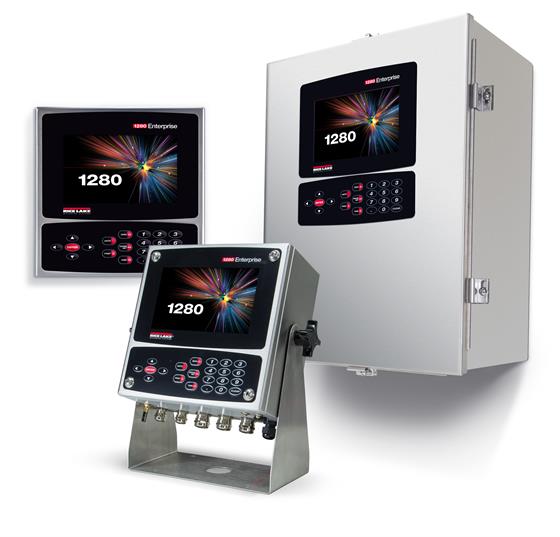

  • Three different enclosure types: universal with tilt stand, panel mount and wall mount
  • Resistive color touchscreen that can be used with gloves
  • On-screen keyboard available during entry mode or use an external keyboard
  • Multi-language operation and text entry
  • Keypad for scale operations, numeric entry and navigation
  • More than 150 built-in functions for programming
  • Customize applications and data tables with iRite™ software
  • Built-in web server for remote access, systems integration and data monitoring
  • Up to eight scales supporting five scale types:
    • Analog load cell scales
    • Total scales
    • Serial scales
    • Program scales
    • iQUBE2 scales
  • Multi-range/interval weighing functions
  • Eight digital I/O for control and pulse count
  • 100 setpoints, 18 configurable setpoint types
  • 22 softkeys with 10 user-defined
  • Two RS-232 and RS-485 serial ports
  • USB, Ethernet TCP/IP, Wi-Fi Direct(r) and Bluetooth® ports

Specifications

Power:
AC voltages: 100-240 VAC; 50-60 Hz
DC voltages: 11-30 VDC
Consumption: 60 W

Excitation Voltage:
10 ± 0.5 VDC
16 x 350Ω or 16 x 700Ω load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz–120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000
Display: 9,999,999

System Linearity
± 0.01% full scale

Digital I/O:
Eight I/O channels on CPU board; optional serial ports:
24-channel I/O expansion boards available

Communication Ports:
Port 1 & 2: Full duplex RS-232 with CTS/RTS,
RS-422/485
Baud Rate: 1200 to 115200
Port 3: USB 2.0 Device (Micro)
Port 4: Bluetooth® SPP 2.1+EDR, Standards 4Mbaud
USB Host: (2) Type A Connectors max 500 mA
Ethernet: Wired 10/100 Auto-MDX
Ethernet: Wireless 802.11 b/g/n 2.4GHz

Onboard:
Selectable filters: Three stage, Adaptive or Damping
Embedded Linux® OS
8 GB eMMC (system use)
1 GB DDR3 RAM
460 MB onboard database (SQLite) storage
Up to 32 GB micro SD card (sold separately)

Display:
Seven-inch, 800 x 480 pixel, graphical color TFT display 500 or 1,000 NIT
Twelve-inch, 1280 x 800 pixel, graphical color TFT display 1,500 NIT

Keys/Buttons:
22-key membrane panel, tactile buttons, on-screen keyboard
for text and numeric entry, USB port for flash drive, keyboard and printer

Temperature Range:
Certified: 14°F to 104°F (-10°C to 40˚C)
Operating: -4°F to 131°F (-20°C to 55˚C)

Weight:
Universal enclosure: 11 lb (4.9 kg)
Panel mount enclosure: 8 lb (3.6 kg)
Wall mount enclosure: 23 lb (10.4 kg)
Panel mount 7 in touch-only enclosure: 7 lb (3.1 kg)
Panel mount 12 in touch-only enclosure: 10 lb (4.5 kg)

Rating/Material:
IP66 stainless steel wall enclosure
IP69K stainless steel universal and panel mount door

Warranty:
Two-year limited warranty

EMC Immunity:
EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, and 11

Approvals:
NTEP CC 15-00/Class III/IIIL 10,000d
Measurement Canada AM-5980C,
Class III/III HD 10,000d
OIML R76/2006-NL1-16.04 Class III/IIII 10,000d
EU Test Certificate TC8596
UL/cUL Listed (universal)
UL/cUL Recognized (panel mount)
CE Marked

Options

Six option slots that support:

  • A/D scale channels
  • Analog Input/Thermocouple
  • Digital input and outputs
  • Analog outputs
  • Serial ports
  • Four channel dry-contact relay
  • Various protocol interfaces

Models

  • Universal Enclosure
171427 1280 Univ Single AC-US Enclosure Universal AC Power Supply U.S. Universal Power Cord Display Type Standard Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
171441 1280 Univ Single AC-Eur Enclosure Universal AC Power Supply Europe Universal Power Cord Display Type Standard Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
171662 1280 Univ Dual AC-US Enclosure Universal AC Power Supply U.S. Universal Power Cord Display Type Standard Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
172188 1280 Univ Dual AC-Eur Enclosure Universal AC Power Supply Europe Universal Power Cord Display Type Standard Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
  • Panel Mount Enclosure
171663 1280 Panel Single AC Enclosure Panel Mount AC Power Supply No Power Cord Supplied Display Type Standard Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
172186 1280 Panel Dual AC Enclosure Panel Mount AC Power Supply No Power Cord Supplied Display Type Standard Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
  • Wall Mount Enclosure
173673 1280 Wall Single AC-US Enclosure Wall Mount AC Power Supply U.S. Wall Mount Power Cord Display Type Standard Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
174143 1280 Wall Single AC-Eur Enclosure Wall Mount AC Power Supply Europe Wall Mount Power Cord Display Type Standard Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
174144 1280 Wall Dual AC-US Enclosure Wall Mount AC Power Supply U.S. Wall Mount Power Cord Display Type Standard Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
174145 1280 Wall Dual AC-Eur Enclosure Wall Mount AC Power Supply Europe Wall Mount Power Cord Display Type Standard Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
172184 1280 Wall Single AC-US Enclosure Wall Mount AC Power Supply U.S. Wall Mount Power Cord Display Type High Visibility Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
172185 1280 Wall Single AC-Eur Enclosure Wall Mount AC Power Supply Europe Wall Mount Power Cord Display Type High Visibility Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
173806 1280 Wall Dual AC-US Enclosure Wall Mount AC Power Supply U.S. Wall Mount Power Cord Display Type High Visibility Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
172187 1280 Wall Dual AC-Eur Enclosure Wall Mount AC Power Supply Europe Wall Mount Power Cord Display Type High Visibility Slot 1 Dual A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
  • Touch-only 12 inch
186465 1280 Panel 12 KL Single AC Enclosure Panel Keyless 12″ AC Power Supply No Power Cord Supplied Display Type High Visibility Slot 1 Single A/D Slot 2 Open Slot 3 Open Slot 4 Open Slot 5 Open Slot 6 Open
