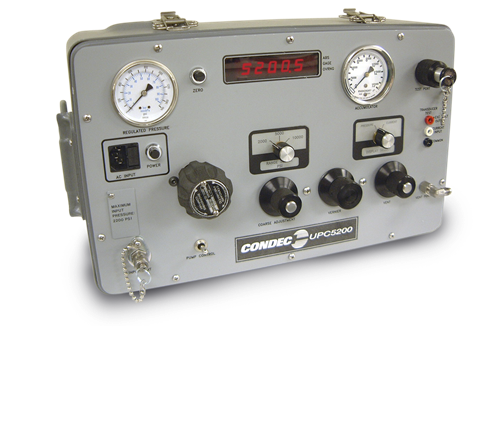

UPC5200/UPC5210 High Pressure Calibration Standard

$0.00

Providing sophisticated performance in high-pressure applications, the durable UPC5200 high-pressure calibration standard is the most effective digital pressure calibration standard in its class.

The UPC5200 high-pressure calibration standard excels in applications presenting pressure levels up to 10,000 psi. Featuring automatic pushbutton calibration, this unit guarantees 0.05% accuracy in three switch-selectable ranges. The exclusive patented precision pressure Orion 3A vernier provides infinite control to obtain exact pressure readings, while a reliable overpressure regulator protects units under test from permanent damage.

The fully-pneumatic UPC5200 high-pressure digital calibration standard is powered by nitrogen and eliminates the mess and oil thermal equilibrium problems common to hand pump hydraulic systems. Clean operation makes this calibrator ideal for use in aerospace, food and beverage and general industry. The UPC5200 high-pressure calibration standard is easy to operate and training can be accomplished in as little as 10 minutes. Different technicians can calibrate the same transmitter and get identical results…every time.

For special high-pressure applications, the portable UPC5200 or 19-inch rack-mount UPC5210 provides the ultimate in dependable, high-precision performance.

Download product PDF

Features

  • Available in enclosure with carrying handles (UPC5200)
  • Two sets of ranges to choose from: 10,000/5,000/2,000 psi and 5,000/2,500/1000 psi
  • Three independent selectable ranges in each instrument
  • ±0.05% F.S. accuracy of each independent selectable range
  • Available with Light Emitting Diode (LED) or Liquid Crystal Display (LCD)
  • Pressure display resolution 0.02% F.S. typical for each range
  • Different technicians can calibrate the same Device-Under-Test and get identical results
  • Electronically controlled 10:1 intensifier system
  • Easy to operate, training can be accomplished in 10 minutes
  • Easy to carry; approximately 51 lb
  • Adjustable overpressure protection above input pressure
  • Precision pressure vernier control
  • Voltage/current display mode for transducer testing
  • 32 VDC excitation output
  • Non-destructible, finger tip control micrometering valves for pressure control
  • Automatic pushbutton calibration, microprocessor controlled and maintained
  • Quick-disconnect fitting and hose included
  • Pneumatic only; no hydraulics or distilled water messes
  • Calibration certificate included; traceable to the National Institute of Standards and Technology(NIST)

Applications

  • Any high-pressure, pneumatic-only application
  • Initial test of high-pressure hydraulic systems
  • Boiler feed pressure for power plants

Specifications

Available Calibration Modes:
Gauge

Overall accuracy:
±0.05% F.S. maximum. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature.

Power:
115 or 230 VAC 50/60 Hz

Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing

Pressure Media:
Clean dry gaseous nitrogen, standard

Regulated Pressure Gauge:
Size: Two and one half-inch diameter
Range: 0-1500

Pressure Media Filter:
Rating: 7 microns, nominal
Type: Field replaceable filter cartridge contained within a stainless steel outer case

Control Valves:
Type: Micro-metering with positive shut off, adjustable stop and replaceable seat, non-destructible
Material: 300 series stainless steel outer body

Internal Piping:
Tubing: 1/4 in. O.D. and 1/8 in. O.D., 300 series stainless steel, seamless
Couplings: 300 series stainless steel Swagelok®

Output Test Port:
Style: Quick-disconnect type
Pressure Rating: 10,000 psig minimum, connected or disconnected

Pressure Hoses:
Quantity supplied: Two; one input and one output
Length: 4 feet, nominal

Vernier Control:
Vernier Volume: 0.4 cubic inch, nominal
Vernier Mechanical Rotation: 15 turns, nominal
Adjustable Sensitivity: 0.005 psi, minimum

Booster Pump Solenoid Valve:
Type: Three-way, normally closed, electronically controlled
Pressure Rating: 1500 psig
Power Requirements: 115 or 230 VAC, 50/60 Hz, 10 watts

Accumulator Gauge:
Size: Two and one half-inch diameter
Range: 0-15,000 psi

Input Pressure Regulator:
Pressure Rating: 3000 psig maximum
Output Pressure Range: 0-1000 psi
Construction: Self-relieving, single stage regulator

UPC5200 Internal Pressure Sensor:
Type: Bonded, metal foil strain gauge or equal
Sensitivity: 3 mV/V, nominal
Construction: Completely weld sealed stainless steel outer body and pressure cavity

External Carrying Case:
Type: Deep-drawn aluminum case with cover and carrying handles
Material Thickness: 0.090 in. nominal
Finish: Grey polyurethane baked-enamel paint, textured finish

Current Display:
0-20.000 mA counting by 0.005 mA

Weight:
UPC5200: 51 lb (23.1 kg) including all hoses and cables
