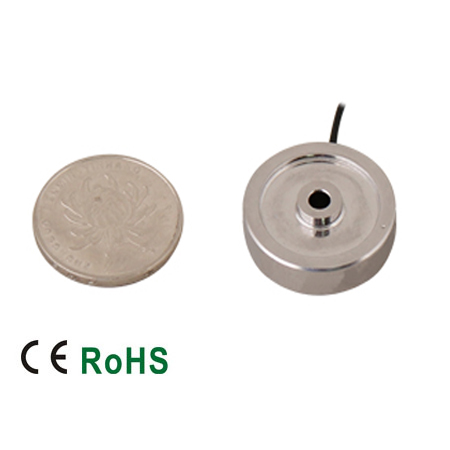

296AS Load Button
$0.00
- Material: Stainless steel
- Rated Capacities: 50N, 100N, 500N, 5kN, 20kN, 50kN, 100kN
- Full Scale Output: Cap. ≤ 50N: 1.0mV/V ± 20%; Cap. > 50N: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
Download product PDF
Specifications
| Rated Capacity |
50N, 100N, 500N, 5kN, 20kN, 50kN, 100kN |
| Full Scale Output |
Cap. ≤ 50N: 1.0mV/V ± 20%; Cap. > 50N: 2.0mV/V ± 20% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.5% |
| Repeatability |
< ± 0.5% |
| Hysteresis Error |
< ± 0.5% |
| Creep in 30 minutes |
< ± 0.5% |
| Input Resistance |
700Ω ±25Ω |
| Output Resistance |
700Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Nominal Temperature Range |
-10°C to 40°C/14°F to 104°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP66 |
