Specifications
Load Cell Excitation:
3.0 VDC at 87.5 ?
4.6 VDC at 700 ?
Load Cell Current:
34 mA (4 x 350 ? load cells) or (8 x 700 ? load cells)
Load Cell Cabling:
Four- and six-wire with remote sensing (recommended)
Analog Signal Input Range:
0.6 mV/V – 4.0 mV/V
Analog Signal Sensitivity:
0.2 ?V/graduation minimum
1.5 ?V/graduation recommended
Conversion Rate:?
60 updates/second
Resolution:
10,000 displayed graduations (NTEP Certified),
100,000 expanded
The maximum number of allowed graduations will vary by application
Display Increments:
1, 2, 5

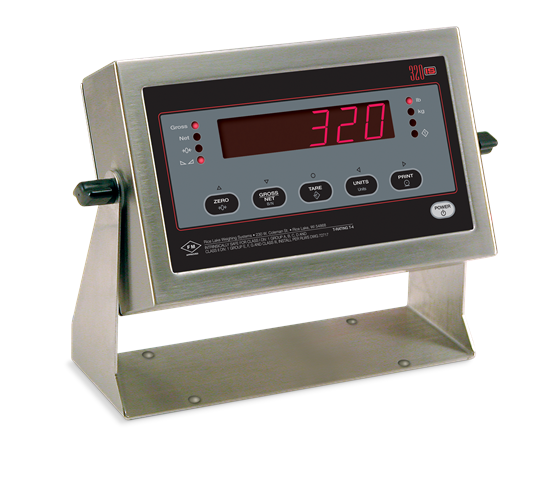

Display:
Six-digits, Light Emitting Diode (LED);
16-segment, 0.8 in (20 mm) digits
Decimal Point: ?
Configurable with dead zeros
Unit Switching:
Configurable for 2?units of measurement with front panel operation with
conversion for tare and setpoint values
Front Panel Control Switches:
Zero, gross/net, tare, print, units conv
Front Panel:
Six-button flat membrane panel
Front Panel LED Annunciators:
Center zero, gross, net, motion, lb, kg, oz, g
Motion Band:
Configurable to ?1 or ?3 graduations, 1 second delay (or Off)
Power Input:
5.8 – 7.9 VDC,100 – 175 mA
Maximum power consumption 0.25 watts
Operating Temperature:
14?F to 104?F (-10?C to 40?C) legal?for trade
Rating/Material:
Stainless steel NEMA Type 4X/IP66 enclosure

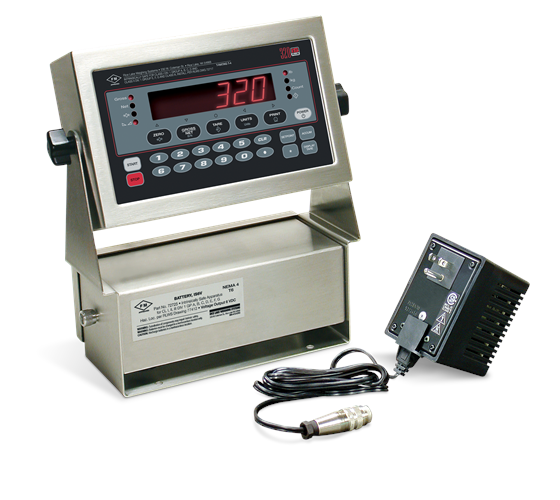

Optional Battery:
Operating times: 4 x 350 ? = 35-40 hrs
1 x 350 ? =40-50 hrs
8 x 700 ? = 35-40 hrs
Charging Times: 10 hours for dead battery,
14 hours for initial charge
Weight:
6.1 lb (2.8 kg)
Warranty:
One-year limited warranty
Approvals:
NTEP CC 03-078 Class III/IIIL 10,000d
UL/cUL Listed
FM Entity
Measurement Canada AM-5560
