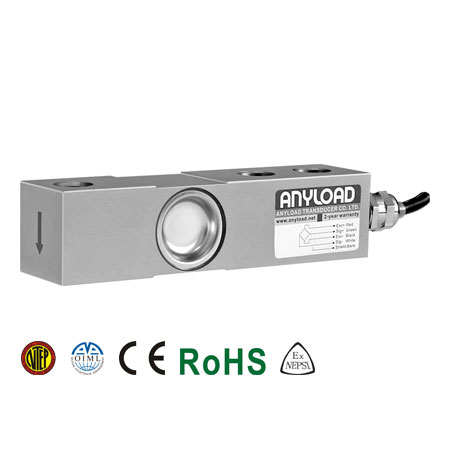

563YH Single Ended Beam Load Cell
$0.00
- Material: Alloy steel
- Rated Capacities: 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t
- Full Scale Output: 3mV/V± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA C4, Y=15 000 certified from 500kg-2.5t
- OIML C3 certified from 3t-10t
- CE, RoHS and Ex certified
- Measurement Ukraine certified
Download product PDF
Specifications
| Rated Capacity |
100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t |
| Full Scale Output |
3mV/V± 0.25% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
400Ω ± 20Ω for kg or 350Ω ± 7Ω for lb |
| Output Resistance |
350Ω ± 3Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Service Temperature Range |
–30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
