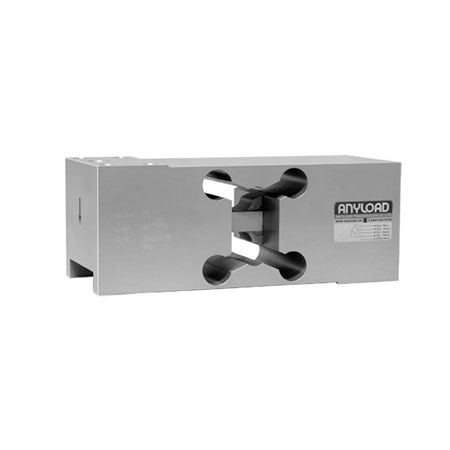

651BAUN Single Point Load Cell
$0.00
- Material: Aluminum
- Thread: Imperial
- Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
Download product PDF
Features
INTERCHANGEABLE PRODUCTS
ANYLOAD………………………………………………108UAUN
Coti Global………………………………………………….CG-50
FLINTEC……………………………………………………..PCB*
HBM…………………………………………………………PW12B
HBM…………………………………………………………..PW12
Rice Lake………………………………………………….RL1250
Vishay Celtron………………………………………………..LOC
Vishay Revere Transducers ………………………………..652
Vishay Sensortronics……………………………………..60060
Vishay Tedea-Huntleigh……………………………………1250
* Flintec PCB is of stainless steel construction, hermetically sealed
Specifications
| Rated Capacity |
50kg, 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t |
| Reference Max. Platform Size |
750mm x 750mm |
| Full Scale Output |
2mV/V ± 10% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.017% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.017% |
| Creep in 30 minutes |
< ± 0.023% |
| Input Resistance |
415Ω ± 15Ω |
| Output Resistance |
350Ω ± 3Ω |
| Rated Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Temperature Effect on Sensitivity |
< ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance |
< ± 0.0040% of Cn/k |
| Nominal Temperature Range |
–10°C to 40°C/14°F to 104°F |
| Service Temperature Range |
–18°C to 65°C/0°F to 149°F |
| Storage Temperature Range |
-50°C to 85°C/-58°F to 185°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP67 |
