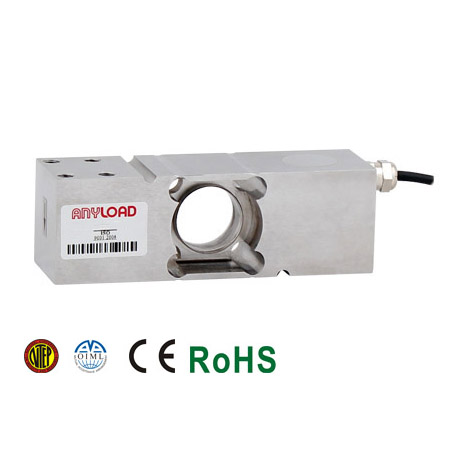

651KS66 Single Point Load Cell
$0.00
- Material: Stainless steel
- Rated Capacities: LE10kg, LE20kG, LE50Kg, LE100kg, LE200kg
- Full Scale Output: 2mV/V ± 5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: Welded Seal/IP68/IP69K
Download product PDF
Specifications
| Rated Capacity |
LE10kg, LE20kG, LE50Kg, LE100kg, LE200kg |
| Reference Max. Platform Size |
610mm x 700mm |
| Full Scale Output |
2mV/V ± 5% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.03% |
| Repeatability |
< ± 0.02% |
| Hysteresis Error |
< ± 0.03% |
| Creep in 30 minutes |
< ± 0.02% |
| Input Resistance |
1100Ω ± 50Ω |
| Output Resistance |
960Ω ± 50Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Compensated Temperature Range |
–10°C to 50°C/14°F to 122°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded seal |
| IP Rating |
IP68/IP69K |
