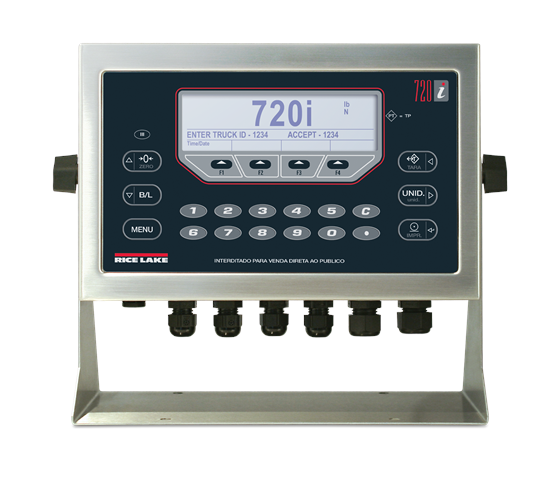

720i Programmable Weight Indicator and Controller

$0.00

Rice Lake’s 720i programmable weight indicator and controller is ideal for basic weighing and data collection, recipe formulation, inventory management and traceability

Download product PDF

Features

  • LCD display size: panel mount (3.8 in x 1.2 in), universal (5.3 in x 1.5 in)
  • Four softkeys
  • Truck in/out, 1,000-ID memory (PCE software version)
  • 32 setpoints, 26 configurable types (batch software version)
  • Process control engine ProAction PCE define conditions and actions
  • Data storage onboard, ProAction DBE user-defined
  • Eight digital I/O (expandable)
  • One option slot for pluggable options
  • 20 auxiliary print formats
  • Time & date
  • Audit trail tracking and alibi storage
  • Peak hold
  • Rate of change
  • Accumulator
  • Multi-range/interval
  • Local/remote
  • Two full duplex serial ports
  • One PS/2 keyboard port
  • Header for fiber optic, Ethernet or USB
  • Configurable with Revolution software

Specifications

Power:
Line voltages: 100?240 VAC
Frequency: 50-60 Hz
DC voltages: 12?24 VDC
Power consumption: 25 W

Excitation Voltage:
10 VDC, 8 x 350? or 16 x 700? load cells

Analog Signal Input Range:
-10 mV to +45 mV

Analog Signal Sensitivity:
0.3 ?V/graduation minimum at 7.5 Hz
1.0 ?V/graduation typical at 120 Hz (manual only)

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8 million counts/8,000,000 23 bit
Display: 1,000,000

System Linearity / PI Rating:
?0.01% full scale

Digital I/O:
Eight channels on CPU board; optional 24-channel I/O

Communication Ports:
Two ports on CPU board support up to 115,200 bps
Port 2: Full duplex RS-232 with handshaking
Port 4: Full duplex RS-232, simplex 20mA
Keyboard port hard wired (Scan Code 1)
Optional dual-channel serial expansion boards available
Channel A: RS-232, RS-485, 20 mA
Channel B: RS-232, 20 mA

Display:
Panel Mount: 3.8 in x 1.2 in (96 mm x 30 mm)
Universal: 5.3 in x 1.5 in (133 mm x 39 mm)
240 x 64 pixel, Transflective LCD with adjustable contrast

Keys/Buttons:
Ten-key (panel mount) membrane panel
22- key (universal mount) membrane panel tactile feel
Optional keyboard connection supported

Temperature Range:
Certified: 14?F to 104?F (-10?C to 40?C)
Operating: 14?F to 122?F (-10?C to 50?C)

Weight:
Universal enclosure: 9.5 lb (4.3 kg)
Panel Mount enclosure: 8.5 lb (3.9 kg)

Rating/Material:
NEMA Type 4X/IP66, stainless steel

Warranty:
Two-year limited warranty

EMC Immunity:
EN 50082 Part 2 IEC EN 61000-4-2, 3, 4, 5, 6, 8, and 11

Approvals:
NTEP CC 08-022, Class III/IIL 10,000d
Measurement Canada AM-5677C Class III/IIIHD 10,000d
CE Marked
UL/cUL Listed (universal)
UL/cUL Recognized (panel mount)

Options

Hardware

Manuals and Software

Network Cards

Option Cards

Primary Component Parts

Models

720i Panel Mount
