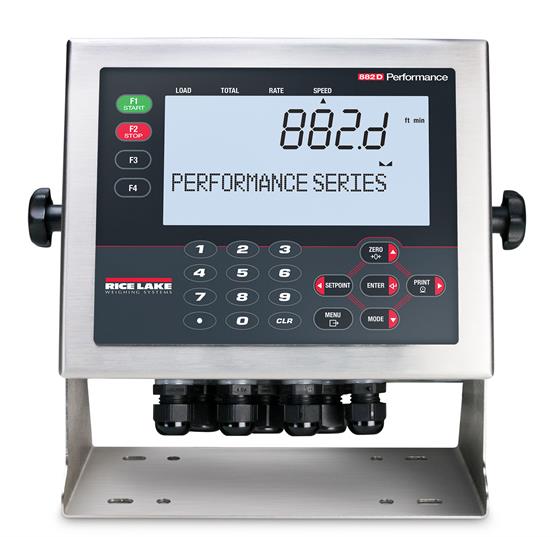

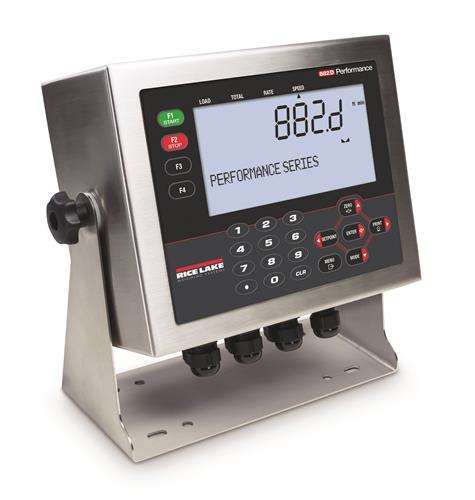

882D Belt Scale Integrator

$0.00

The 882D Belt Scale Integrator designed with belt scales in mind, the 882D delivers the data required in a compact package.

Download product PDF
Categories: ,

Features

  • LCD display, seven-digit, seven-segment weight display, 3 x 20 pixelated prompt area
  • RS-232 or RS-485 serial port
  • USB device port connects directly to a PC
  • Ethernet TCP/IP polled or continuous
  • AC or DC models
  • Hardware slot for two option card
  • Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
  • Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
  • Setpoints for control and alarms
  • Four onboard digital I/O channels
  • Four programmable ticket formats up to 1,000 characters
  • Filter settings for light, medium and heavy noise
  • Speed inputs

Specifications

Power
Input voltages: 100-240 VAC; 9-36 VDC
Input frequency: 47-63 Hz

Power Consumption:
AC: 15 watts; DC: 20 watts

Excitation Voltage:
10 VDC 8 x 350 ? (16 x 700 ?) load cells

Analog Signal Input Range:
-45 mV to 45 mV

Analog Signal Sensitivity:
0.3 ?V/graduation minimum at 7.5 Hz;
1.0 ?V/graduation typical at 120 Hz

Sample Rate:
7.5 to 120 Hz, software selectable

Resolution:
Internal: 8 million counts 23 bit weight display: 100,000

System Linearity:
? 0.01% full scale

Digital I/O:
Four I/O onboard primary keys, pseudo functions, batching functions

Circuit Protection:
18 KV, 10 V/meter

Communication Ports:
RS-232 full duplex or RS-485 half duplex; USB micro A/B connector 2.0; Ethernet TCP/IP

Pulse Input:
Dual inputs for redundancy

Display:
LCD display, seven-digit, seven-segment weight display, 3 x 20 pixelated prompt area

Status Annunciators:
Load, total, rate, speed, zero

Keyboard:
Flat membrane panel, tactile feel

Operating Temperature:
Industrial: 14? F to 122? F (-10? C to 50? C)

Dimensions (W x H x D):
9.87 x 9.38 x 4.33

Weight:
12 lb (5.4 kg)

Material:
Stainless steel

Rating:
IP66

Warranty:
Two-year limited warranty

Approvals:
CE Marked (pending)
UL/c-UL Listed (pending)

Options

Analog Output
16-bit resolution, 0-10 VDC, 0-20 mA, 4-20 mA

Relay Board:
Four dry contract relays; DC Max: 30 VDC at 3 amps
AC max: 250 VAC at 3 amps per contact

EtherNet/IP Interface:
According to EN 50325-2

Profinet Interface:
According to IEC 61784 (CPF-3/3)

Modbus/TCP Interface:
Up to 8 bytes of I/O data, 100 Mbps full duplex Ethernet

DeviceNet Interface:
According to EN 50325-2

Profibus DP Interface:
According to EN 50170

EtherCAT:
According to IEEE 802.3

Digital I/O:
24 channel I/O expansion boards available

Models

Part #?177708 Product DescriptionIndicator,882D Belt Scale Belt Scale Integrator with LCD Display Universal Enclosure
Part #?180847 Product DescriptionIndicator,882D 100-240VAC Belt Scale Integrator with LCD Display Universal Enclosure
Part #?184683 Product DescriptionIndicator,882D Belt Scale Integrator DC Power with LCD Display Universal Enclosure
