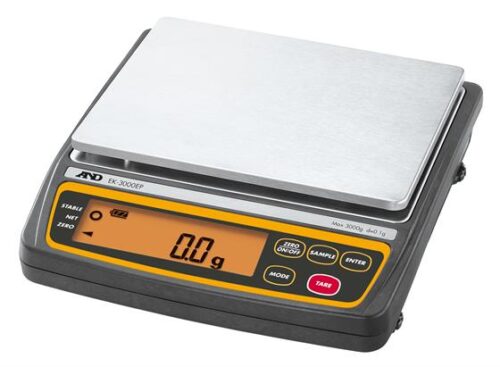

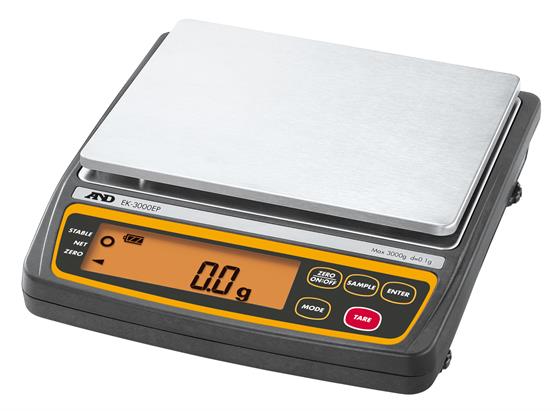

A&D Weighing EK-AEP Series Intrinsically Safe Compact Balances

$0.00

A&D Weighing EK-AEP are intrinsically safe balances in 300 kg, 3,000 kg or 12,000 kg capacities. Operating modes are Counting, Percentage and Specific Gravity.

Download product PDF
Category:

Features

  • LCD display
  • ATEX and FM approved (Class I, division 1, groups C and D)
  • 200 hours of battery operation*
  • Auto power off
  • Counting/Percentage/Specific Gravity modes
  • Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, gr, N

Specifications

EK-300AEP EK-3000AEP EK-12KAEP
Part # 199565 199566 199567
Capacity 300 g 3000 g 12,000 g
Resolution 0.01 g 0.1 g 1 g
Operating Modes Counting, Percentage, Specific Gravity
Repeatability 0.01 g 0.1 g 1 g
Linearity ±0.02 g ±0.2 g ±1 g
Sensitivity Drift ±20 ppm/°C (10°C to 30°C/50°F to 86°F)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Pan Size Ø4.33 in (110 mm) 5.24 in x 6.69 in (133 mm x 170 mm)
Physical Dimensions (W x D x H) 7.5 x 8.6 x 2.2 in (190 x 218 x 55 mm)
Weight (approx.) 2.4 lb (1.1 kg) 3.5 lb x (1.5 kg)
Calibration Mass (default setting) 300 g 3000 g 10 kg
Power Four AA batteries*
Warranty Two-year limited warranty
Return Policy A&D Weighing Standard Policy – restock fee may apply
UNIT OF MEASURE
Decimal Ounce 10.580 x 0.005 oz 105.80 x 0.05 oz 423.2 x 0.2 oz
Decimal Pound 0.6615 x 0.0005 lb 6.615 x 0.005 lb 26.46 x 0.02 lb
Troy Ounce 9.645 x 0.005 ozt 96.45 x 0.05 ozt 385.8 x 0.2 ozt
Pennyweight 192.9 x 0.1 dwt 1929 x 1 dwt 7715 x 5 dwt
Carat 1500 x 0.5 ct – –
Momme 80.00 x 0.05 mom 800 x 0.5 mom 3200 x 2 mom
Grain Unit 4,630 x 2 GN – –
Newtons 2.942 x 0.0001 N 29.42 x 0.001 N 117.68 x 0.01 N

Options

177696 Carrying Case,A&D EJ-12 For EK-EP Series Balances

Models

199565 Balance,A&D EK-300AEP Compact, Intrinsically Safe, 300g x 0.01g/ FM Approved Class I, Div 1, Groups C D. Powered by four AA Batteries (not included).
199566 Balance,A&D EK-3000AEP Compact, Intrinsically Safe, 3000g x 0.1g/ FM Approved Class I, Div 1, Groups C D. Powered by four AA Batteries (not included).
199567 Balance,A&D EK-12KAEP Compact, Intrinsically Safe, 12kg x 1g/ FM Approved Class I, Div 1, Groups C D. Powered by four AA Batteries (not included).
