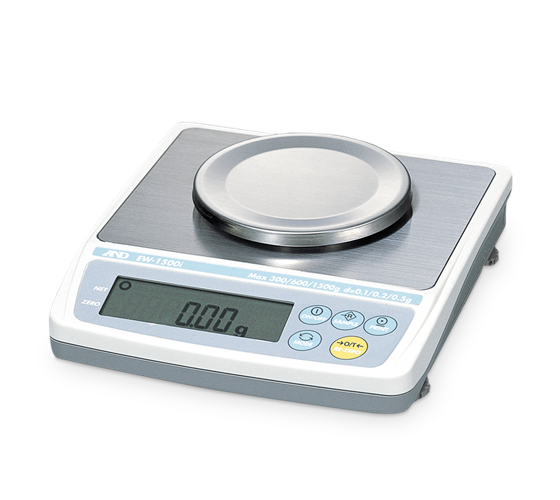

A&D Weighing EW-i Series Compact Balance
$0.00
The A&D Weighing EW-i Series compact balance has counting, comparator, and percentage modes as well as a backlight weight display.
Download product PDF
Features
- Backlit weight display
- Remote zeroing
- Easy-to-install NiCAd battery option
- RS-232C bidirectional interface
- Counting/Percentage/Comparator modes
- Triple range
Specifications
| EW-150i |
EW-1500i |
EW-12Ki |
| Part # |
97768 |
|
|
– |
|
|
– |
|
|
| NTEP |
| Part # |
– |
97769 |
97771 |
| Capacity |
30 g |
60 g |
150 g |
300 g |
600 g |
1500 g |
3000 g |
6000 g |
12000 g |
| Resolution |
0.01 g |
0.02 g |
0.05 g |
0.1 g |
0.2 g |
0.5 g |
1 g |
2 g |
5 g |
| Operating Mode |
Counting, Percentage |
| Repeatability |
0.01 g |
0.02 g |
0.05 g |
0.1 g |
0.2 g |
0.5 g |
1 g |
2 g |
5 g |
| Linearity |
±0.01 g |
±0.02 g |
±0.05 g |
±0.1 g |
±0.2 g |
±0.5 g |
±1 g |
±2 g |
±5 g |
| Sensitivity Drift |
20 ppm/° C (10° C to 30° C/50° F to 86° F) |
| Operating temperature |
14° F to 104° F (-10° C to 40° C) less than 85% R.H. (non-condensing) |
| Pan Size |
Ø 4.3 in (110 mm) |
5.2 x 6.7 in (133 x 170 mm) |
| Dimensions |
7.5 W x 8.6 D x 2.2 in H (190 x 218 x 55 mm) |
| Weight |
2.4 lb (1.1 kg) |
3.5 lb (1.5 kg) |
| Calibration Mass (default setting) |
150 g |
1500 g |
12 kg |
| Power |
AC adapter or Ni-MH battery pack (option) |
| Approvals |
– |
NTEP CC 04-019 |
NTEP CC 04-019 |
| Warranty |
Five-year limited warranty |
| Return Policy |
A&D Weighing Standard Policy – restock fee may apply |
| UNIT OF MEASURE |
| Decimal Ounce |
1.0580 x 0.0005 oz |
2.116 x 0.001 oz |
5.292 x 0.002 oz |
10.580 x 0.005 oz |
21.16 x 0.01 oz |
52.92 x 0.02 oz |
105.80 x 0.05 oz |
211.6 x 0.1 oz |
423.2 x 0.2 oz |
| Decimal Pound |
– |
– |
– |
0.6615 x 0.0005 lb |
1.323 x 0.001 lb |
3.306 x 0.002 lb |
6.615 x 0.005 lb |
13.23 x 0.01 lb |
26.46 x 0.02 lb |
| Troy Ounce |
0.9645 x 0.0005 ozt |
1.929 x 0.001 ozt |
4.822 x 0.002 ozt |
9.645 x 0.005 ozt |
19.29 x 0.01 ozt |
48.22 x 0.02 ozt |
96.45 x 0.05 ozt |
192.9 x 0.1 ozt |
385.8 x 0.2 ozt |
| Pennyweight |
19.29 x 0.01 dwt |
38.58 x 0.02 dwt |
96.45 x 0.05 dwt |
192.9 x 0.1 dwt |
385.8 x 0.2 dwt |
964.5 x 0.5 dwt |
1929 x 1 dwt |
3858 x 2 dwt |
7715 x 5 dwt |
| Carat |
150.00 x 0.05 ct |
300.0 x 0.1 ct |
750.0 x 0.2 ct |
1500.0 x 0.5 ct |
3000 x 1 ct |
7500 x 2 ct |
– |
– |
– |
| Momme |
8.000 x 0.005 mom |
16.00 x 0.01 mom |
40.00 x 0.02 mom |
80.00 x 0.05 mom |
160.0 x 0.1 mom |
400 x 0.2 mom |
800 x 0.5 mom |
1600 x 1 mom |
3200 x 2 mom |
| Grain Unit |
463.0 x 0.2 GN |
926.0 x 0.5 GN |
2315 x 1 GN |
4630 x 2 GN |
9260 x 5 GN |
23150 x 10 GN |
– |
– |
– |
| Tael (H.K General) |
0.7935 x 0.0005 TL |
1.587 x 0.001 TL |
3.968 x 0.002 TL |
7.935 x 0.005 TL |
15.87 x 0.01 TL |
39.68 x 0.02 TL |
79.35 x 0.05 TL |
158.7 x 0.1 TL |
317.4 x 0.2 TL |
Options
| 97760 |
Balance OPT,Comparator/ Relay outputs/Buzzer A&D EKW-04i |
|
|
| 97761 |
Balance OPT,Underhook for for EK-4100i/6100i/6000i/12Ki/EW-12Ki A&D EKW-07i |
|
|
| 97762 |
Balance OPT,NiCAd Battery Pack A&D EKW-091 |
|
|
| 97764 |
Balance OPT,Dust Cover Protective (Not in Use) A&D AX:3005824-5S |
|
|
| 97605 |
Balance OPT,Anti Theft Device A&D AD-100-2 |
|
|
| 97766 |
Balance OPT,AC Adapter TB:662 9 VDC 120 VAC 670mA Negative A&D EJ, EK-i, EW-i, HC-i, HD, FG-K, HL-i, HL-WP, HT, HV-GL, HW-GL, SF, SG, SJ-HS, SK, SK-WP, AD-4328, AD-4406, AD-4329, AD-8121B Models |
|
|
| 97767 |
Balance OPT,AC Adapter 220VAC 7.5 VDC 500mA Negative A&D TB:164 AD, FS, HC, HD, SF/SG, FS, EJ, EK-i, EW-i, HC-i Models |
|
|
| 151247 |
Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage |
Models
| 97768 |
Balance,A&D EW-150i Compact, 30/60/150g x 0.01/0.02/0.05g, 120V adapter |
|
|
| 97769 |
Balance,A&D EW-1500i Compact, 300/600/1000g x 0.1/0.2/0.5g, 120V adapter NTEP Class III, D = 0.1g, 0.2, 0.5g) |
|
|
| 97771 |
Balance,A&D EW-12Ki Compact, 3000/6000/12,000g x 1/2/5g, 120V adapter NTEP Class III, 50g, D = 1,2,5g |
