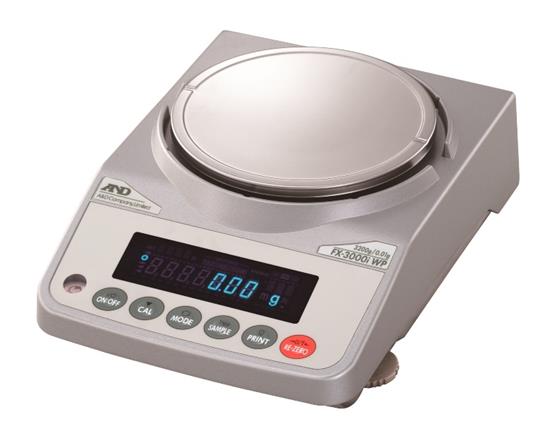

A&D Weighing FX-iWP Series Precision Balance
$0.00
A&D Weighing FXi-WP Series Precision Balance has statistical calculation, data memory and comparator functions.
Download product PDF
Features
- Washdown IP65 rating
- Compact Super Hybrid Sensor Technology (SHS)
- Vacuum Fluorescent Display (VFD)
- GLP/GMP/ISO compliant to either AD-8121 printer or computer. Transmits date, time, ID number, serial number and calibration data
- RS-232C bidirectional communication
- Multiple units of measurement
- Response indicator function
- Underhook weighing
Specifications
| FX-120iWP^ |
FX-200iWP^ |
FX-300iWP^ |
FX-1200iWP |
FX-2000iWP |
FX-3000iWP |
| Part # |
102905 |
102906 |
102907 |
102908 |
102909 |
102910 |
| Capacity |
122 g |
220 g |
320 g |
1220 g |
2200 g |
3200 g |
| Resolution |
0.001 g |
0.001 g |
0.001 g |
0.01 g |
0.01 g |
0.01 g |
| Repeatability |
0.001 g |
0.01 g |
| Linearity |
±0.002 g |
±0.02 g |
| Stabilization Time |
Approx. 1 second |
| Sensitivity Drift |
±2 ppm/° C |
| Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
| Operating Temperature |
41° F to 104° F (5° C to 40° C) 85% RH or less (No condensation) |
| Pan Size |
Ø 5.12 in (130 mm) |
Ø 5.90 in (150 mm) |
| Dimensions |
6 W x 10.3 D x 3.3 in H (193 x 262.5 x 84.5 mm) |
| Weight |
Approx. 2.5 kg |
| Est Ship Weight |
8 lb (3.5 kg) |
| External Calibration (weight optional) |
100 g |
200 g |
300 g |
1000 g |
2000 g |
3000 g |
| Power Consumption |
120/240 VAC adapter, approx. 11 VA |
| Warranty |
Five-year limited warranty |
| Return Policy |
A&D Weighing Standard Policy – restock fee may apply |
| UNIT OF MEASURE |
| Decimal Ounce |
4.30 x 0.00005 oz |
7.76 x 0.00005 oz |
11.28 x 0.00005 oz |
43.0 x 0.0005 oz |
77.6 x 0.0005 oz |
112.8 x 0.0005 oz |
| Pound |
0.268 x 0.000005 lb |
0.485 x 0.000005 lb |
0.705 x 0.000005 lb |
2.68 x 0.00005 lb |
4.85 x 0.00005 lb |
7.05 x 0.00005 lb |
| Pound x Ounce |
0 lb, 4.30 oz x 0.01 oz |
0 lb, 7.76 oz x 0.01 oz |
0 lb, 11.29 oz x 0.01 oz |
2 lb, 11.03 oz x 0.01 oz |
4 lb, 13.60 oz x 0.01 oz |
7 lb, 0.88 oz x 0.01 oz |
| Troy Ounce |
3.92 x 0.00005 ozt |
7.07 x 0.00005 ozt |
10.28 x 0.00005 ozt |
39.2 x 0.0005 ozt |
70.7 x 0.0005 ozt |
102.8 x 0.0005 ozt |
| Carat |
610 x 0.005 ct |
1100 x 0.005 ct |
1600 x 0.005 ct |
6100 x 0.05 ct |
11000 x 0.05 ct |
16000 x 0.05 ct |
| Pennyweight |
78.6 x 0.001 dwt |
141.7 x 0.001 dwt |
206.2 x 0.001 dwt |
786 x 0.01 dwt |
1417 x 0.01 dwt |
2062 x 0.01 dwt |
| Grain Unit |
1882 x 0.02 GN |
3395 x 0.02 GN |
4938 x 0.02 GN |
18827 x 0.2 GN |
33951 x 0.2 GN |
49383 x 0.2 GN |
| ^Weighing Chamber |
Options
| 98027 |
Balance OPT,Quick USB Interface A&D FXi-02 |
|
|
| 98028 |
Balance OPT,Ethernet Interface With WinCT-Plus Software A&D FXi-08 |
|
|
| 98029 |
|
|
|
| 98030 |
Balance OPT,Small Breeze Break A&D FXi-10 |
|
|
| 98031 |
Balance OPT,Large Breeze Break A&D FXi-11 |
|
|
| 97649 |
Balance OPT,AC Adapter TB:248, TB:237 or TB:648, 12 VDC 120 VAC 420mA Negative A&D BM, FX-i, FZ-i, GF, GX, GF-K, GX-K, GH, GR, HR, HR-A, HR-AZ, HR-i, MC, AD-4212 Models |
Models
| 102905 |
Balance,A&D FX-120iWP Toploader, 122g x 0.001g, Waterproof, IP-65, 120V adapter |
|
|
| 102906 |
Balance,A&D FX-200iWP Toploader, 220g x 0.001g, Waterproof, IP-65, 120V adapter |
|
|
| 102907 |
Balance,A&D FX-300iWP Toploader, 320g x 0.001g, Waterproof, IP-65, 120V adapter |
|
|
| 102908 |
Balance,A&D FX-1200iWP Toploader, 1220g x 0.01g, Waterproof, IP-65, 120V adapter |
|
|
| 102909 |
Balance,A&D FX-2000iWP Toploader, 2200g x 0.01g, Waterproof, IP-65, 120V adapter |
|
|
| 102910 |
Balance,A&D FX-3000iWP Toploader, 3200g x 0.01g, Waterproof, IP-65, 120V adapter |
