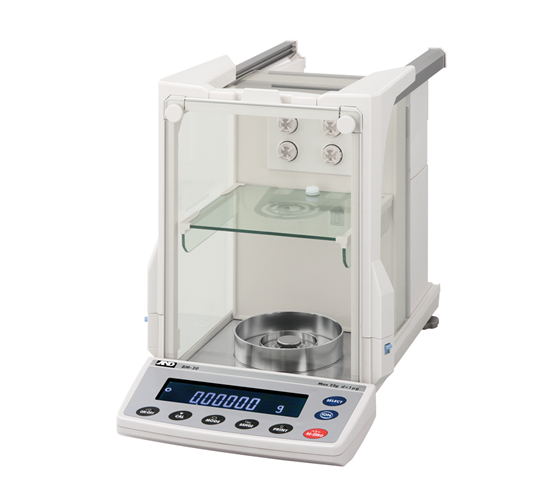

A&D Weighing Ion BM Series
$0.00
The Ion BM Series balances have a built-in fanless static eliminator, standard underhook and built-in calibration weight.
Download product PDF
Features
- Built-in fanless static eliminator
- Underhook weighing
- Anti-static glass
- Weighing chamber
- Built-in motorized calibration weight
- One touch environmental filters
- GLP/LIM/ISO compliant
- RS-232C and WinCT software standard
- AD-1688 Weighing Data Logger included
Specifications
| BM-20^ |
BM-22^ |
BM-252^ |
BM-200^ |
BM-300^ |
BM-500^ |
| ^ Weighing Chamber |
| Part # |
150762 |
150763 |
150765 |
150766 |
150767 |
150768 |
| Capacity (g) |
22 g |
22/5.1 g |
250 g |
220 g |
320 g |
520 g |
| Resolution (g) |
0.000001 g |
0.00001/0.000001 g |
0.00001 g |
0.0001 g |
0.0001 g |
0.0001 g |
| Operating Modes |
Percentage, Counting |
| Repeatability |
0.0025 mg |
0.004 mg/0.01 mg |
0.03 mg |
0.1 mg |
0.2 mg |
| Linearity |
±0.010 mg |
±0.010/0.02 mg |
±0.010 mg |
±0.2 mg |
±0.3 mg |
±0.5 mg |
| Stabilization Time |
10 seconds
(typically) |
8 to 10 seconds |
8 seconds |
Approx. 3.5 seconds |
| Sensitivity Drift (10° C-30° C) |
±2ppm/° C (when automatic self calibration is not used) |
| Operating Temperature |
41° F to 104° F (5° C to 40° C), 85% RH or less (no condensation) |
| Pan Size |
Ø 0.98 inches (25 mm) |
Ø 3.6 inches (90 mm) |
| Physical Dimensions |
10.2 x 18.3 x 12.8 in (259 x 466 x 326 mm) |
| Weight |
10 kg (ships by motor freight) |
| Ext. Cal. Mass (optional) |
20 g |
200 g |
200 g |
300 g |
500 g |
| Power |
120/240 AC Adapter |
| Warranty |
Five-year limited warranty |
| Return Policy |
A&D Weighing Standard Policy – restock fee may apply |
| UNIT OF MEASURE |
| Decimal Ounce |
0.776 x 0.00000001 |
0.18/0.776 x 0.0000001/0.000001 |
8.82 x 0.000001 |
7.76 x 0.00001 |
11.29 x 0.00001 |
18.34 x 0.000001 |
| Troy Ounce |
0.707 x 0.0000001 |
0.164/0.707 |
8.03 x 0.0000001 |
7.07 x 0.000001 |
10.29 x 0.000001 |
16.72 x 0.000001 |
| Pennyweight |
14.15 x 0.00001 |
3.28/14.15 x 0.00001 x 0.0001 |
160.7 x 0.00001 |
141.5 x 0.0001 |
20.58 x 0.0001 |
334.4 x 0.0001 |
| Carat |
110 x 0.00001 |
25.5/110 x 0.00001/0.0001 |
1250 x 0.0001 |
1100 x 0.001 |
1600 x 0.001 |
2600 x 0.001 |
| Momme |
5.87 x 0.000001 |
1.37/5.87 x 0.000001/0.00001 |
66.67 x 0.00001 |
58.7 x 0.0001 |
85.3 x 0.0001 |
138.7 x 0.0001 |
| Grain Unit |
339.5 x 0.00002 |
78.71/339. 5x 0.00002/0.0002 |
3858×0.0002 |
3395×0.002 |
4938×0.002 |
8024x 0.002 |
Options
| 150769 |
Balance OPT,Ethernet BM BM-08 |
|
|
| 97606 |
Balance OPT,Density Determination Kit A&D AD-1653 |
|
|
| 97609 |
Balance OPT,Remote Controller A&D AD-8922 |
|
|
| 97608 |
Balance OPT,Universal Remote Display A&D AD-8920 |
|
|
| 97612 |
Foot Switch,SW:128 A&D |
|
|
| 196128 |
Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant. |
Models
| 150762 |
Balance,A&D BM-20 Micro Balance, 22 g x 0.001 mg, RS-232C, 120V/220V AC Adapter |
|
|
| 150763 |
Balance,A&D BM-22 Micro Balance, 5.1g/22g x 0.001 mg, RS-232C, 120V/220V Adapter |
|
|
| 150765 |
Balance,A&D BM-252 Semi-micro Balance, 250 g x 0.01 mg, RS-232C, 120V/220V Adapter |
|
|
| 150766 |
Balance,A&D BM-200 Analytical Balance, 220 g x0.1 mg, RS-232, 120/220 V Adapter |
|
|
| 150767 |
Balance,A&D BM-300 Analytical Balance, 320 g x 0.1 mg, RS-232C, 120V/220V Adapter |
|
|
| 150768 |
Balance,A&D BM-500 Analytical Balance, 520 g x 0.1 mg, RS-232C, 120V/220V Adapter |
