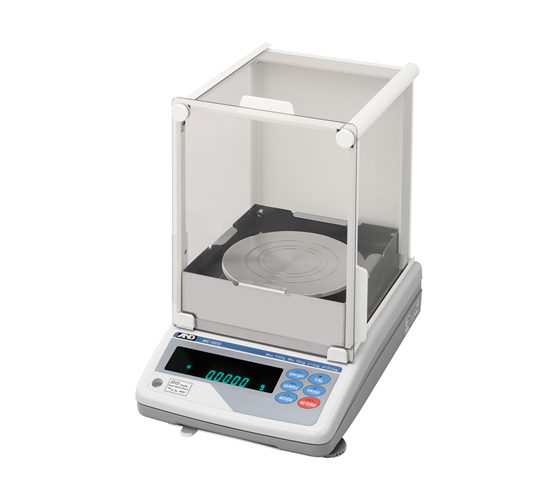

A&D Weighing MC Series

$0.00

The A&D Weighing MC Series Balance provides super hybrid sensor technology, perfect for many applications from laboratory to electronic manufacturing.

Download product PDF
Category:

Features

  • Super hybrid sensor technology
  • Bright VFD display
  • Manage ASTM and OIML weights
  • Underhook weighing
  • Built-in calibration weight
  • GLP/LIM/ISO compliant
  • RS-232C

Specifications

MC-1000^ MC-6100^ MC-10K^ MC-30K^
^ Weighing Chamber
** Repeatability when auto-centering is used under good ambient conditions
Part # 151262 151263 151264 151265
Capacity 1,100 g 6,100 g 10.1 kg 31 kg
Resolution 0.1 mg 0.001 g 0.001 g 0.01 g
Operating Modes Weighing, Percentage, Comparator
Weighing Units g, oz, lb, lb-oz, troy oz, ct, dwt, grain, momme
Repeatability** 0.0005 g/1 kg/0.0004 g/500 g 0.004 g/5 kg/0.0015 g/2 kg 0.005 g/10 kg/0.004 g/5 kg 0.015 g/20 kg
Linearity ±0.002 g ±0.02 g ±0.03 g ±0.2 g
Stabilization Time 5 seconds
Sensitivity Drift (10° C-30° C) ±2ppm/° C ±3ppm/0° C
Operating Temperature 41° F to 104° F (5° C to 40° C) 85% RH or less (no condensation)
Pan Size 128 x 128 mm 165 x 165 mm 270 x 210 mm
Physical Dimensions 210 x 317 x 86 mm 300 x 355 x 111 mm
Weight 4.6 kg 5.1 kg 9.3 kg
Ext. Cal. Mass (optional) 1,000 g 6,000 g 10 kg 30 kg
Power 120/240 AC adapter
Warranty Five-year limited warranty
Return Policy A&D Weighing Standard Policy – restock fee may apply

Options

151266 Pan,Autocentering MC-1000 A&D Weighing
151267 Pan,Autocentering MC-6100 A&D Weighing
151268 Pan,Autocentering MC-10K/ 30K, A&D Weighing
151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage
97695 Balance OPT,Comparator Output, Factory Installed Only, A&D GX-04
97696 Balance OPT,Analog Output Factory Installed Only, A&D GX-06
97699 Pan,Animal Weigh A&D GX-12, Animal Weighing Pan for GX-400, GX-600, GX-2000, GX-4000, GX-6100, GX-6000, GX-8000
97700 Balance OPT,Density Determination Kit For GX-200, GX-400, GX-600 – A&D GX-13
97607 Balance OPT,Battery Pack Rechargeable A&D AD-1682
97612 Foot Switch,SW:128 A&D
196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

Models

151262 Comparator,Mass MC-1000 A&D, 1100 g x 0.1 mg, Glass Breeze Break, 5.04 x 5.04 in pan, AC Adapter Included
151263 Comparator,Mass MC-6100 A&D, 6100 g x 0.001 g, Glass Breeze Break, 5.8 in dia pan, AC Adapter Included
151264 Comparator,Mass MC-10KS A&D, 10.1 kg x 0.001 g, Glass Breeze Break, 10.06 x 8.3 in pan, AC Adapter Included
151265 Comparator,Mass MC-30K A&D, 31 kg x 0.01 g, Glass Breeze Break, 10.6 x 8.03 in pan, AC Adapter Included
