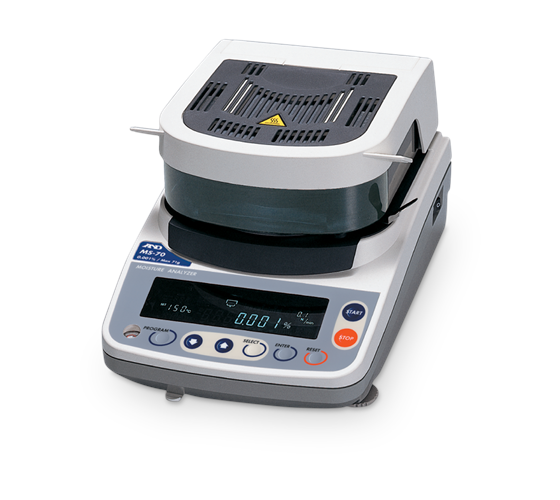

A&D Weighing MS/MX/MF/ML Series

$0.00

A&D Weighing MS/MX/MF/ML Series moisture analyzers deliver fast and uniform heating through a halogen lamp and the uniquely designed SRA (secondary radiation assist) filter.

Download product PDF
Category:

Features

  • Fast and uniform heating with halogen lamp and uniquely designed (secondary radiation assist) SRA filter
  • WinCT® communication tools software
  • Sodium tartrate dihydrate is provided as a stable moisture content for accuracy checks of the analyzer
  • 5 measurement programs: standard, automatic, timer, manual and quick
  • Vacuum fluorescent display (VFD)
  • Glass window for heating check and easy cleaning
  • Self-check function
  • Quick reference card
  • Standard bidirectional RS-232C
  • GLP/ GMP/GCP/ISO compliant with time and date, ID, calibration data and check record outputs

Specifications

MS-70 MX-50 MF-50 ML-50
Part # 97821 97822 97823 112408
Capacity 71 g 51 g 51 g 51 g
Resolution 0.0001 g 0.001 g 0.002 g 0.005 g
Moisture Content Display 0.001%/0.01% 0.1% 0.01%/0.1% 0.05%/0.1%/1% 0.1%/1%
Moisture Content Accuracy over 1g 0.05% 0.10% 0.20% 0.50%
Over 5 g 0.01% 0.02% 0.05% 0.10%
Heating Technology Halogen lamp (straight type, 400 Watt max, 5000 hours)
Drying Temperature 30° C to 200° C 50° C to 200° C (1° increment)
Measurement Program Memories 20 sets 10 sets 5 sets
Data Memory 100 50 30
Measurement Programs Standard/Automatic/Timer/Manual
Measurement Modes Wet base/Dry base/Solid content/Ratio
Operating Temperature 40° F to 104° F (5° C to 40° C)
Sample Pan Size Ø 2.16 in (85 mm)
Dimensions 8.46 W x 12.6 D x 6.8 H in (215 x 320 x 173 mm)
Weight 13 lb (5.9 kg)
Power 120 VAC
Warranty Five-year limited warranty
Return Policy A&D Weighing Standard Policy – restock fee may apply

Options

97824 Balance,Accessory, A&D AX-31, Samples Pans 85mm DIA, Washable, Pack of 100 each
97825 Balance,Accessory, A&D AX-32-2, Glass Fiber Sheets (100 ea)
97826 Balance,Accessory, A&D AX-33, Sodium Tartrate Dihydrate Test Samples (30g x 12 ea
97827 Balance,Accessory, A&D AX-34, Halogen Lamp (Replacement)
97828 Balance,Accessory, A&D AX-35, Pan Handles (2 ea)
97829 Balance,Accessory, A&D AX-36, Tweezers (2 ea)
97830 Balance,Accessory, A&D AX-37, Spoons (2 ea)
Balance,Accessory, A&D AX-38, Portective In-Use Dovers (5 ea)
97832 Balance,Accessory, A&D AX-39, Dust Cover
97833 Balance,Accessory, A&D AX-42, WinCT-Moisture (Standard with MS-70 and MX-50, Optional with MF-50
97834 Balance,Accessory, A&D AD-1700-20G, Calibration Mass (20g)
97837 Balance,Accessory, A&D AX-43, Temperature Calibrator (MS-70 and MX-50 only)
151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage
196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

Models

97821 Balance,A&D MS-70 Moisture Analyzer, 71g x 0.0001g (0.001%/0.01%/0.1% moisture content), 120VAC
97822 Balance,A&D MX-50 Moisture Analyzer, 51g x 0.001g (0.01% moisture content), 120VAC
97823 Balance,A&D MF-50 Moisture Analyzer, 51g x 0.002g (0.05% moisture content), 120VAC
112408 Balance,A&D ML-50 Moisture Analyzer, 51g x 0.005g (0.1%/1%), 120VAC
