Admiral Series CA-190

$0.00

Cardinal Scale’s Admiral bench scales feature an IP69K-rated load cell and indicator, so any sensitive electronics are fully protected against close range high-pressure, high-temperature spray downs making them ideal for the food processing industry where equipment must be carefully sanitized. The heavy-duty stainless steel base is built solidly for high-usage durability. The bright, vivid ColorZONE display changes color automatically as pre-assigned target weights are reached for efficient checkweighing. In environments that require heavy washdowns, such as in the food processing industry, the combination of water, chemicals, high pressure and high temperature can prove fatal for electronic circuits and instrumentation. The Admiral’s IP69K rating offers the highest protection rating possible.

Download product PDF
Category:

Features

  • 1 RS232
  • 1-in-high LCD
  • Capacitive Touch Keys
  • ColorZONE Checkweighing
  • Four Capacities Available in Metric and Imperial
  • Ideal for Food Processing
  • Integral Carrying Handle
  • Interlocking Commodity Tray
  • IP69K Rated – Highest Protection Rating Possible
  • IP69K Rated for High-Pressure and High-Temperature Washdown Applications
  • Optional Rechargeable Battery Power Available
  • Stainless Steel Platform
  • Washdown for Sanitary Environments

Specifications

Indicator Construction: IP69K-rated polycarbonate and ABS enclosure (190 STORM model)
Scale Base and Column Construction: Stainless steel with IP69K-rated load cell
Operating Temperature: 14 to 104 ºF (-10 to +40 ºC)
Display: Six digit, seven segment, 1 in / 25 mm high backlit LCD
Excitation: 5.18 VDC
Signal Input Range: 0.5 mV min. to 40 mV max. (with dead load boost)
Tare Capacity: Scale Capacity
Sample Rate: 1 to 100 samples per second, selectable

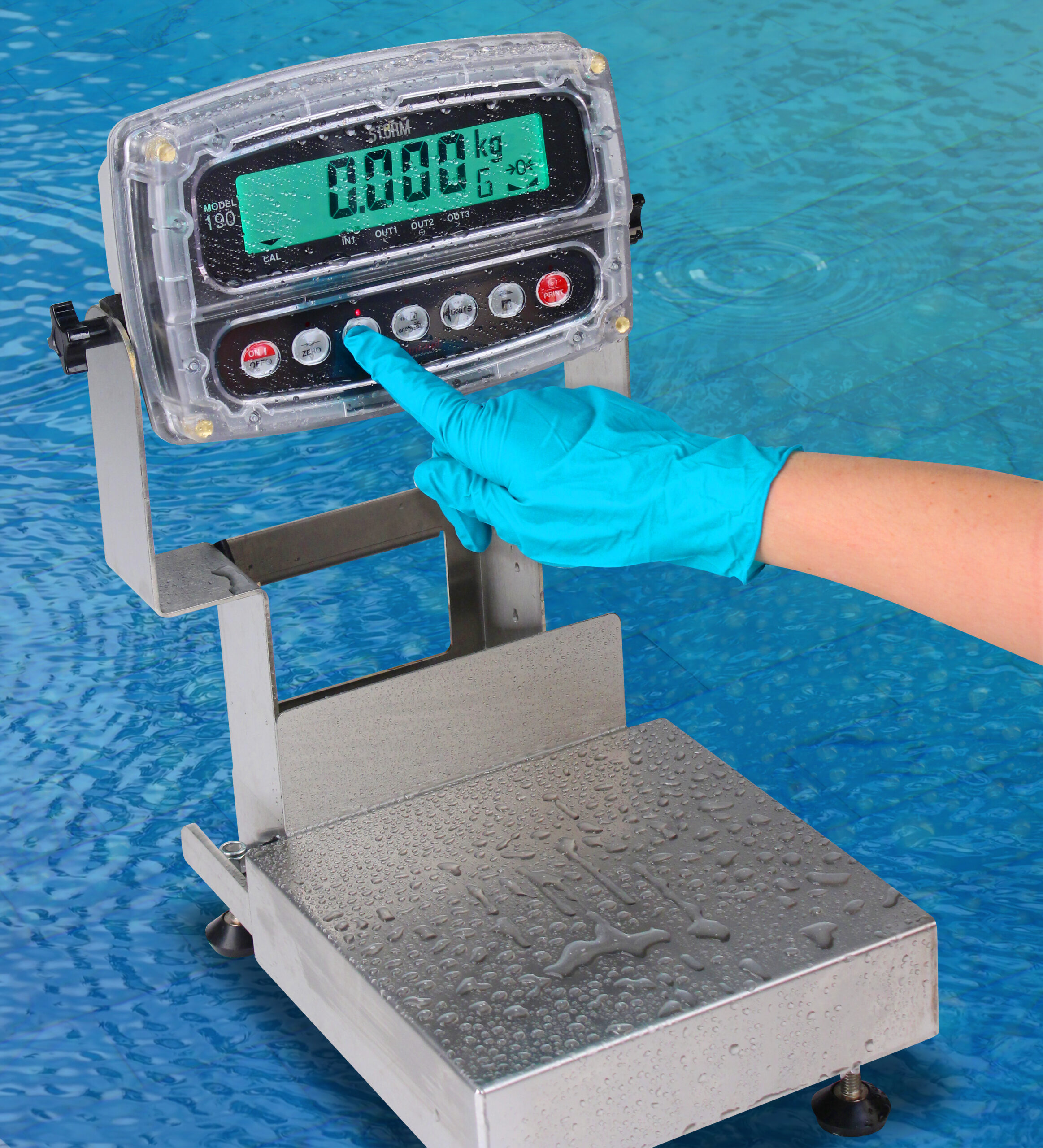

Keypad: Color coded capacitive touch type, 7 keys
Standard I/O: 1 bi-directional RS232
Power Requirements: 100 to 240 VAC (50/60 Hz) at 0.4A Max.
Optional Battery Type (model BP190): Lithium-Ion Rechargeable
Capacity (model CA8-15KGW-190): 15 kg x 0.001 kg
Capacity (model CA12-60KGW-190): 60 kg x 0.02 kg
Shipping Weight (models CA8-15KGW-190 and CA8-30W-190): 28 lb / 13 kg
Shipping Weight (models CA12-60KGW-190 and CA12-120W-190): 40 lb / 18 kg
Load Cell (models CA8-15KGW-190 and CA8-30W-190): Model SSPW-20KG stainless steel IP69K-rated
Load Cell (models CA12-60KGW-190 and CA12-120W-190): Model SSPW-75KG stainless steel IP69K-rated
Protection Rating: IP69K rated
Platform Size: CA8: 7 in / 18 cm Wide x 8.7 in / 22 cm Deep – CA12: 11 in / 28 cm Wide x 12.7 in / 32 cm Deep

Options

BP190 Battery Pack, 190 Indicator

Models



-120W-190Bench Scale, Electronic, Washdown, 12″ x 12″, 120 Lb Capacity, Stainless Steel, 190 Indicator

CA12-60KGW-190Bench Scale, Electronic, Washdown, 12″ x 12″, 60 Kg Capacity, Stainless Steel, 190 Indicator

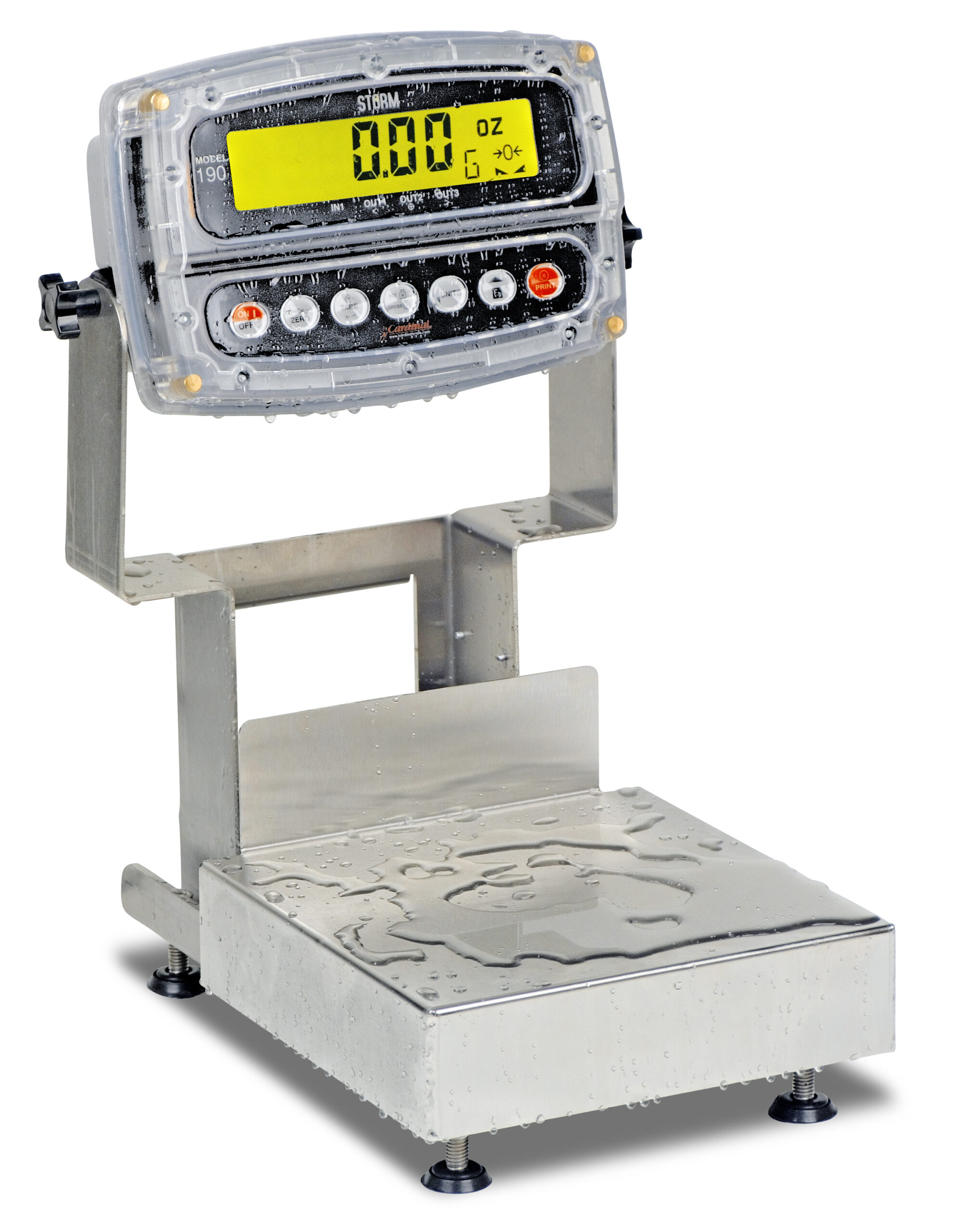

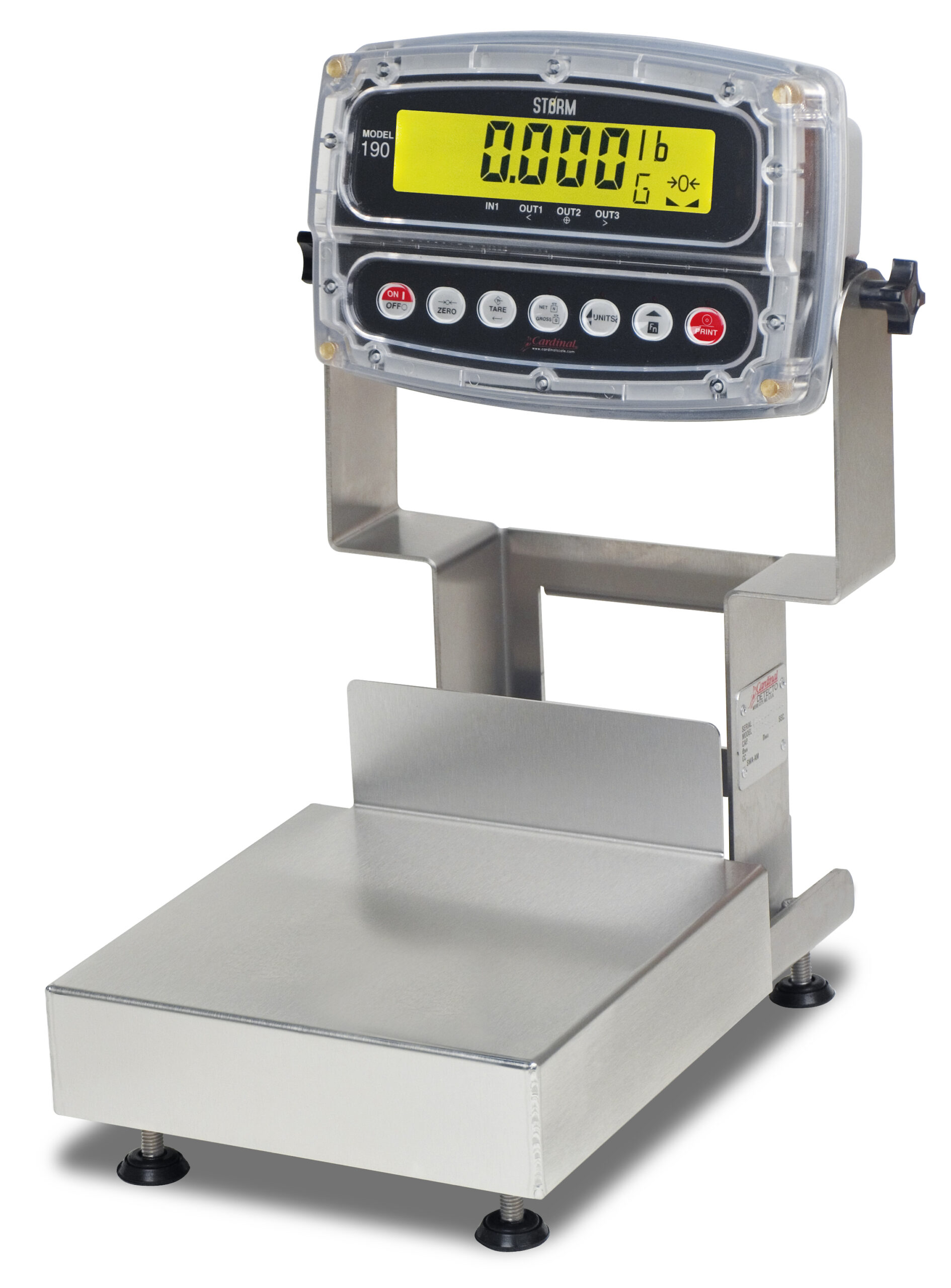

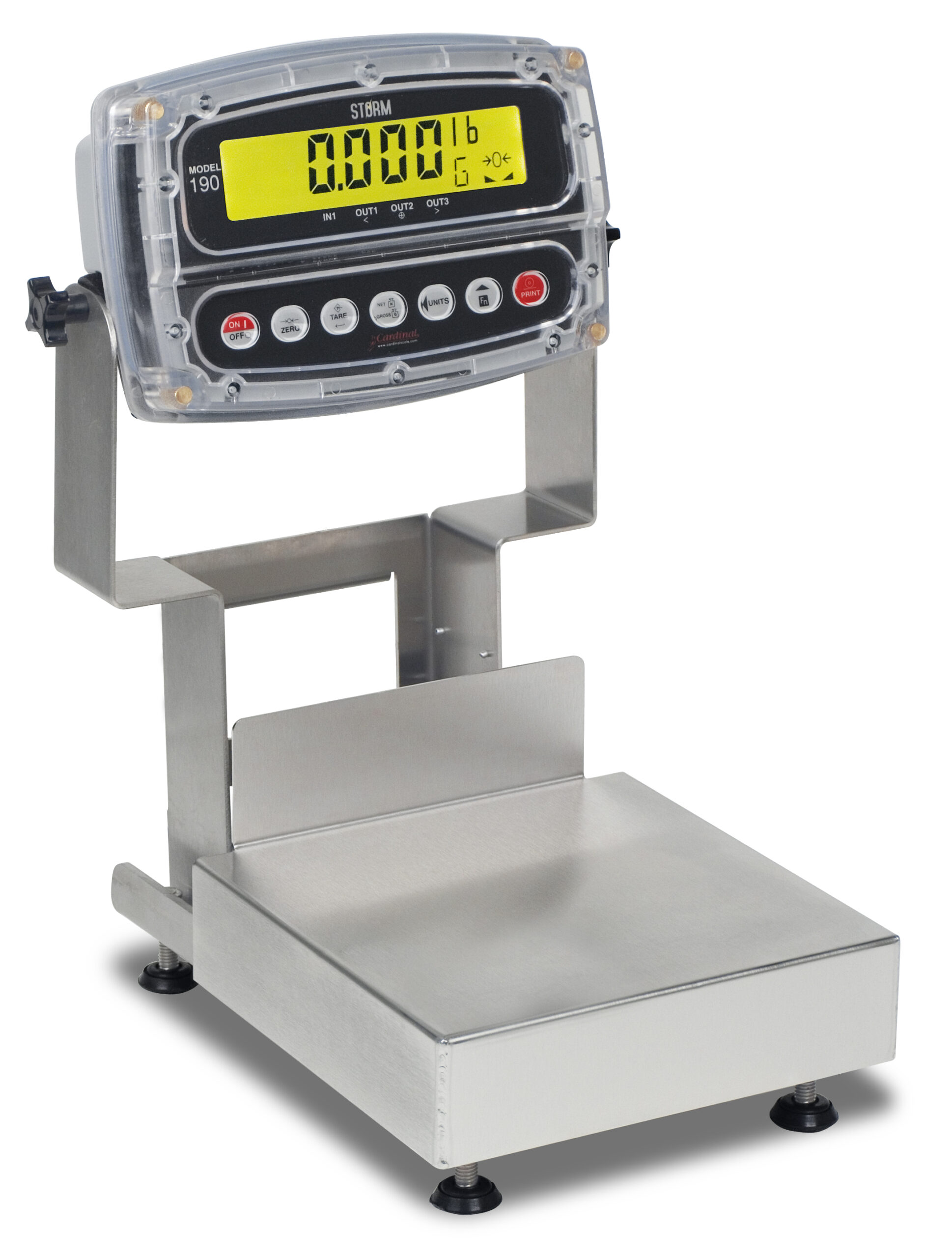

CA8-30W-190Bench Scale, Washdown, Electronic, 8″ x 8″, 30 Lb Capacity, Stainless Steel, 190 Indicator

CA8-15KGW-190Bench Scale, Washdown, Electronic, 8″ x 8″, 15 Kg Capacity, Stainless Steel, 190 Indicator
