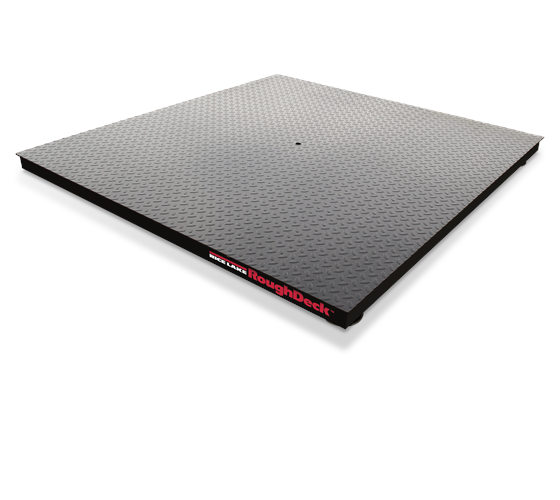

RoughDeck® HP Floor Scale

$0.00

  • Heavy-duty industrial design
  • Structural steel channel frame
  • Four NTEP Certified alloy steel, shear beam load cells
  • 20ft SURVIVOR® EL147HE hostile environment load cell cable
  • TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Side-access junction box
  • Rugged diamond deck safety treadplate
  • 4 adjustable stainless steel SUREFOOT™ support feet
  • 4 corner overload stops (Canadian versions only)
  • Level bubble (Canadian versions only)
Download product PDF

Options

19352 Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus,480/480 Plus, 482/482 Plus
126384 Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 320IS, 320IS w/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted
NA Four drilled deck holes for scale height adjustment
NA Access ramps, pit frames, bumper guards and portability frames available
NA Smooth deck instead of diamond safety tread plate
NA Mild steel deck with RL35023S stainless steel cFMus approved load cells and hardware
NA Mild steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware
NA Mild steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware
NA Epoxy paint
NA Top access junction box
NA Forklift channel option (up to 5 ft x 7 ft 10,000 lb, accommodates fork tines no larger than (WxH) 5 in x 2 in, fork entry is an opposite side of junction box location)

Models

67695 Scale,Floor Roughdeck 2.5×2.5KHP-2K 2.5ftx2.5ftx3-1/2 2000lb w/o Quick Connect NTEP III 5 Steel Painted
67693 Scale,Floor Roughdeck 3x3HP-1K 3ftx3ftx3-1/2 1,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted.
67696 Scale,Floor Roughdeck 3x3HP-2K 3ftx3ftx3-1/2 2000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
105301 Scale, Floor Roughdeck 3x3HP-5K 3ftx3ftx3-1/2 5000lb 20ft w/o Quick Connect NTEP III Steel Painted
67694 Scale,Floor Roughdeck 4x4HP-1K 4ftx4ftx3-1/2 1000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67697 Scale,Floor Roughdeck 4x4HP-2K 4ftx4ftx3-1/2 2000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67698 Scale,Floor Roughdeck 4x4HP-5K 4ftx4ftx3-1/2 5,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67699 Scale,Floor Roughdeck 4x4HP-10K 4ftx4ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67700 Scale,Floor Roughdeck 4X5HP-5K 4ftx5ftx3-1/2 5,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67701 Scale,Floor Roughdeck 4x5HP-10K 4ftx5ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67702 Scale,Floor Roughdeck 4x6HP-5K 4ftx6ftx3-1/2 5000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67703 Scale,Floor Roughdeck 4x6HP-10K 4ftx6ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67704 Scale,Floor Roughdeck 5x5HP-5K 5ftx5ftx3-1/2 5000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67705 Scale,Floor Roughdeck 5x5HP-10K 5ftx5ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67706 Scale,Floor Roughdeck 5x6HP-5K 5ftx6ftx3-1/2 5,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67707 Scale,Floor Roughdeck 5x6HP-10K 5ftx6ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67708 Scale,Floor Roughdeck 5x7HP-5K 5ftx7ft-3-1/2 5,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
67709 Scale,Floor Roughdeck 5x7HP-10K 5ftx7ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted
