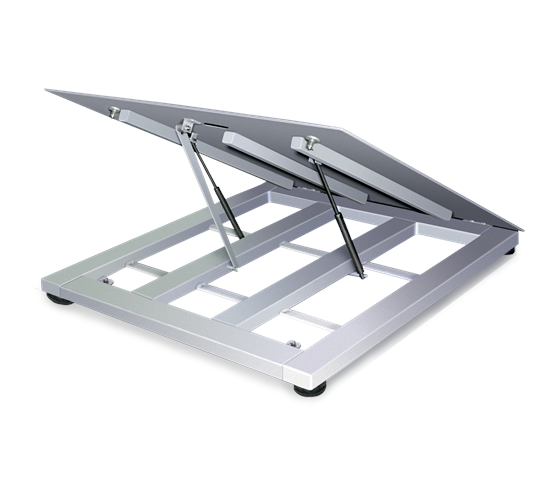

RoughDeck® QC Quick Clean Floor Scale

$0.00

  • Rugged washdown design
  • Smooth, 304 stainless steel top deck
  • Rigid 304 stainless steel tube frame
  • Manual drop-in-place safety bar
  • Four stainless steel, welded seal IP67, shear-beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
  • 3/16 in thick smooth top plate
  • 4 adjustable stainless steel SUREFOOT™ support feet
Download product PDF

Features

• Rugged washdown design
• Smooth, 304 stainless steel top deck
• Rigid 304 stainless steel tube frame
• Manual drop-in-place safety bar
• Four stainless steel, welded seal IP67, shear-beam load cells
• 20ft of SURVIVOR® EL147HE hostile environment load cell cable
• Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
• 3/16in thick smooth top plate
• Four adjustable stainless steel SUREFOOT™ support feet

Specifications

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb
Cable Length:
20 ft (6.1m) (for connecting junction box to indicator)
Remote Junction Box:
Stainless steel enclosure can be located up to 10 ft
away from scale
Welding:
Stitch, consult if continuous is required
Threaded Eyebolt Hole:
1/2-20NF located in center of deck for easy lifting
Warranty:
RoughDeck QC weldment five years, load cells two
years, all other components one year
Approvals:
NTEP CC 92-001, Class III 5,000d

Options

28740 Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 320IS, 320IS W/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST
NA Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware
Consult Stainless steel diamond treadplate safety deck

Models

50402 Scale,Floor Roughdeck QC 2.5×2.5HPQC-2K 2-1/2ftx2-1/2ftx3-1/2 2000lb 20ft NTEP III SST HE
50403 Scale,Floor Roughdeck QC 3x3HPQC-2K 3ftx3ftx3-1/2 2000lb 20ft NTEP III SST HE
50404 Scale,Floor Roughdeck QC 4x4HPQC-2K 4ftx4ftx3-1/2 2000lb 20ft NTEP III SST HE
50405 Scale,Floor Roughdeck QC 4x4HPQC-5K 4ftx4ftx3-1/2 5000lb 20ft NTEP III SST HE
50406 Scale,Floor Roughdeck QC 4x4HPQC-10K 4ftx4ftx4-1/2 10000lb 20ft NTEP III SST HE
50407 Scale,Floor Roughdeck QC 4x5HPQC-2K 4ftx5ftx3-1/2 2000lb 20ft NTEP III SST HE
50408 Scale,Floor Roughdeck QC 4x5HPQC-5K 4ftx5ftx4-1/2 5000lb 20ft NTEP III SST HE
50409 Scale,Floor Roughdeck QC 4x5HPQC-10K 4ftx5ftx4-1/2 10000lb 20ft NTEP III SST HE
50410 Scale,Floor Roughdeck QC 4x6HPQC-2K 4ftx6ftx4-1/2 2000lb 20ft NTEP III SST HE
50411 Scale,Floor Roughdeck QC 4x6HPQC-5K 4ftx6ftx4-1/2 5000lb 20ft NTEP III SST HE
50412 Scale,Floor Roughdeck QC 4x6HPQC-10K 4ftx6ftx5-1/2 10000lb 20ft NTEP III SST HE
50413 Scale,Floor Roughdeck QC 5x5HPQC-2K 5ftx5ftx4-1/2 2000lb 20ft NTEP III SST HE
50414 Scale,Floor Roughdeck QC 5x5HPQC-5K 5ftx5ftx4-1/2 5000lb 20ft NTEP III SST HE
50415 Scale,Floor Roughdeck QC 5x5HPQC-10K 5ftx5ftx4-1/2 10000lb 20ft NTEP III SST HE
50416 Scale,Floor Roughdeck QC 5x7HPQC-2K 5ftx7ftx5-1/2 2000lb 20ft NTEP III SST HE
50417 Scale,Floor Roughdeck QC 5x7HPQC-5K 5ftx7ftx5-1/2 5000lb 20ft NTEP III SST HE
50418 Scale,Floor Roughdeck QC 5x7HPQC-10K 5ftx7ftx5-1/2 10000lb 20ft NTEP III SST HE
