End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb Warranty:
RoughDeck QC-X weldment five years, load cells two
years, all other components one year
Specifications
? Rugged washdown design, rigid 304 stainless steel frame constructed
with continuous welds
? Manual drop-in-place safety bars
? Four stainless steel, welded seal IP69K, shear-beam load cells
? 20ft of SURVIVOR EL147HE hostile environment cable for connecting
junction box to indicator
? Remote TuffSeal JB4SS stainless steel NEMA Type 4X junction box,
can be mounted up to 15ft away
? 1/4in top plate
? Four adjustable stainless steel SUREFOOT? support feet

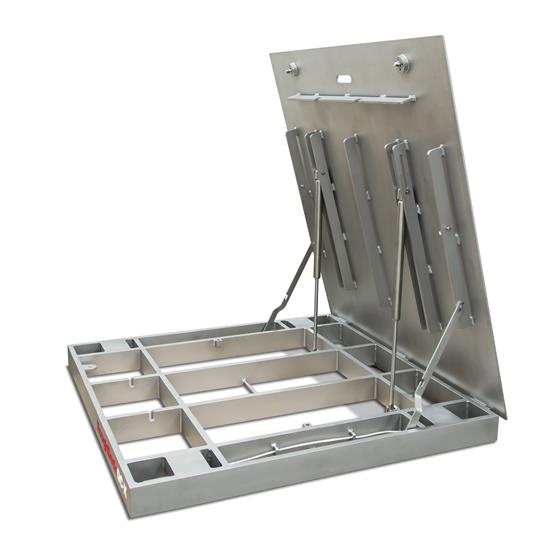

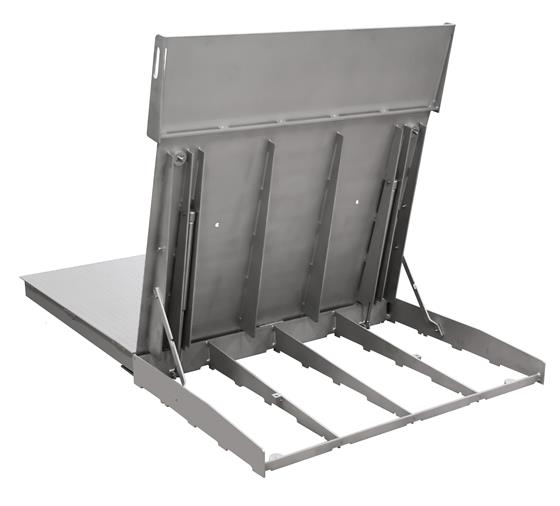

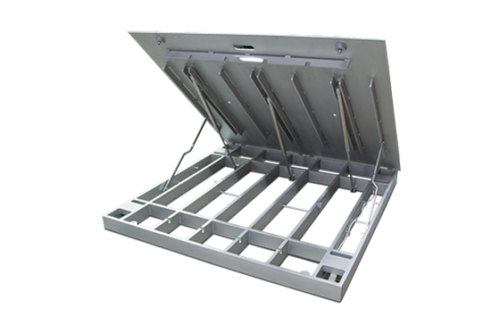

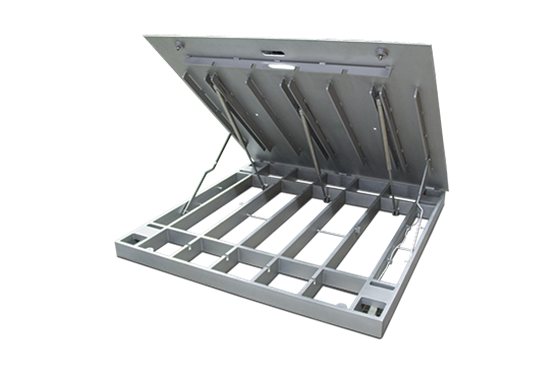

? Top plate opens 75 degrees
? Tool-less top plate lock downs
? Top plate available with a smooth deck or diamond treadplate
? Two 1/2-20NF threaded eyebolt holes for lifting scale into pit frame
Options
28740
Floor Stand,Indicator SST (36.3in) For 120/120 Plus, 320IS, 320IS W/battery, 320IS Plus, 320IS Plus w/battery, IQ+355, IQ+390, 420 Plus, 480/480 Plus, 482/482 Plus
18778
Mounting Plate Set, Roughdeck 1,000-10,000 lb SST
Models

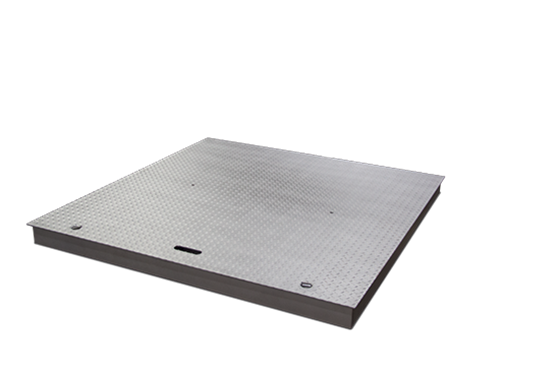

Diamond Tread Top Plate
PART #
PRODUCT DESCRIPTION
175688
Scale,Roughdeck QC-X 4x4HPQC-X-5K 4ftx4ftx4-5/8 5000lb 30ft DIAMOND TOP PLATE
175690
Scale,Roughdeck QC-X 4x4HPQC-X-10K 4ftx4ftx4-5/8 10,000lb 30ft DIAMOND TOP Plate
175696
Scale,Roughdeck QC-X 5x5HPQC-X-5K 5ftx5ftx4-5/8 5000lb 30ft DIAMOND TOP PLATE
175697
Scale,Roughdeck QC-X 5x5HPQC-X-10K 5ftx5ftx4-5/8 10,000lb 30ft DIAMOND TOP Plate
Smooth Top Plate
PART #
PRODUCT DESCRIPTION
175686
Scale,Roughdeck QC-X 4x4HPQC-X-5K 4ftx4ftx4-5/8 5000lb 30ft SMOOTH TOP PLATE
175689
Scale,Roughdeck QC-X 4x4HPQC-X-10K 4ftx4ftx4-5/8 10,000lb 30ft SMOOTH TOP Plate
175694
Scale,Roughdeck QC-X 5x5HPQC-X-5K 5ftx5ftx4-5/8 5000lb 30ft SMOOTH TOP PLATE
175695
Scale,Roughdeck QC-X 5x5HPQC-X-10K 5ftx5ftx4-5/8 10,000lb 30ft SMOOTH TOP Plate
