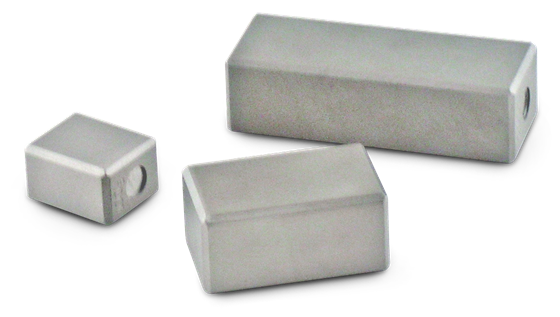

ASTM Class 5 Cube Specialty Calibration Weight Sets

$0.00

ASTM Class 5 cube specialty calibration weight sets are unique weights designed and built for custom applications or tolerances.

Download product PDF
Category:

Features

  • Nominal value marked on weights
  • Cavity for adjustment
  • Cube weight sets—designed as sealer’s kits for calibration adjustments

Specifications

300 g – 10 g 8 oz and 1/16 oz 2 lb x 1/16 oz 2 lb x .001 lb 2 lb x 1/16 oz 1 kg -1 mg 1 kg -1 mg
1 – 300 g* 1 – 8 oz* 3 – 2 lb* 3 – 2 lb* 14 – 2 lb* 1 – 1 kg* 3 – 1 kg*
1 – 200 g* 1 – 4 oz* 1 – 1 lb* 1 – 1 lb* 2 – 1 lb* 1 – 500 g+ 1 – 500 g+
1 – 100 g* 1 – 2 oz* 1 – 8 oz* 1 – 0.3 lb 1 – 8 oz* 1 – 300 g* 1 – 300 g*
1 – 50 g 1 – 1 oz 1 – 4 oz* 1 – 0.2 lb 1 – 4 oz* 1 – 200 g* 1 – 200 g*
1 – 30 g 1 – 1/2 oz 1 – 2 oz* 1 – 0.1 lb 1 – 2 oz* 1 – 100 g* 1 – 100 g*
1 – 20 g 1 – 1/4 oz 1 – 1 oz 1 – 0.05 lb 1 – 1 oz 1 – 50 g 1 – 50 g
1 – 10 g 1 – 1/8 oz 1 – 1/2 oz 1 – 0.03 lb 1 – 1/2 oz 1 – 30 g 1 – 30 g
  2 – 1/16 oz 1 – 1/4 oz 1 – 0.02 lb 1 – 1/4 oz 1 — 20 g 1 — 20 g
    1 – 1/8 oz 1 – 0.01 lb 1 – 1/8 oz 1 – 10 g 1 – 10 g
    2 – 1/16 oz 1 – 0.005 lb 2 – 1/16 oz 1 – 5 g 1 – 5 g
      1 – 0.003 lb   1 – 3 g 1 – 3 g
      1 – 0.002 lb   1 – 2 g 1 – 2 g
      2 – 001 lb   1 – 1 g 1 – 1 g
          1 – 500 mg 1 – 500 mg
          1 – 300 mg 1 – 300 mg
          1 – 200 mg 1 – 200 mg
          1 – 100 mg 1 – 100 mg
          1 – 50 mg 1 – 50 mg
          1 – 30 mg 1 – 30 mg
          1 – 20 mg 1 – 20 mg
          1 – 10 mg 1 – 10 mg
          1 – 5 mg 1 – 5 mg
          1 – 3 mg 1 – 3 mg
          1 – 2 mg 1 – 2 mg
          1 – 1 mg 1 – 1 mg
Piece Count
7 9 13 16 25 25 27
Total Weight
710 g 1 lb 8 lb 7.72 lb 31 lb 2222.221 g 4222.221 g
Part # Part # Part # Part # Part # Part # Part #
12545 12630 12652 12659 12585 12553 12555
*Cube Weight

Options

36092 Form,Statement of Accuracy
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon
25836 Serial Number

Models

12652 Weight Set,2lb-1/16oz ASTM Class 5 SST Cube Weights are Glass Beaded 8lb
12659 Weight Set,2lb-.001lb ASTM Class 5 SST Cube Weights are Glass Beaded 7.722lb
12585 Weight Set,2lb-1/16oz ASTM Class 5 SST Cube Weights are Glass Beaded 31lb
12630 Weight Set,8oz-1/16oz ASTM Class 5 SST Cube Weights are Glass Beaded 1lb
