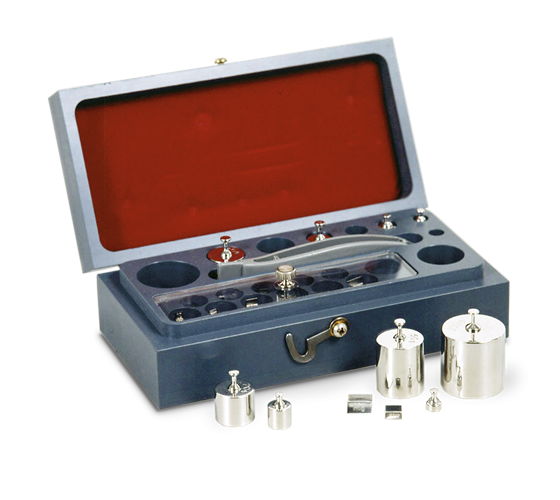

ASTM Range 20 g Precision Laboratory Metric Sets

$0.00

ASTM precision laboratory metric sets with a 20 gram range have a stainless steel polished finish and are designed to meet ASTM E617-13 specifications.

Download product PDF
Categories: ,

Features

  • Stainless steel polished finish
  • Designed to meet ASTM E617-13 specifications
  • ASTM Class 0 weight sets and individual weights are not individually marked with their weight value or individually serialized per ASTM E617-13
  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density 7.95g/cm3

Specifications

20 g – 1 mg 20 g – 1 mg* 20 g – 5 mg 20 g – 5 mg* 20 g – 10 mg 20 g – 10 mg* 20 g – 100 mg 20 g – 100 mg* 20 g – 1 g 20 g – 1 g*
1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g 1 – 20 g
1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g 1 – 10 g
1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g 1 – 5 g
1 – 3 g 2 – 2 g 1 – 3 g 2 – 2 g 1 – 3 g 2 – 2 g 1 – 3 g 2 – 2 g 1 – 3 g 2 – 2 g
1 – 2 g 1 – 1 g 1 – 2 g 1 – 1 g 1 – 2 g 1 – 1 g 1 – 2 g 1 – 1 g 1 – 2 g 1 – 1 g
1 – 1 g 1 – 500 mg 1 – 1 g 1 – 500 mg 1 – 1 g 1 – 500 mg 1 – 1 g 1 – 500 mg 1 – 1 g 1 – 1 g
1 – 500 mg 2 – 200 mg 1 – 500 mg 2 – 200 mg 1 – 500 mg 2 – 200 mg 1 – 500 mg 2 – 200 mg
1 – 300 mg 1 – 100 mg 1 – 300 mg 1 – 100 mg 1 – 300 mg 1 – 100 mg 1 – 300 mg 1 – 100 mg
1 – 200 mg 1 – 50 mg 1 – 200 mg 1 – 50 mg 1 – 200 mg 1 – 50 mg 1 – 200 mg
1 – 100 mg 2 – 20 mg 1 – 100 mg 2 – 20 mg 1 – 100 mg 2 – 20 mg 1 – 100 mg
1 – 50 mg 1 – 10 mg 1 – 50 mg 1 – 10 mg 1 – 50 mg 1 – 10 mg
1 – 30 mg 1 – 5 mg 1 – 30 mg 1 – 5 mg 1 – 30 mg
1 – 20 mg 2 – 2 mg 1 – 20 mg   1 – 20 mg
1 – 10 mg 1 – 1 mg 1 – 10 mg   1 – 10 mg
1 – 5 mg   1 – 5 mg
1 – 3 mg
1 – 2 mg
1 – 1 mg
Piece Count
18 18 15 15 14 14 10 10 6 6
Total Weight
42.221 g 42.221 g 42.215 g 42.215 g 42.421 g 41.1 g 41 g 41 g 42.105 g 40 g
Part # Part # Part # Part # Part # Part # Part # Part # Part # Part #
84154-Class 0 – 84149-Class 0 – 84148-Class 0 – 84146-Class 0 – 84155-Class 0 –
12448-Class 1 11908-Class 1 12450-Class 1 11907-Class 1 12451-Class 1 11906-Class 1 84145-Class 1 11905-Class 1 12452-Class 1 11904-Class 1
11853-Class 2 12174-Class 2 11858-Class 2 12172-Class 2 11863-Class 2 12171-Class 2 84144-Class 2 12170-Class 2 11868-Class 2 12169-Class 2
11961-Class 3 12311-Class 3 11966-Class 3 12309-Class 3 11971-Class 3 22188-Class 3 84143-Class 3 22187-Class 3 11976-Class 3 22186-Class 3
12108-Class 4 12414-Class 4 12113-Class 4 12412-Class 4 12118-Class 4 12411-Class 4 84142-Class 4 12410-Class 4 12123-Class 4 12409-Class 4

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
25836 Serial Number
11755 Cover,Leaf Weight
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber

Models

84154 Weight Set,20g-1mg ASTM Class 0 SST (5321), Calibration Certificate Included
84155 Weight Set,20g-1g ASTM Class 0 SST (5321), Calibration Certificate Included
84149 Weight Set,20g-5mg ASTM Class 0 SST (5321), Calibration Certificate Included
84148 Weight Set,20g-10mg ASTM Class 0 SST (5321), Calibration Certificate Included
84146 Weight Set,20g-100mg ASTM Class 0 SST (5321), Calibration Certificate Included
