Features
Automatic Axle Weighing (Short or Long)
Or
Manual Axle Weighing (Short or Long)
The scale is empty, sitting at zero, and displaying a
GREEN light. The Stop & Go Remote is displaying
the current live gross weight along with a GREEN
light. The lights cannot be manually controlled in
automatic axle weight.
The system performs the following actions:
Traffic Light changes to RED.
Captures the stable gross axle weight after being stable for 3.0 seconds.

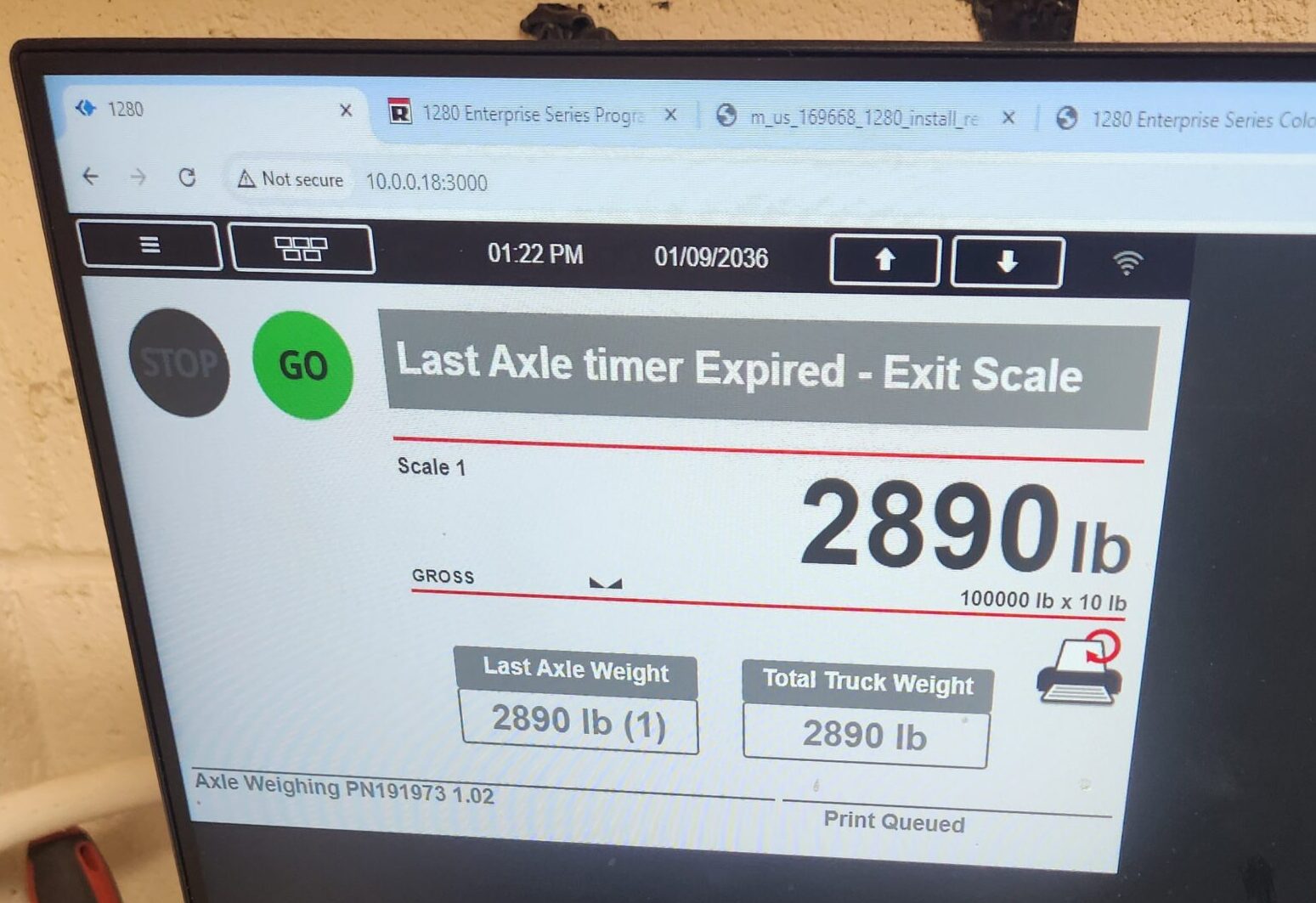

Starts Last Axle Timer (defaulted to 45.0
seconds).
The system performs the following when the Red
Light On Time (defaulted to 3.0 seconds) expires:
Traffic Light changes to GREEN.

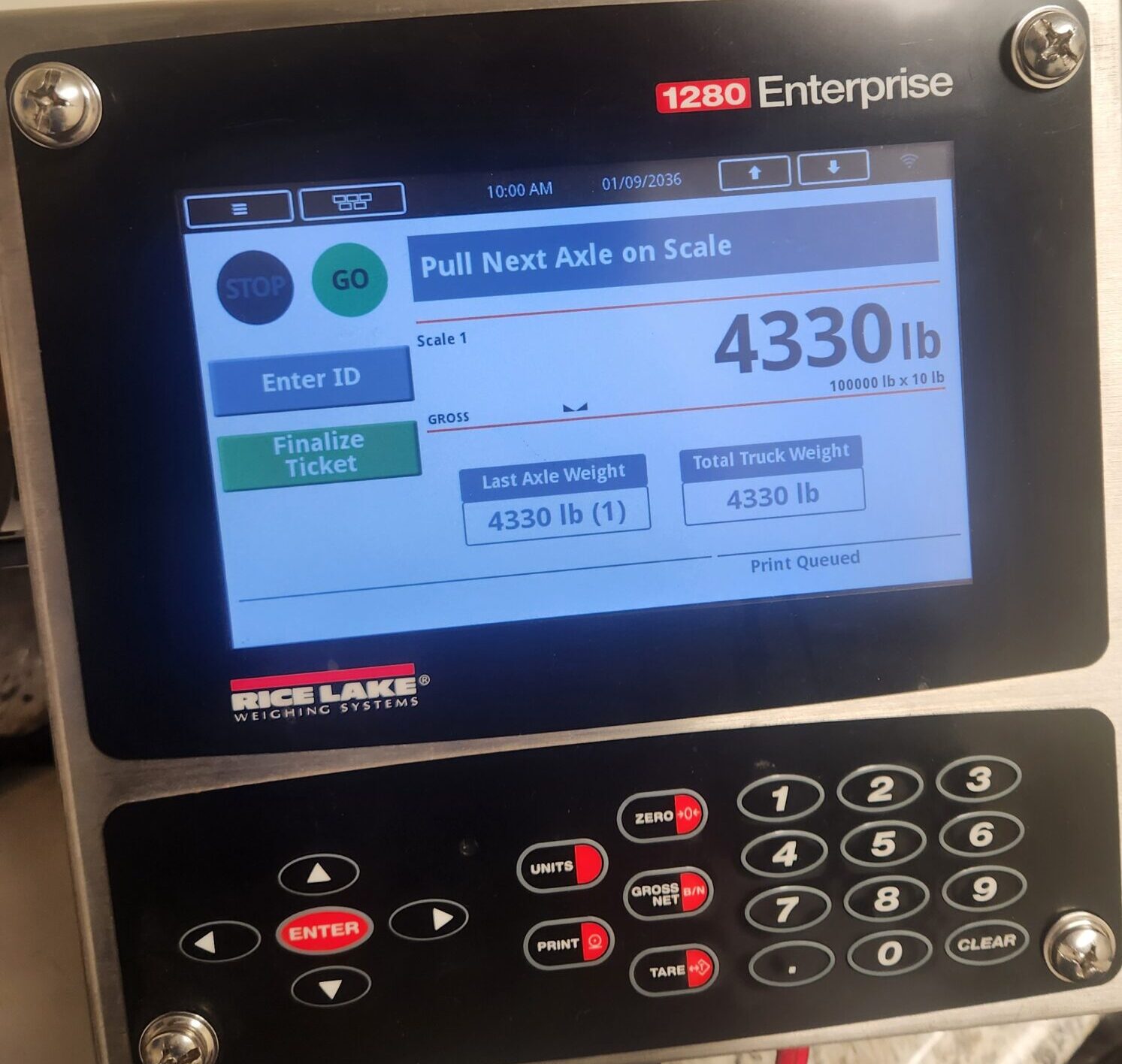

Axle weighing continues until all axle weighing is complete
Finalize Ticket touch widget is pressed,
Total ticket is printer out on optional ticket printer
Weigh Ticket (AuxFmt1,2,3
Truck ID 333
Axle # 1 4400 lb
Axle # 2 5160 lb
Axle # 3 10560 lb
Total 20120 lb
10:34PM MM/DD/YYYY
Weigh Ticket (AuxFmt1,2,4 – Weigh Out (if Weigh In/Out enabled))
Truck ID 999
Axle # 1 2770 lb
Axle # 2 4190 lb
Axle # 3 4320 lb
Total 11280 lb
Gross 11280 lb
Tare 6120 lb
Net 5160 lb
10:34PM MM/DD/YYYY
