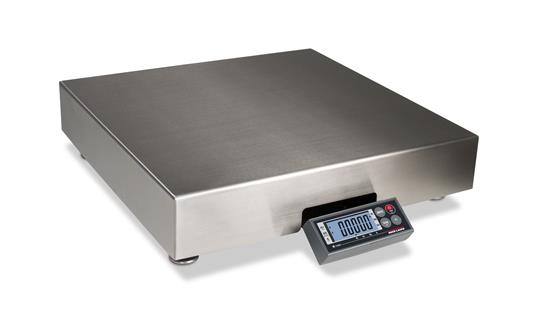

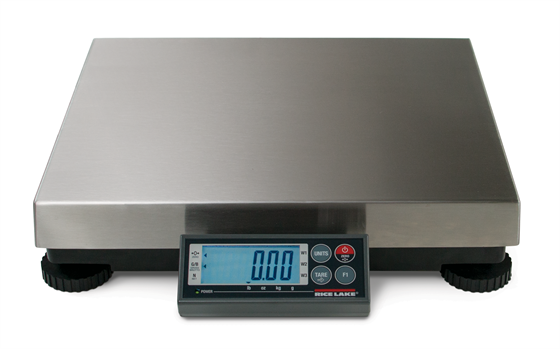

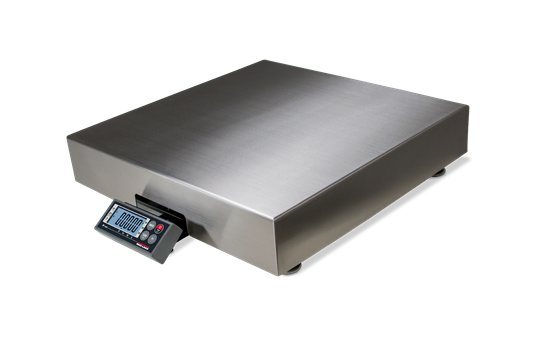

BenchPro BP-S Shipping Digital Scale

$0.00

TheBenchPro? BP-S Shipping Digital Scale family of digital bench scales is ideal for many diverse industries and markets around the world. As a general purpose scale, the BenchPro can tare containers, zero and change units of measure.

Download product PDF
Categories: ,

Features

  • Simple operation, easy to set up
  • Large six-digit backlight LCD display with 1 in?(29 mm) characters protected by heavy duty tempered glass
  • Powered USB HID point of sale interface ? kg model only
  • Nine-pin RS-232 interface for use with SMA and NCI protocols
  • Four AA alkaline battery operation for portability
  • Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved

Specifications

Dynamic Response:
Response time for stable weight:
0 – 1,000d, 1,000 ms, maximum mean average
1,000d +, 1,500 ms, maximum mean average

Internal Resolution:
500,000 internal count minimum

Overload Protection:
Corner & center overload protection

Power:
In-line Power Supply (included)
Input:?100-240 VAC, +10% -15%, 3-wire w/ground
Standard terminated with USA 3-prong plug
Output:?12V at .1 Amps DC minimum
Frequency:?50/60 Hz +/-3 Hz, standard
Approvals:?UL, CE, EN, CUL

Battery Power (BP-S 12 x 14 scale only):
Battery Type:?Four AA alkaline batteries, 6 V, with low battery indication at 4.3 volts (not included)
Battery Life:?50-250 hrs depending on backlight and auto-shutdown settings

USB HID:
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002

Construction:
Powder coat painted mild steel base plate and load bridge with stainless steel weight platter
BP-S 12 x 14 scale?–?Die-cast aluminum load bridge and base housing with stainless steel weight platter

Display:
Minimum key press life of 500,000 cycles,
ABS plastic housing
6 annunciators to indicate Zero, Gross/Brutto, Net, W1/W2/W3 multi-range
4 buttons: Units, Tare, On/Off, F1

RS-232 Cable (included):
10 ft DB 9-pin male to female, straight pass through and null modem

USB Cable (included):
46 in (1168.4 mm) A/B type USB cable

Approvals:
NTEP COC # 17-002
Canada Weights and Measures: AM – 6050

Warranty:
Two-year limited warranty

Options

174783 Bracket and Post, Option Bench Pro Series, Model BP 1214
178501 USB Serial Adapter FTDI US232R-100, 3.28 ft, iDIm 100
183103 Mount,Display Bench Pro Scale 16in Stand
174784 Remote Display,Bench Pro Series, with 68in cable and capacity labels
180901 Display,Customer Bench Pro Series, with 68in cable and capacity labels

Models

Part #?174879Product DescriptionScale, Bench Pro Series Model BP 1214-75S, 150 x 0.05lb/75 x 0.02kg, SS Weight Platter

Part #?182993Product DescriptionScale, Bench Pro Series Model BP 1216-75S, 150 x 0.05lb/75 x 0.02kg, SS Weight Platter 12 x 16 inch Dimensions

Part #?182391Product DescriptionScale, Bench Pro Series Model BP 1818-50S, 100 x 0.02lb/50 x 0.01kg, SS Weight Platter 18 x 18 inch Dimensions

Part #?182378Product DescriptionScale, Bench Pro Series Model BP 1818-75S, 150 x 0.05lb/75 x 0.02kg, SS Weight Platter 18 x 18 inch Dimensions

Part #?182382Product DescriptionScale, Bench Pro Series Model BP 1818-150S, 300 x 0.1 lb/150 x 0.05kg, SS Weight Platter 18 x 18 inch Dimensions

Part #?182395Product DescriptionScale, Bench Pro Series Model BP 2020-150S, 300 x 0.1 lb/150 x 0.05kg, SS Weight Platter 20 x 20 inch Dimensions

Part #?182399Product DescriptionScale, Bench Pro Series Model BP 2424-150S, 300 x 0.1 lb/150 x 0.05kg, SS Weight Platter 24 x 24 inch Dimensions
