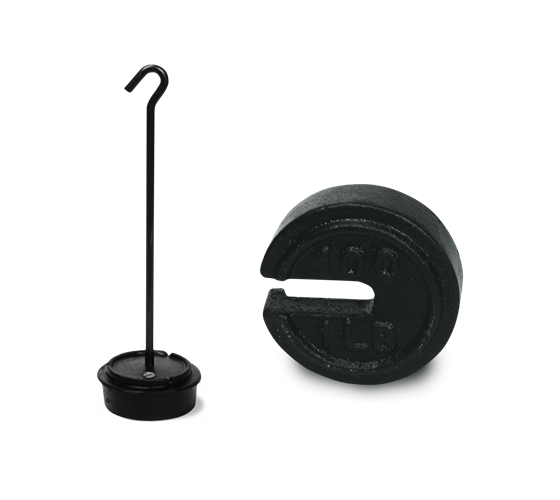

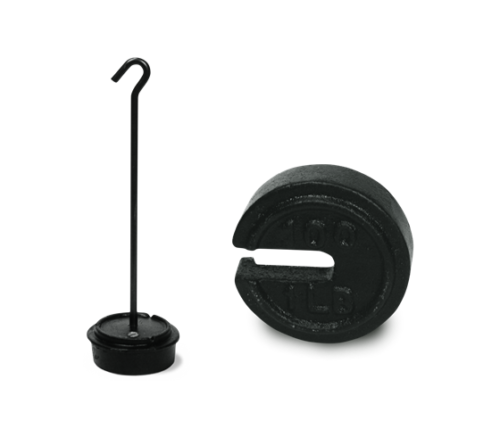

Cast Iron Calibration Weights – Counterpoise and Hanger Weights
$0.00
Counterpoise and hanger cast iron calibration weights are available in ASTM Class 6 and 7 and OIML Class M1 and M2.
Download product PDF
Features
- Counterpoise weights for ratio weighing
- Nominal value marked on weight
- Weight capacities of 10 kg/20 lb and up meet NIST Handbook 105-1 and Handbook 44 specifications
- Metric weights designated by gold paint
- Avoirdupois weights (pound) designated by silver paint
- Serial numbers may be stamped on weights (optional)
Specifications
- NIST Class F
- ASTM Class 6 and 7
- OIML Class M1 and M2
Applications:
- Field standards for testing industrial devices Class III, Class IIlL or IIII
- Testing for non-marked scales without Class designation
- Verifying scales are within specified accuracy and tolerances
Models
| 10152 |
Weight,CP Round Slotted Interlocking 100lb x 1/2lb 2-29/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10154 |
Weight,CP Round Slotted Interlocking 50lb x 1/2lb 2-29/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10156 |
Weight,CP Round Slotted Interlocking 100lb x 1lb 4-3/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10158 |
Weight,CP Round Slotted Interlocking 200lb x 2lb 4-5/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10160 |
Weight,CP Round Slotted Interlocking 500lb x 5lb 3-29/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10168 |
Weight,CP Round Slotted Interlocking 200lb x 1lb 3-17/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10170 |
Weight,CP Round Slotted Interlocking 500lb x 2-1/2lb 3-17/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10189 |
Weight,CP Round Slotted Interlocking 300lb x 1-1/2lb 3-17/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10196 |
Weight,CP Slotted 1,000lb x 5lb 3-29/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10367 |
Weight,CP Round Slotted Interlocking 50lb x 1/2lb 2-31/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10369 |
Weight,CP Round Slotted Interlocking 100lb x 1lb 2-31/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10371 |
Weight,CP Round Slotted Interlocking 200lb x 2lb 2-31/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10373 |
Weight,CP Round Slotted Interlocking 300lb x 3lb 3-3/32Dia ASTM Class 7 Cast Iron Painted |
|
|
| 10385 |
Weight,CP Round Slotted Interlocking 500lb x 5lb 3-7/32Dia ASTM Class 7 Cast Iron Painted |
