Cast Iron Calibration Weights – Grip Handle and Nesting Slab Weights

$0.00

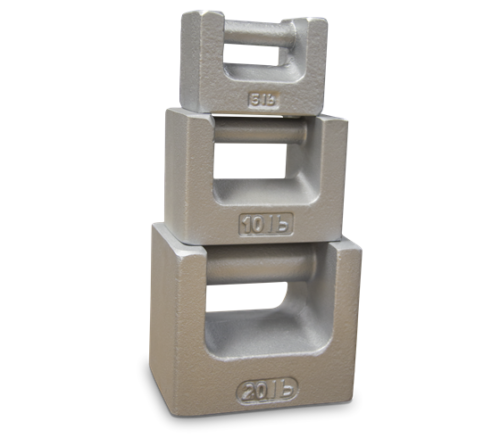

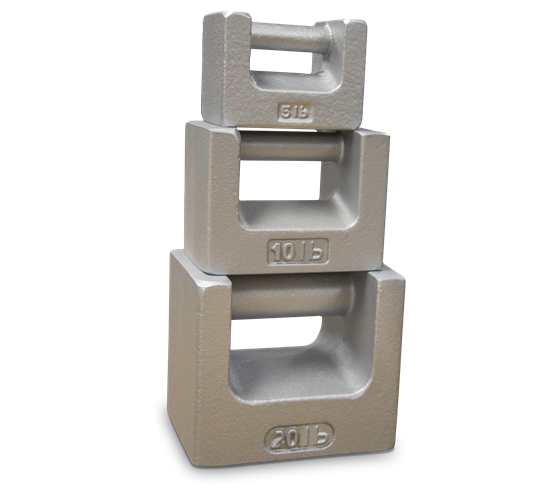

Cast iron calibration weights with a grip handle or nesting slab style are available in weight capacities of 10 kg/20 lb and up.

Download product PDF
Category:

Features

  • Nominal value marked on weight
  • Weight capacities of 10 kg/20 lb and up meet ASTM E617-18 and Handbook 44 specifications
  • Metric weights designated by gold paint
  • Avoirdupois (pound) weights designated by silver paint
  • Serial numbers may be stamped on weights (optional)

Specifications

Applications:

  • Field standards for testing industrial devices
  • Class III, Class IIIL or Class IIII
  • Testing for non-marked scales without
  • Class designation
  • Verifying scales are within specified accuracy and tolerances

Styles Available:

  • Grip-handle design for easy handling
  • Nesting slab weights for heavy-capacity weighing
  • Slotted weights and hangers for suspended weighing
  • Counterpoise weights for ratio weighing

Options

36092 Form,Statement of Accuracy
25836 Serial Number

Models

12872 Weight,Heavy Cap 3,000lb ASTM Class 6 Cast, Density 7.2
12854 Weight,Heavy Cap 2,500lb ASTM Class 6 Cast Iron Painted, Density 7.2
12868 Weight,Heavy Cap 2,000lb ASTM Class 6 Cast Iron Painted, Density 7.2
12864 Weight,Heavy Cap 1,500lb ASTM Class 6 Cast Iron Painted, Density 7.2
12858 Weight,Heavy Cap 1,250lb ASTM Class 6 Cast Iron Painted, Density 7.2
12850 Weight,Heavy Cap 1,000lb ASTM Class 6 Cast Iron Painted, Density 7.2
12844 Weight,Heavy Cap 500lb ASTM Class 6 Cast Iron Painted, Density 7.2
12892 Weight,Heavy Cap 250lb ASTM Class 6 Cast Iron Painted, Density 7.2
12890 Weight,Heavy Cap 200lb ASTM Class 6 Cast Iron Painted, Density 7.2
12862 Weight,GHDL 100lb ASTM Class 6 Cast Iron Painted, Density 7.2
12839 Weight,GHDL 50lb ASTM Class 6 Cast Iron Painted, Density 7.2
12878 Weight,GHDL 30lb ASTM Class 6 Cast Iron Painted, Density 7.2
12833 Weight,GHDL 25lb ASTM Class 6 Cast Iron Painted, Density 7.2
12870 Weight,GHDL 20lb ASTM Class 6 Cast Iron Painted, Density 7.2
