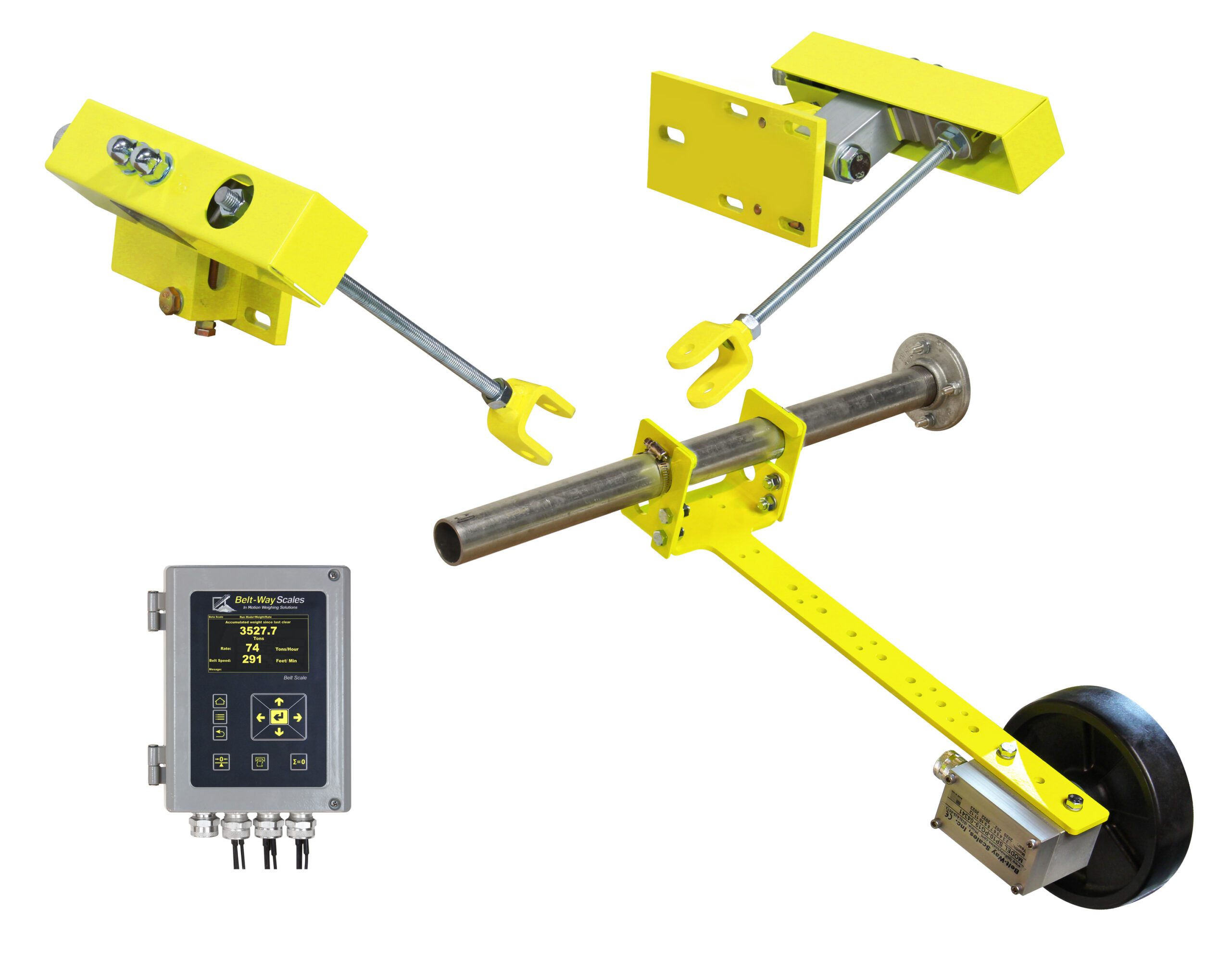

Belt-Way Scale’s Catenary Idler Scale is a very popular option for mobile crushers, screening, and milling machines. Catenary Idler Scales provide the durability to survive in crushing industry environments. They also provide the accuracy and performance needed in such an unforgiving environment. Catenary Idler Scales offer a very practical solution for tracking production with the addition of Plant Connect.
Belt-Way’s Catenary Idler Scales are developed to accommodate Metso/Nordberg’s LT105, LT110, and LT1213 machines. Belt-Way’s Catenary Idler Scales are also compatible with Wirtgen’s Milling Machines, as well. Catenary Idler Scales are great for portable equipment and provide a unique solution for crushing industry needs.
Installs on Metso/Nordberg’s LT105, LT110, and LT1213
Install on Wirtgen Milling Machines
Self-Aligning Design
Specifications
Calibration: Automatic tare weight determination, dynamic test and recalibration, automatic zero adjustment Alarms: Load cell failure, belt speed zero Communications: Ethernet port supports Modbus/TCP; USB port for data download and firmware updates Display: Large color graphic display with multi-language support Electrical Ratings: 12-30 VDC, 24 VDC 2.25A Max, AC Power Option: Input: 100-240 VAC, 1A Max, 50-60Hz, Output: 24 VDC, 2.25A Max Operating Temp.: -20 C to +45 C (-4 F to +113 F) Load Cell Inputs: Eight independent load cell inputs, 9 VDC-250mA nominal supply, +2mV/VDC nominal signal, 350 OHMS of load cell resistance Memory: 1,080 hours of internal memory storage Online Reporting: Each Integrator can connect to Plant Connect
