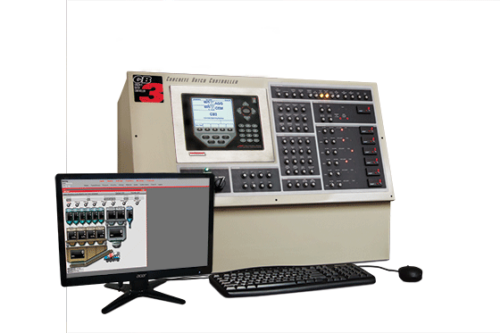

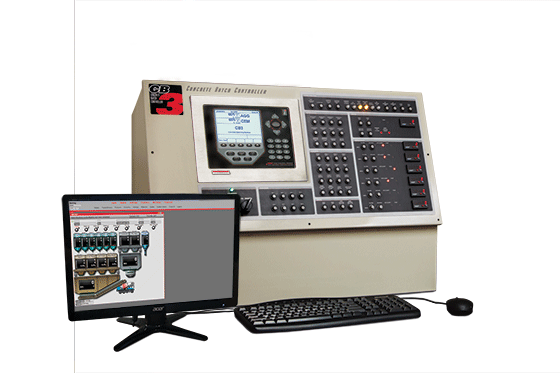

CB-3 Concrete Batch Controller

$0.00

The CB-3 concrete batch control system is ideal for ready-mix and block plants. Centrally control your entire operation with the industrial PC-powered CB-3.

Download product PDF
Categories: ,

Features

  • One aggregate and one cement scale, water scale is standard for 177746/177747
  • Manual override controls

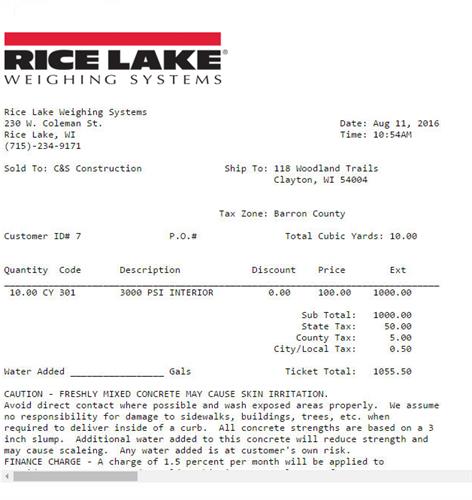

  • Customized batch ticket printing
  • 128 GB data storage

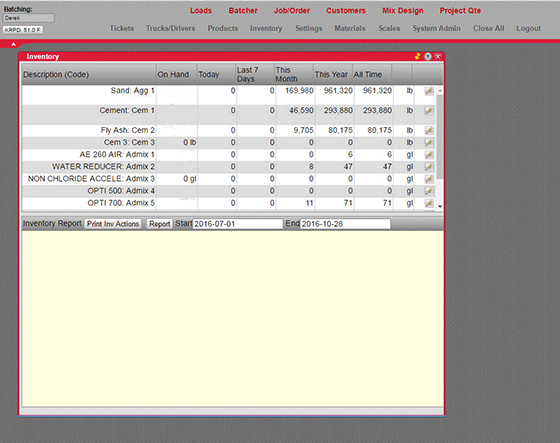

  • Material usage by day/week/month/year and inventory on-hand with reporting
  • Automatic aeration control for cement silos and weigh hoppers
  • Multiple freefall values per material
  • Split batching for loads larger than plant capacity with pre-weighing next batch
  • Automatic dust collection outputs

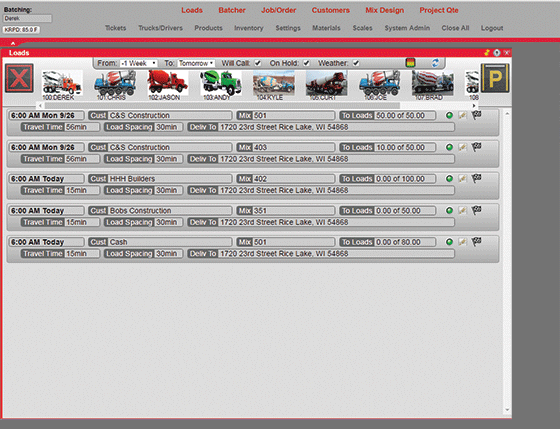

  • Order based batching
  • US standard or metric (SI) operation
  • Aggregate conveyor
  • Loss-in-weight aggregate dispensing
  • Four dual or eight single speed aggregates
  • Four dual or eight single speed cements
  • Weighed water with water reservoir
  • Four or eight auxiliary manual controls
  • Mixer controls for central mix block or precast plants
  • Ethernet TCP/IP
  • Up to six admixtures
  • Multi-user interface
  • Dual moisture probe interface supports 4-20 mA

Specifications

CB-3 Concrete Batch Controller Industrial PC Specifications

Model:
B&R APC2100

Processor Type:
Intel Atom E3845
Quad Core

Data Storage Type:
Industrial 5CFast Card

Data Storage Capacity:
128 GB

Interfaces:
Two USB
Two Ethernet

Monitor Output:
One SDL/DVI

Operating System:
Linux Ubuntu 16.04

Voltage:
24 VDC

CB-3 Concrete Batch Controller 920i Specifications



Line Voltages:
115 or 230 VAC

Frequency
50 or 60 Hz

Power Consumption:
500 mA, maximum at 115 VAC (26 W) / 240 mA at 230 VAC (26 W)

Full Scale Input Signal:
Up to 40 mV

Excitation Voltage:
10 ?0.5 VDC, 16 x 350 ? or 32 x 700 ? load cells per A/D card

Sense Amplifier:
Differential amplifier with 4 and 6 wire sensing

Analog Signal Input Range:
-10 mV to +40 mV

Analog Signal Sensitivity:
0.3 ?V/graduation minimum at 7.5 Hz
1.0 ?V/graduation typical at 120 Hz
4.0 ?V/graduation typical at 960 Hz

A/D Sample Rate:
60 Hz

Calibration Method:
Software, contents stored in flash memory

Display:
(W x H) 4.6 in x 3.4 in (116 mm x 86 mm), 320 x 240 pixel VGA liquid crystal display (LCD)
module with adjustable contrast, 75 Hz scan rate 26,000 cd/m2 brightness

Keyboard:
27-key membrane panel

Input Overload:
Load cell signal lines ?10 V continuous, ESD protected

RFI/EMI Protection:
Signal, excitation and sense lines protected

Microcomputer:
Motorola ColdFire MCF5307 main processor at 90 MHz

Digital Filter:
Software selectable: 1?256, enhanced RATTLETRAP hybrid digital filtering

Warranty:
Two-year limited warranty

Options

CB-3 Options

  • Monitor
  • Keyboard
  • USB hub four ports
  • USB WI-FI don-gal
  • Mouse
  • Additional four admixture control box
  • Portable batch plant system
  • Control panel for remote batching
