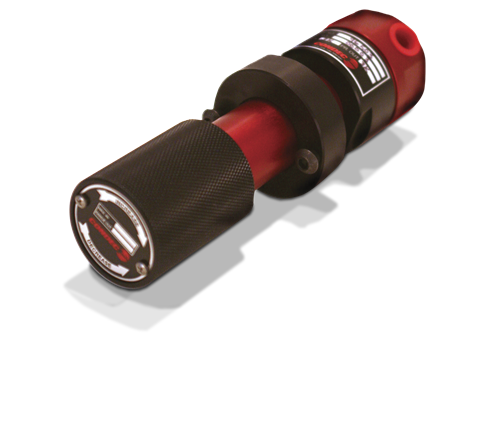

Condec REGulator Series

$0.00

Condec’s REGulator Series may be integrated with one of our burst discs and/or pressure relief valves for fail safe operator safety when installing in a system. When integrated with one of our CONDEC patented fingertip-adjustable Orion Series or MPV needle valves, you will have the advantages of proper regulation of your source, as well as precise fingertip adjustment of your downstream system output.

Download product PDF
Categories: ,

Features

  • Same quality Regulator as used in our Portable Pressure Calibrators
  • Low Torque required by operator for pressure adjustment
  • Single Stage, Venting Type with spring controlled piston
  • Integral inlet filter used to promote long life when used in clean systems
  • Adjustable Panel Mounting, see diagram on next page for dimensional requirements
  • May be integrated with one of our Burst Discs and/or Pressure Relief Valves for FAIL SAFE operator safety when installing in a system. When integrated with one of our CONDEC patented fingertip-adjustable Orion Series or MPV Needle Valves, you will have the advantages of proper regulation of your source, as well as precise finger-tip adjustment of your downstream system output

Specifications

Data:
Maximum Primary (inlet) Pressure:
3000 psig (206.9 Bar)
4 Ports Standard:
2 Inlet Ports – 1/4-18 NPT
2 Outlet Ports – 1/4-18 NPT
Operating Temperature:
0ºF to +140ºF (-18ºC to +60ºC)Materials:
Body: Aluminum
Cartridge Valve: Teflon, Brass, Stainless Steel
Seals: Nitrile		 Dimensions:
Height: Approximately 7-1/2 inches (190 mm) when fully opened
Body Diameter: 2 inches (50.8 mm)
Port Dimensions From Bottom of Base: 13/32 in. (10.3 mm)
Panel Mount Adjustment (from bottom of regulator base to rear surface of panel): 3 to 4 inches
(76.2 mm to 101.6 mm)

Options

115811 Regulator, REG 500 Pressure Rating 3000 PSIG/206.9 Bar Input 500 PSIG/34.5 Bar Output 2 Inlet Ports – 1/4-18 NPT, 2 Outlet Ports – 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)
106061 Regulator, REG 1000 Press Rating 3000 PSIG/206.9 Bar Input, 1000 PSIG/68.96 Bar Output 2 Inlet Ports – 1/4-18 NPT, 2 Outlet Ports – 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)
106062 Regulator, REG 2000 Press Rating 3000 PSIG/206.9 Bar Input, 2000 PSIG/137.93 Bar Output 2 Inlet Ports – 1/4-18 NPT, 2 Outlet Ports – 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)
104793 Regulator, REG 3000 Press Rating 3000 PSIG/206.9 Bar Input, 3000 PSIG/206.9 Bar Output 2 Inlet Ports – 1/4-18 NPT, 2 Outlet Ports – 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)
