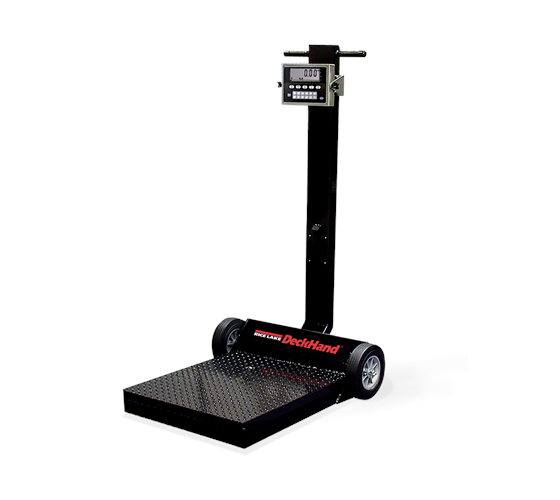

DeckHand? Rough-n-Ready Portable Floor Scale System

$0.00

  • Mild steel wheeled frame, base and mast
  • 500 lb, 1,000 lb, 2,000 lb capacity
  • Large rubber wheels simplify movement on uneven floors
  • Aluminum load cells (2)
  • Package includes: Mild steel DeckHand portable scale and 482 Plus indicator with internal battery
  • Factory-wired and calibrated
  • See 482 Plus for indicator specifications.
Download product PDF
Categories: , , , ,

Features

? Mild steel wheeled frame, base and mast
? 500lb, 1,000lb, 2,000lb capacity
? Large rubber wheels (not rated for IS) simplify movement on uneven floors
? Two IP67 Aluminum load cells
? Package includes: Mild steel DeckHand portable scale and
482 Plus Legend indicator with internal battery
? Factory-wired and calibrated
? See 482 Plus Legend for indicator specifications

Specifications

End Load Capacity:? ? ? ?100% end loading
mV/V Output:? ? ?2mV/V
Cable Length:? ??9 ft 10 in (3m)
Height:
Weighing platter: 4.5 in height when in weigh mode
Column height: 59 in
Warranty:??Load cells two years, all other components one year
Approvals:? NTEP CC 98-004, Class III, 2,500 d
Measurement Canada AM-5218,
(250 kg and 500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d

Options

43376? ? ? ? ?Ramp ASSY,DECKHAND 38-3/4×25-1/2×4-3/8 500/1000lb. Steel Painted

43378? ? ? ? Ramp ASSY,DECKHAND 38-3/4×25-1/2×4-3/8 2000lb. Steel Painted



Models

169707? ? ? ??Scale PKG,Rough-n-Ready 500lb Deckhand/482 Plus indicator with internal battery (115vac) Factory Calibrated

169708? ? ? ??Scale PKG,Rough-n-Ready 1000lb Deckhand/482 Plus Indicator with internal battery (115vac) Factory Calibrated

169709? ? ? ??Scale PKG,Rough-n-Ready 2000lb Deckhand/482 Plus Indicator with internal battery (115vac) Factory Calibrated
