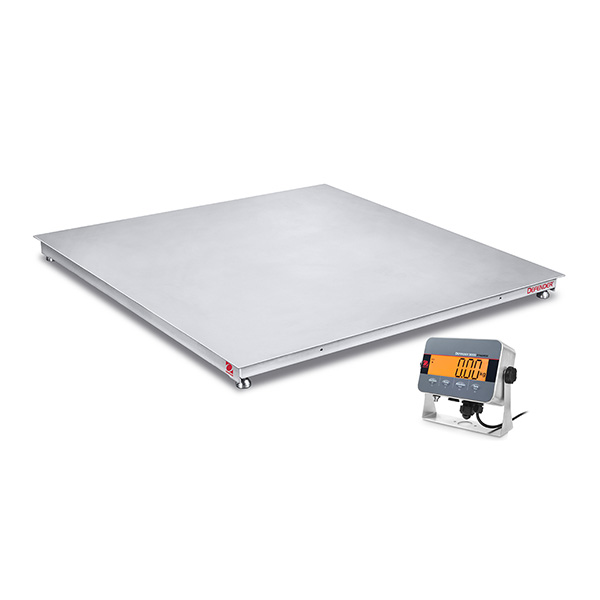

Defender™ 3000 Washdown Floor Scales – i-DF33

$0.00

Floor Scales for Basic Industrial Applications
Defender 3000 Floor Platforms meet washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that can change color when in check mode. Scale also includes counting and totalization modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available.



Download product PDF
Category:

Specifications

Applications
Weighing, Checkweighing, Counting, Totalization
Display
7 Segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included) or rechargeable battery (included)
Communication
Standard RS232 and optional USB Device or Ethernet
Construction
304-grade stainless steel IP66 indicator, 5mm / 0.196in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, stainless steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Models

Models #: I-DF33XW2500C1R
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Models #: I-DF33XW2500C1L
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Models #: I-DF33XW5000C1L
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
