Defender 5000 – D52

$0.00

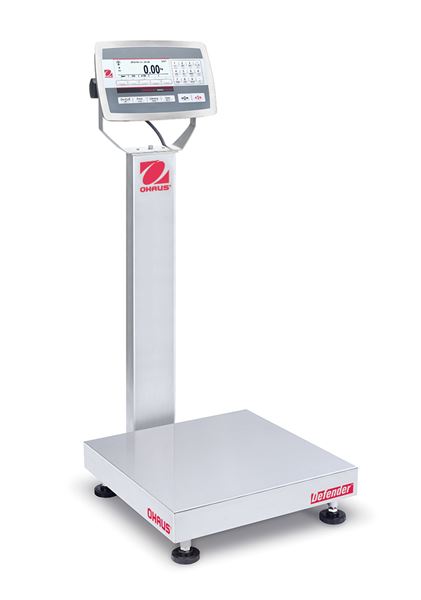

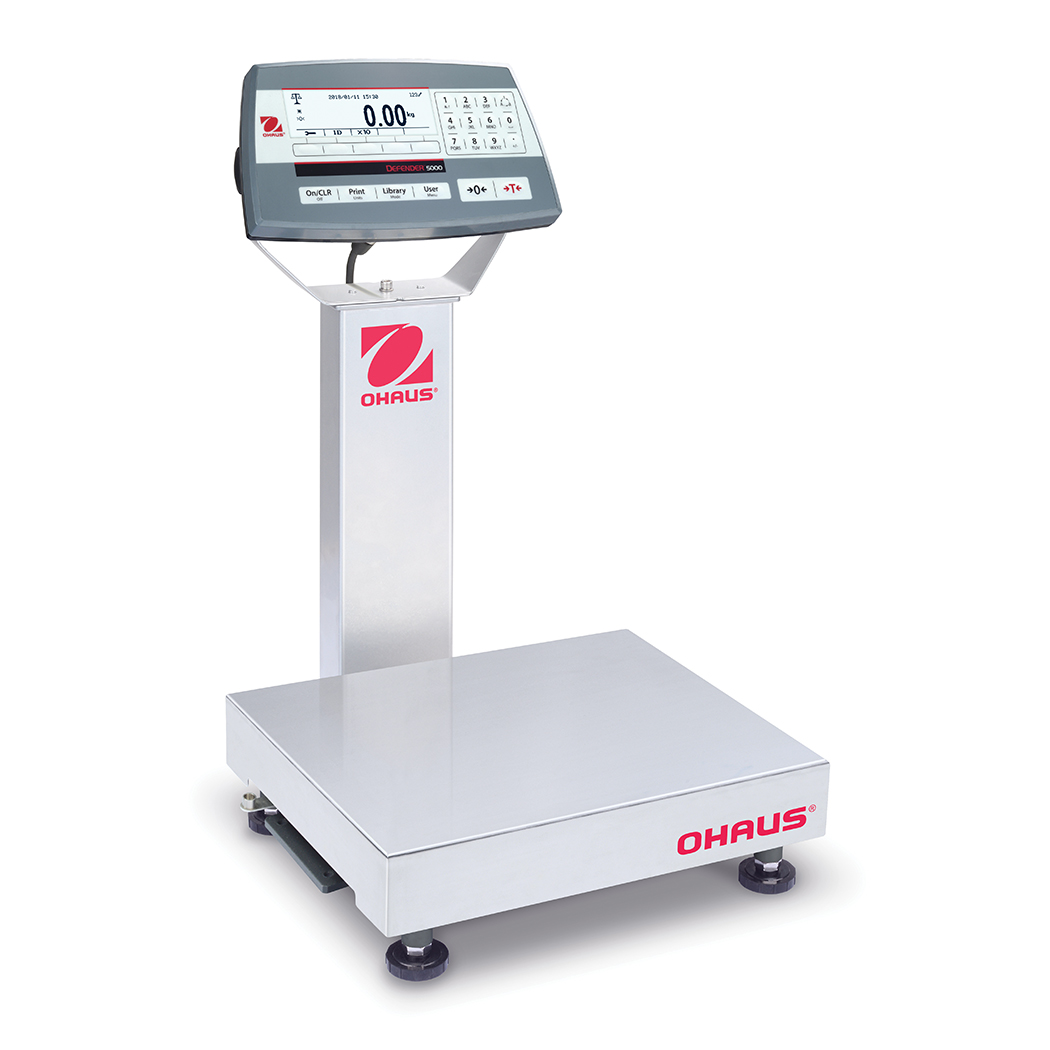

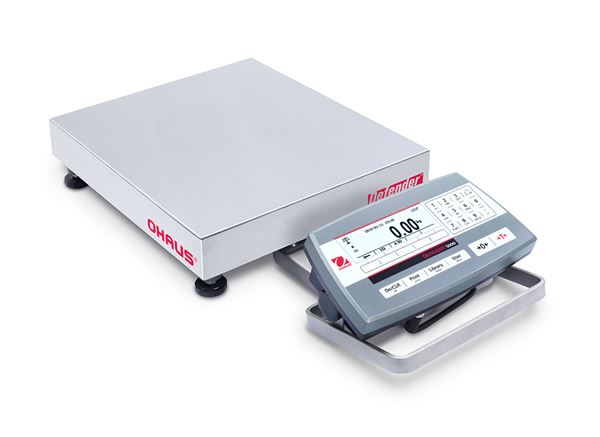

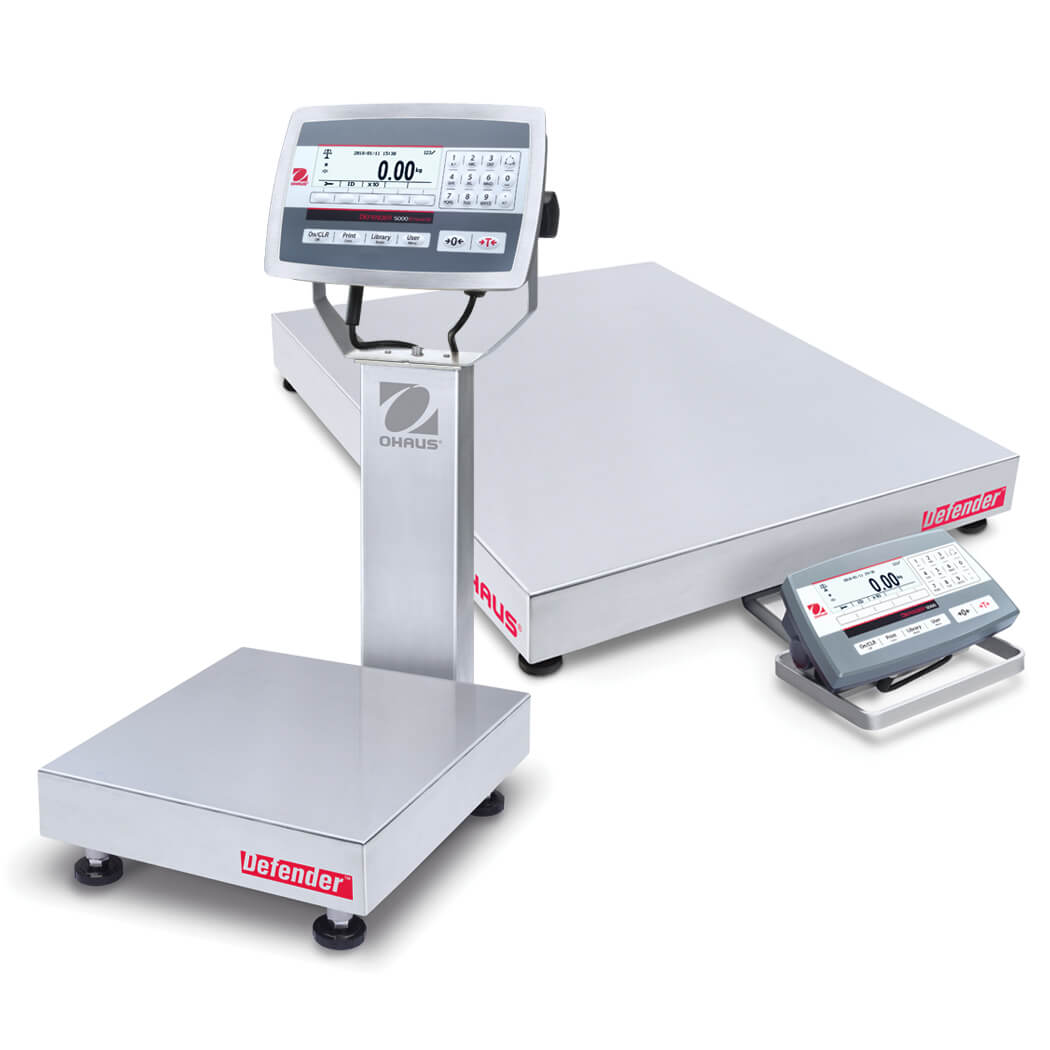

Multifunctional Bench Scale for Standard Industrial Applications

Download product PDF
Categories: , , , ,

Features

Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)

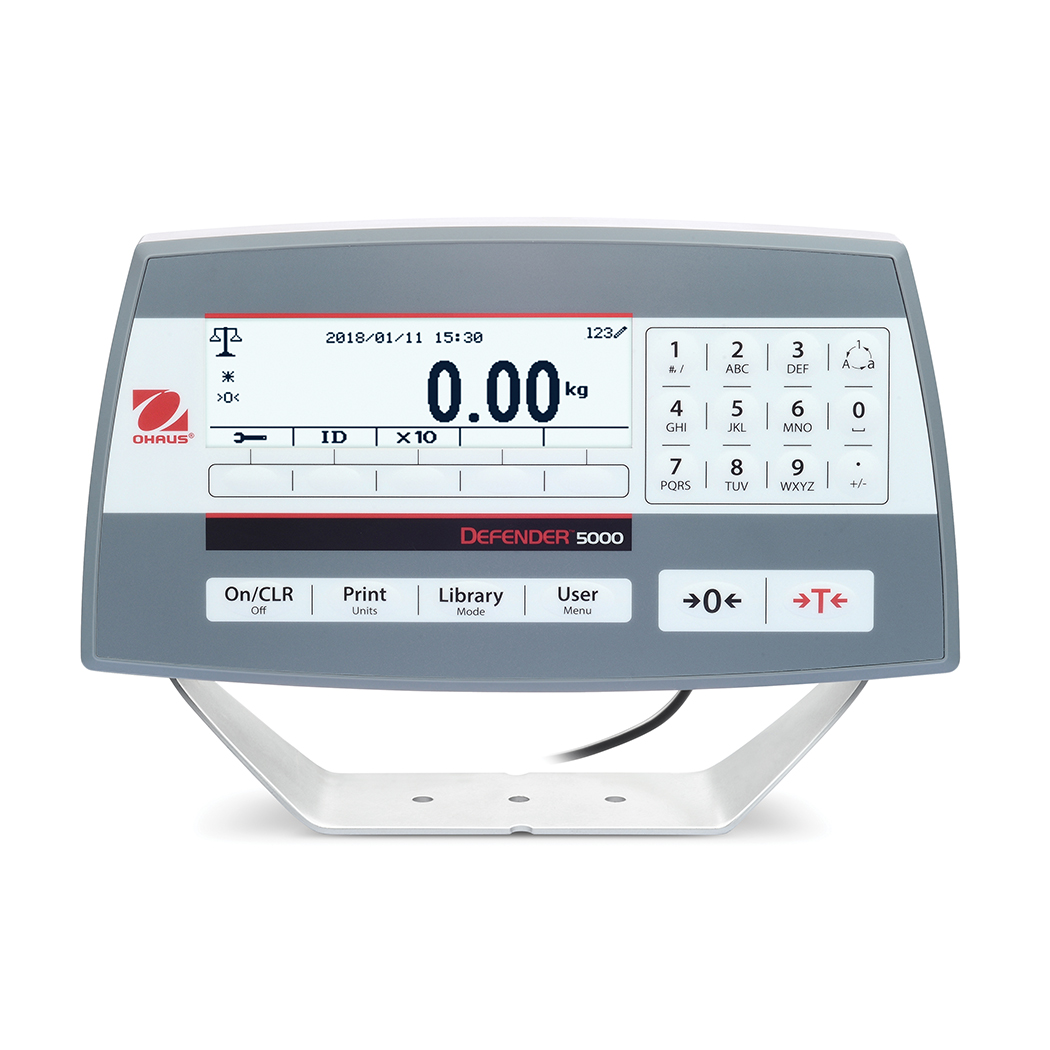

Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet
Design Features
User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare

Options

Accessories
Battery Kit, Li-ion, TD52. . . . . . . . . . . . . . . . . . . . . . . 30424405
USB Host for Dongle, TD52. . . . . . . . . . . . . . . . . . . . 30424406
Light Tower, 3 Colors, 243mm, IP65(Requires 30097591). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424021
In-use Cover Kit, TD52P. . . . . . . . . . . . . . . . . . . . . . . . 30424022
In-use Cover Kit, TD52XW. . . . . . . . . . . . . . . . . . . . . 30424023
In-use Cover set (10), TD52P. . . . . . . . . . . . . . . . . . . 30469948
In-use Cover set (10), TD52XW. . . . . . . . . . . . . . . . . 30469949
Printer Holder Kit, D52. . . . . . . . . . . . . . . . . . . . . . . . 30424025
Wall Mount Kit, SST, TD52XW. . . . . . . . . . . . . . . . . . 30424026
Wall Mount Kit, CS, TD52P. . . . . . . . . . . . . . . . . . . . . 30424027
LC Extension Cable, 9 meters, D521. . . . . . . . . . . . . 30424409
M16 Gland with Ferrite, to TD52. . . . . . . . . . . . . . . 30379716
Micro SD Card, 8G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30303533
Analog Output Kit, TD523. . . . . . . . . . . . . . . . . . . . . . 30424403
Second RS232/RS485/USB Kit, TD523. . . . . . . . . . .30424404
I/O with Relay (2 In/4 Out)3. . . . . . . . . . . . . . . . . . . . . 30097591
WiFi/BT Dongle, OHAUS2 (Requires 30424406). . . . . . . . 30412537
Ethernet Kit, D522. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
Wheel Kit, Defender Series (for bases up to 300 kg)1. . . 30372146
Impact Printer SF40A. . . . . . . . . . . . . . . . . . . . . . . . . . 30064203
Thermal Printer STP-103. . . . . . . . . . . . . . . . . . . . . . . 80251992

Models

Model #:??D52P12RQR1??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52P12RQR5??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52P12RTR1??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52P12RTR5??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52XW12RQR1??Maximum Capacity? 25 lb (12.5 kg) Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52XW12RQR5??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52XW12RTR1??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52XW12RTR5??Maximum Capacity? 25 lb (12.5 kg)? Readability? 0.001 lb (0.5 g)? Readability (Certified)? 0.005 lb (2 g)
Model #:??D52P25RTR1??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52XW25RTr1??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52P25RTR5??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52XW25RTR5??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52P25RQR1??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52XW25RQR1??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52P25RQR5??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52XW25RQR5??Maximum Capacity? 50 lb (25 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
Model #:??D52P50RQR1??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RQR1Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RQR5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RQR5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RTR1??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RTR1??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RTR5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RTR5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RQL2??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RQL2??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RQL5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RQL5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RQV3??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RTX2??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RTX2??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RTX5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RTX5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RQV3??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52P50RQV5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW50RQV5??Maximum Capacity? 100 lb (50 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
Model #:??D52XW125RQL2??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RQL5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RQL5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RQV5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RQV5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RTV3??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RQV3??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RQV3??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RTV3??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RTV5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RTV5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RTX2??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RTX2??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P125RTX5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52XW125RTX5??Maximum Capacity? 250 lb (125 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
Model #:??D52P250RQV3??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52XW250RQV3??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)Readability (Certified)? 0.1 lb (50 g)
Model #:??D52P250RQV5??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52XW250RQV??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52P250RTV3??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:?D52XW250RTV3??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52XW250RTX2??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52P250RTX2??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52P250RTX5??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52XW250RTX5??Maximum Capacity? 500 lb (250 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
Model #:??D52P500RQV3??Maximum Capacity? 1,000 lb (500 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
Model #:??D52P500RTV3??Maximum Capacity? 1,000 lb (500 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
Model #:??D52XW500RTV3??Maximum Capacity? 1,000 lb (500 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
Model #:??D52XW500RQV??Maximum Capacity? 1,000 lb (500 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
