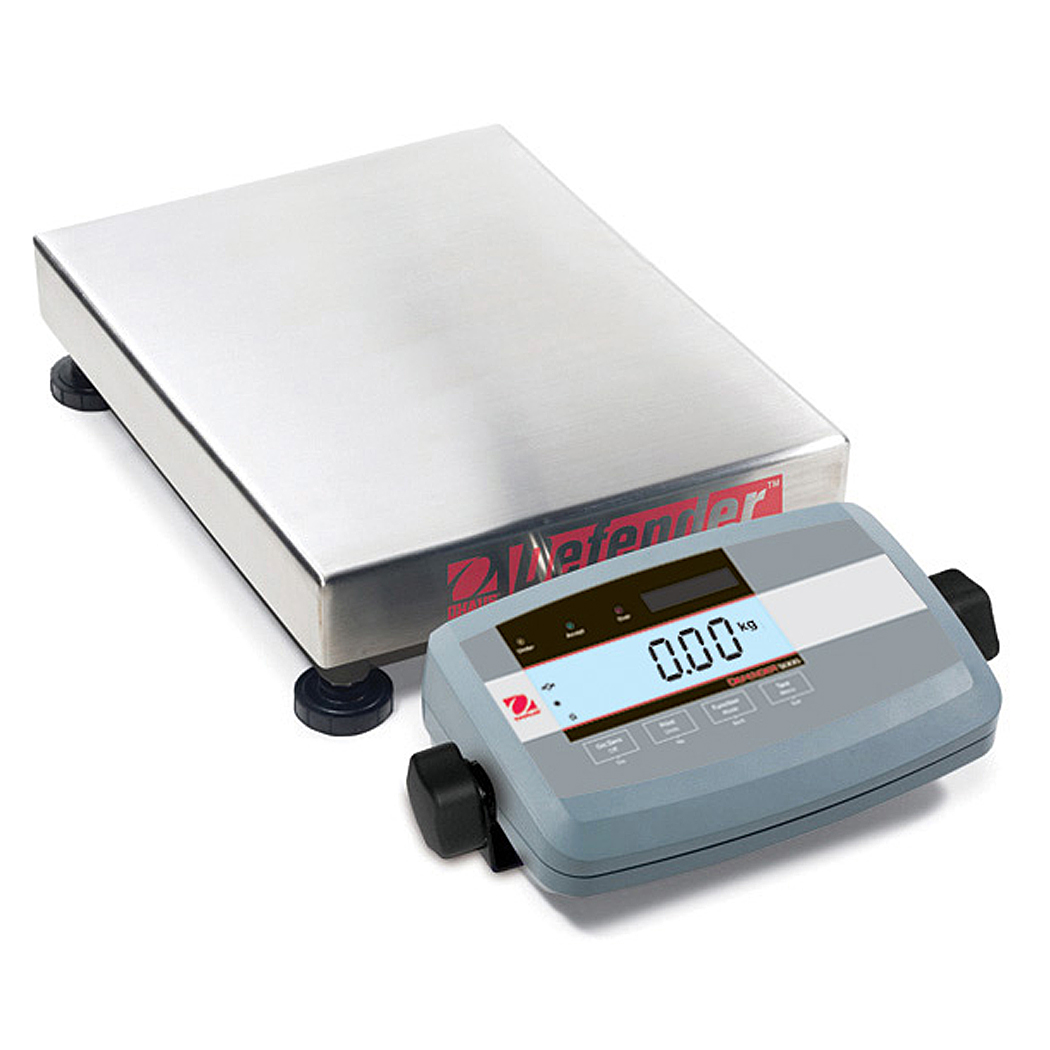

Defender 5000 Low Profile

$0.00

Smart Functionality and Durability for Industrial Applications!
  • Applications including dynamic weighing and checkweighing
  • Defender 5000 offers multiple weighing modes including counting, percent weighing, dynamic/animal weighing and checkweighing to meet the needs of various applications and industries.
  • Includes an internal power supply with universal line cord or can be powered by 6 C (LR14) batteries for up to 80 hours.
    Smart Functionality and Durability for Industrial Applications!
    • Applications including dynamic weighing and checkweighing
    • Defender 5000 offers multiple weighing modes including counting, percent weighing, dynamic/animal weighing and checkweighing to meet the needs of various applications and industries.
    • Includes an internal power supply with universal line cord or can be powered by 6 C (LR14) batteries for up to 80 hours.
Download product PDF
Categories: ,

Features

  • Applications? Weighing, Dynamic Weighing, Parts Counting, CheckWeighing, Percent Weighing, Display Hold
  • Display? Liquid Crystal Display (LCD) with white LED backlight plus 3 color checkweigh LED
  • Operation? Internal Universal Power Supply, 6 x C (LR14) Batteries (Not Included) or Optional Internal NiMH Rechargeable Battery
  • Communication? RS232 (Included), 2nd RS232 (Available as an Accessory), RS422/485 (Available as an Accessory)
  • Construction? ABS indicator, 304 stainless steel platform, black polyurethane painted steel form-and weld frame, IP67 aluminium load cell, base mount bracket included
  • Design Features? Platform with 5 or 6 point overload stops for 150% safe overload protection

Options

AC Relay Kit? 80500720
DC Relay Kit? 80500727
RS485/422 Interface Kit? 80500731
Second RS232 Interface Kit? 80500733
Power Options
Rechargeable Battery Kit, T51P/T51XW? 80500729
Compact Dot Matrix Impact Printer? 80252042
Compact Thermal Printer? 80251992
OHAUS Collect Software? 80500746
TAL Software WinWedge? 80850080
Paper for Printer, 80252042 (1 roll)? 80251932
Ribbon for Printer, 80252042? 80251933
RS232 Cable & Adapter, 80252042 Printer to T51P? 80252571
RS232 Cable, PC 9-pin to T51P? 80500525
RS232 Cable, PC 25-pin to T51P? 80500524

Models

  • Model #:? D51P10QR5? Maximum Capacity? 25 lb (10 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.005 lb (2 g)
  • Model #:? D51P15HR5? Maximum Capacity? 30 lb (15 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
  • Model #:? D51P25QR5? Maximum Capacity? 50 lb (25 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.01 lb (5 g)
  • Model #:? D51P30HR5? Maximum Capacity? 60 lb (30 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D51P50QL5? Maximum Capacity? 100 lb (50 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D51P60HR5? Maximum Capacity? 150 lb (60 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D51P60HL5? Maximum Capacity? 150 lb (60 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D51P100QL5? Maximum Capacity? 250 lb (100 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D51P150HX5? Maximum Capacity? 300 lb (150 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
  • Model #:? D51P250QX5? Maximum Capacity? 500 lb (250 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.1 lb (50 g)
  • Model #:? D51P300HX5? Maximum Capacity? 600 lb (300 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
