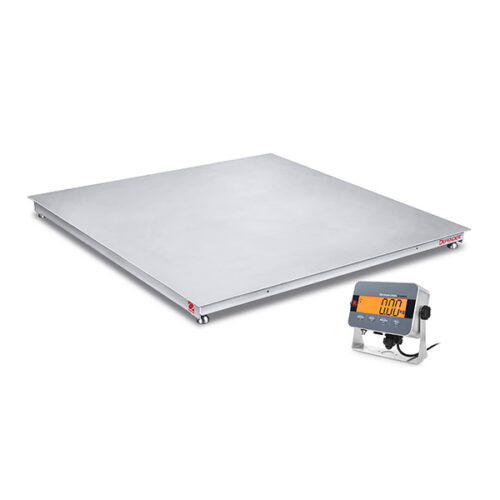

Defender™ 5000 Washdown Floor Scales – i-DF52

$0.00

Floor Scales for Standard Industrial Applications
Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold and other modes. Stainless steel bases include IP68 load cells for wet areas. Ramps and mounting plates are available.
Download product PDF
Category:

Specifications

Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
304 stainless steel IP68 indicator, 5 mm/0.196 in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, stainless steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Models

Models #: I-DF52XW2500C1R
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Models #: I-DF52XW2500C1L
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Models #: I-DF52XW5000C1L
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
