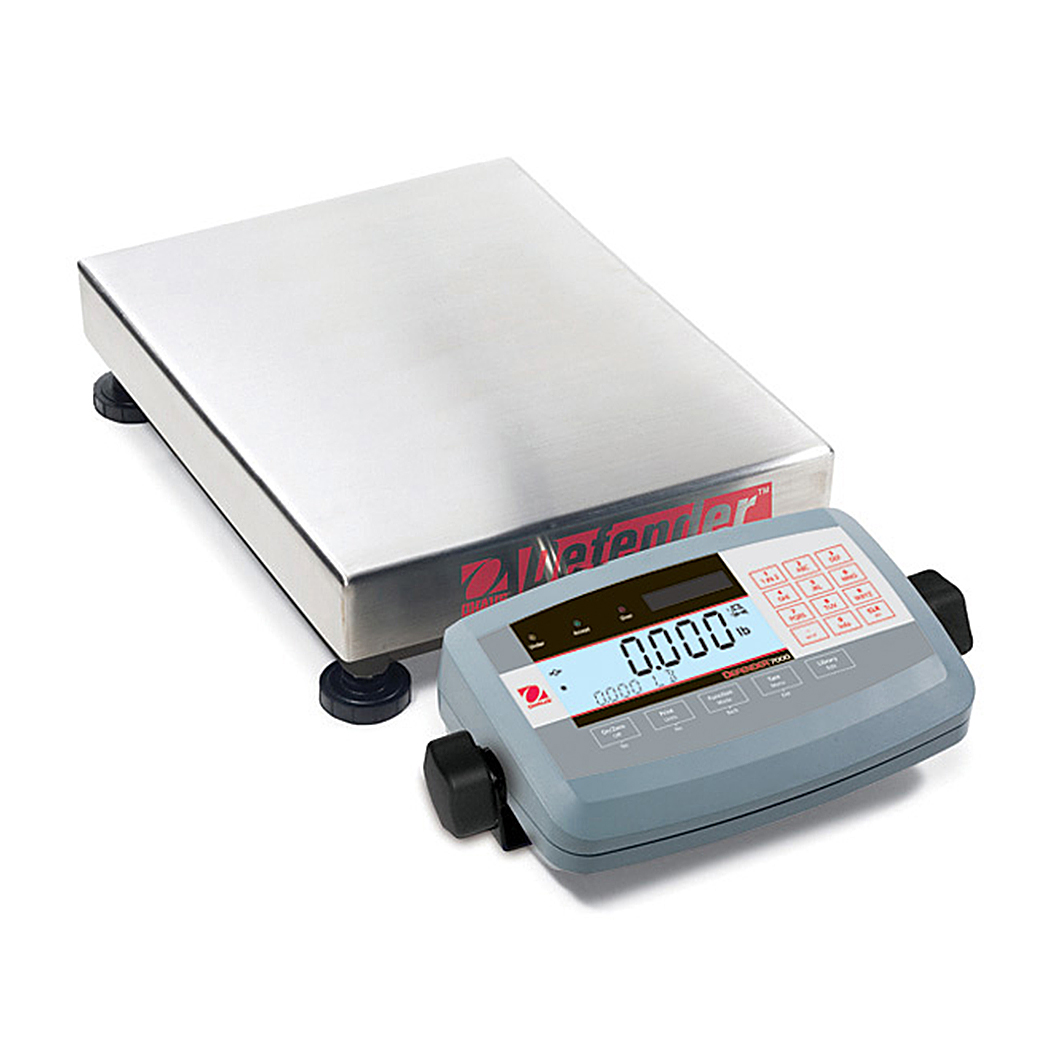

Defender 7000 Low Profile

Multi-Functional, High Quality Modular Scale For Advanced Applications
  • Full alphanumeric keypad, dual-line display supporting English, Spanish or French text, checkweighing LEDs
  • Advanced parts counting with dual-scale,dynamic weighing,percent weighing,display hold,checkweighing,accumulation,time/date,temporary expanded 10x readability mode,library mode with 255memory location
  • GMP data output with date, time user ID, project ID and scale ID, statistics, lb, oz, lb:oz, g, kg, metric tonnes, user-defined custom unit
Category:

Features

  • Applications? Weighing, Display Hold, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Accumulation, Library of up to 256 records, Optional Alibi Memory
  • Display? LCD display with white LED backlight, alphanumeric line and multi-language, plus 3 color checkweigh LED
  • Operation? Internal universal power supply or 6 x C batteries or optional internal NiMH rechargeable battery
  • Communication? RS232 Interface with GMP, Time-Date, optional RS422/485, AC/DC Relay, 2nd RS232
  • Construction? ABS Indicator, 304 grade stainless steel platform pan with black polyurethane painted steel form-and weld frame, IP67 aluminium load cell, base mount bracket included
  • Design Features? Alpha numeric keypad on indicator, platform with 5 or 6 point overload stops for 150% safe overload protection

Options

AC Relay Kit? 80500720
DC Relay Kit? 80500727
RS485/422 Interface Kit? 80500731
Second RS232 Interface Kit? 80500733
Foot Switch? 71173378
Power Options
Rechargeable Battery Kit, T71P/T71XW? 80500729
Compact Dot Matrix Impact Printer? 80252042
Compact Thermal Printer? 80251992
OHAUS Collect Software? 80500746
Alibi Memory Option Kit?80500503
TAL Software WinWedge? 80850080
Paper for Printer, 80252042 (1 roll)? 80251932
Ribbon for Printer, 80252042? 80251933
RS232 Cable & Adapter, 80252042 Printer to T71P? 80252571
RS232 Cable, PC 9-pin to T71? 80500525
RS232 Cable, PC 25-pin to T71P? 80500524

Models

  • Model #:? D71P10QR5?? Maximum Capacity? 25 lb (10 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.005 lb (2 g)
  • Model #:? D71P15HR5? Maximum Capacity? 30 lb (15 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.01 lb (5 g)
  • Model #:? D71P25QR5? Maximum Capacity? 50 lb (25 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.01 lb (5 g)
  • Model #:? D71P30HR5? Maximum Capacity? 60 lb (30 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D71P50QL5? Maximum Capacity? 100 lb (50 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D71P50QL5? Maximum Capacity? 100 lb (50 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D71P60HL5? Maximum Capacity? 150 lb (60 kg)? Readability? 0.01 lb (5 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D71P100HL5? Maximum Capacity? 250 lb (100 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D71P100QL5? Maximum Capacity 250 lb (100 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.05 lb (20 g)
  • Model #:? D71P150HX5? Maximum Capacity? 300 lb (150 kg)? Readability? 0.02 lb (10 g)? Readability (Certified)? 0.1 lb (50 g)
  • Model #:? D71P250QX5? Maximum Capacity? 500 lb (250 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.1 lb (50 g)
  • Model #:? D71P300HX5? Maximum Capacity? 600 lb (300 kg)? Readability? 0.05 lb (20 g)? Readability (Certified)? 0.2 lb (100 g)
