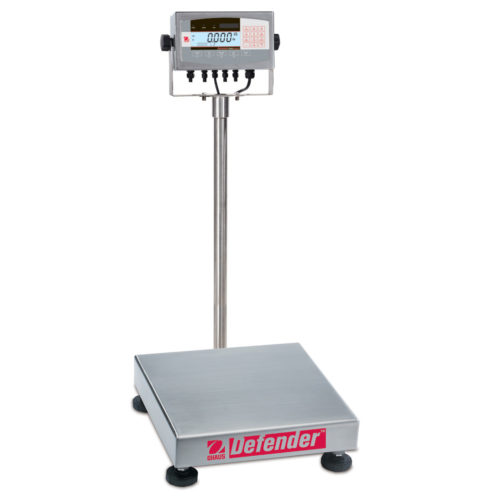

Defender 7000 Washdown

High Performance Stainless Steel Washdown Bench Scales for Advanced Applications
  • Defender 7000 has advanced features such as accumulation mode, a 255-item library and optional alibi memory capability, as well as a 1:15,000 maximum displayed resolution.
  • This advanced scale has dual-scale capabilities in which it can display the weights from two platforms and is powerful enough to drive up to 8 – 350 ohm load cells per platform.

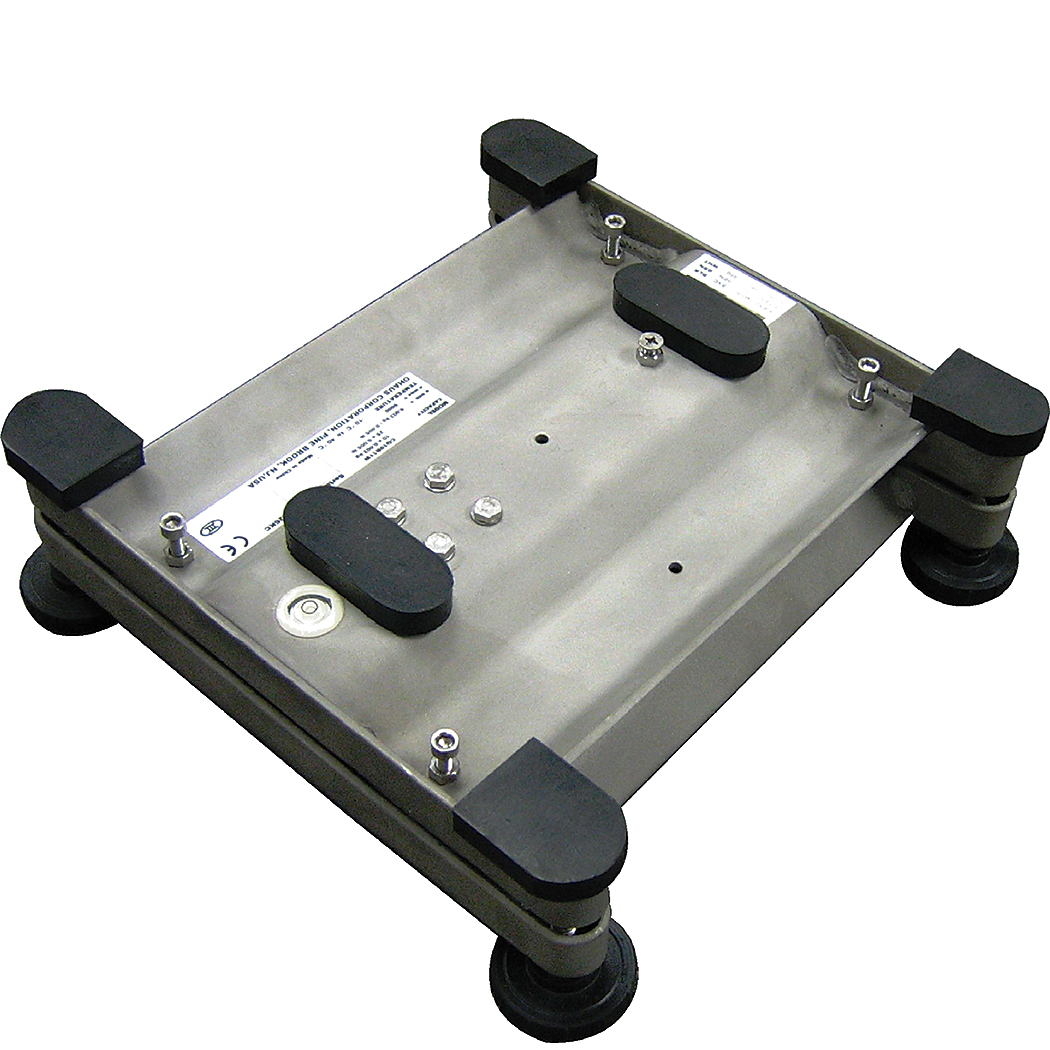

  • The rugged Defender 7000 has a stainless steel platform, form-and-weld frame, IP67 load cell, column and indicator bracket, as well as an indicator that is NEMA 4X/IP66 rated.
Unfortunately this product has been DISCONTINUED. For similar products click here.
Category:

Features

  • Applications? Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Accumulation, Display Hold

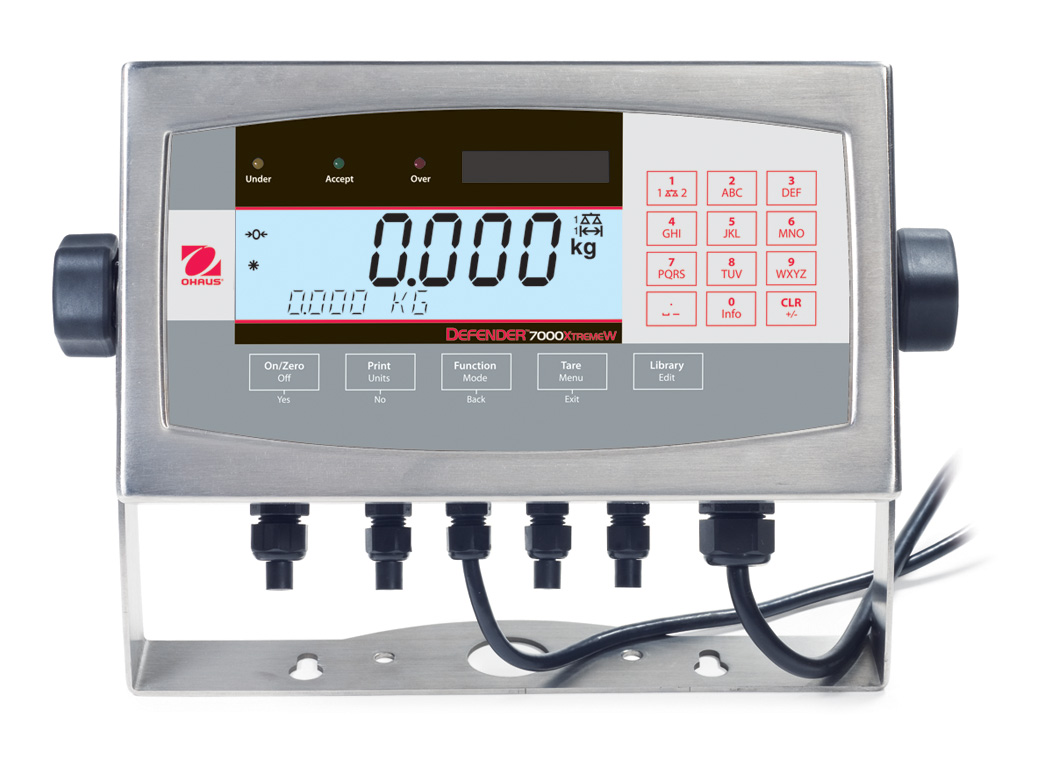

  • Display? Backlit liquid crystal display (LCD) with secondary information line, 3 color checkweighing LEDs
  • Operation? Power cord (included) or rechargeable battery (accessory sold separately)
  • Communication? Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
  • Construction? IP66 indicator with hinged front cover, IP67 stainless steel load cell, column, and mounting bracket, 304 grade stainless steel form-and-weld frame
  • Design Features? User-configurable resolution up to 50,000d/10,000e, alibi memory kit (accessory sold separately), 150% overload capacity protection, five operating languages, OIML Approved, NTEP Certified and Measurement Canada Approved

Options

AC Relay Kit? 80500720
DC Relay Kit? 80500727
RS485/422 Interface Kit 80500731
Second RS232 Interface Kit? 80500733
Foot Switch? 71173378
Power Options
Rechargeable Battery Kit, T71P/T71XW? 80500729
Compact Thermal Printer? 80251992
OHAUS Collect Software? 80500746
Alibi Memory Option Kit? 80500503
TAL Software WinWedge? SW12W
Paper for Printer, 80252042 (1 roll)? 80251932
Ribbon for Printer, 80252042? 80251933
RS232 Cable & Adapter, 80252042 Printer to T71XW? 80252574
RS232 Cable, PC 9 Pin to T71XW? 80500552
RS232 Cable, PC 25-pin to T71XW? 80500553

Models

  • Model #:? D71XW10WR3 Maximum Capacity? 25 lb (10 kg)? Readability? 0.002 lb (1 g)? Readability (Certified)? 0.005 lb (2 g)
  • Model #:? D71XW25WR3 Maximum Capacity? 50 lb (25 kg)? Readability? 0.005 lb (2 g)? Readability (Certified)? 0.01 lb (5 g)
  • Model #:? D71XW50WL4? Maximum Capacity? 100 lb (50 kg) Readability? 0.01 lb (5 g)? Readability (Certified)? 0.02 lb (10 g)
  • Model #:? D71XW100WL4? Maximum Capacity? 250 lb (100 kg) Readability? 0.02 lb (10 g)? Readability (Certified)? 0.05 lb (20 g)

  • Model #:? D71XW250WX4? Maximum Capacity? 500 lb (250 kg) Readability? 0.05 lb (20 g)? Readability (Certified)? 0.1 lb (50 g)
