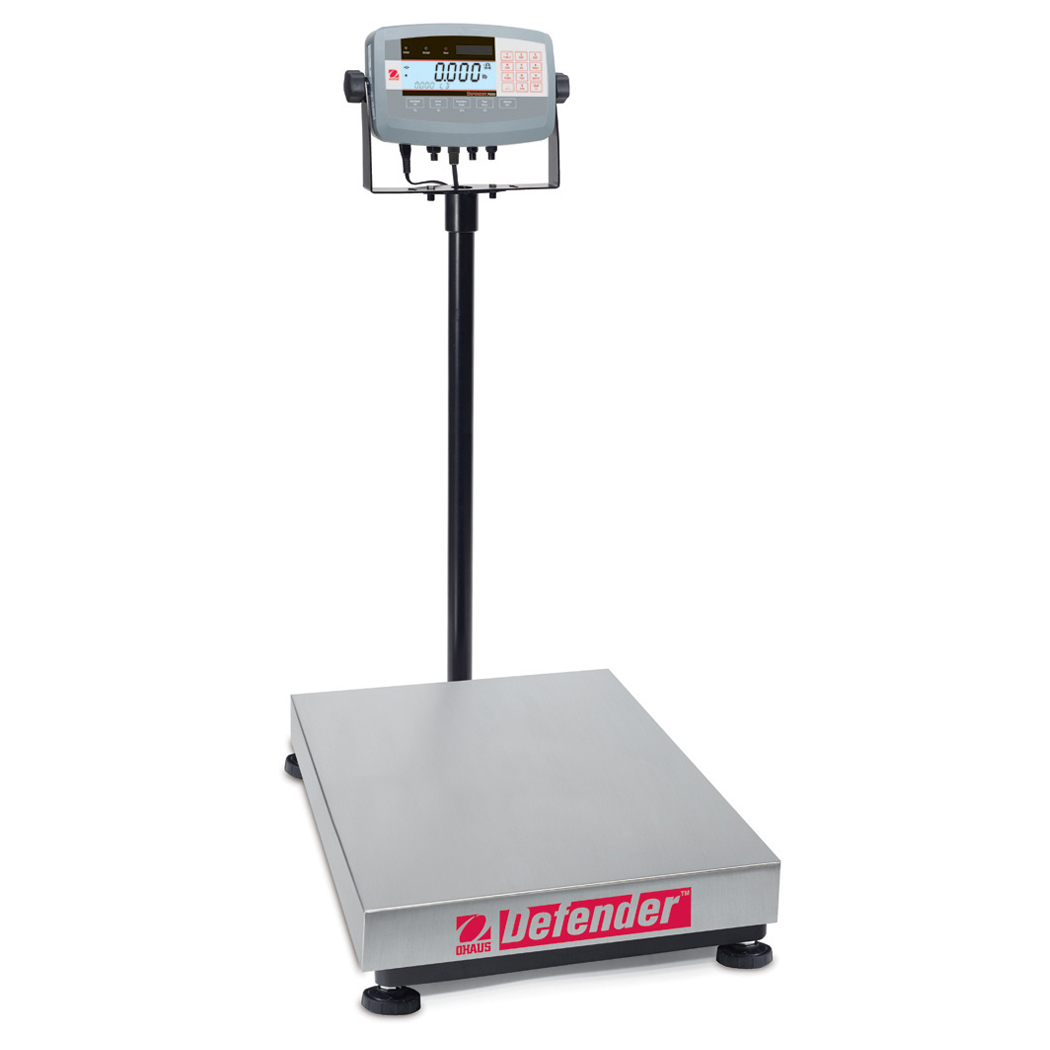

Defender® 7000

$0.00

High Performance Bench Scales for Advanced Applications
  • Defender 7000 has advanced features such as accumulation mode, a 255-item library and optional alibi memory capability, as well as a 1:15,000 maximum displayed resolution.
  • This advanced scale has dual-scale capabilities in which it can display the weights from two platforms and is powerful enough to drive up to 8 – 350 ohm load cells per platform.
  • The ultra-durable Defender 7000 has a stainless steel platform, painted form-and-weld frame, column, and indicator bracket, aluminum IP67 load cell as well as an ABS indicator.
Download product PDF

Features

  • Applications  Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Accumulation, Display Hold
  • Display  Backlit liquid crystal display (LCD) with secondary information line, 3 color checkweighing LEDs
  • Operation  Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)
  • Communication  Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
  • Construction  ABS plastic indicator with reversible rear cover, painted steel wall bracket and column, painted steel 304 grade stainless steel platform with black polyurethane form-and-weld frame, IP67 aluminum load cell, non-slip adjustable rubber feet
  • Design Features  User-configurable resolution up to 50,000d/10,000e, alibi memory kit (accessory sold separately), 150% overload capacity protection, five operating languages, OIML Approved, NTEP Certified and Measurement Canada Approved

Options

AC Relay Kit  80500720
DC Relay Kit  80500727
RS485/422 Interface Kit  80500731
Second RS232 Interface Kit  80500733
Power Options
Rechargeable Battery Kit, T71P/T71XW  80500729
Compact Dot Matrix Impact Printer  80252042
Compact Thermal Printer  80251992
OHAUS Collect Software  80500746
Alibi Memory Option Kit  80500503
TAL Software WinWedge  80850080
Paper for Printer, 80252042 (1 roll)  80251932
Ribbon for Printer, 80252042  80251933
RS232 Cable & Adapter, 80252042 Printer to T71P  80252571
RS232 Cable, PC 9-pin to T71  80500525
RS232 Cable, PC 25-pin to T71P  80500524

Models

  • Model #:  D71P10QR1   Maximum Capacity  25 lb (10 kg)  Readability  0.002 lb (1 g)  Readability (Certified)  0.005 lb (2 g)
  • Model #:  D71P15HR1   Maximum Capacity  30 lb (15 kg)  Readability  0.002 lb (1 g)  Readability (Certified)  0.01 lb (5 g)
  • Model #:  D71P25QR1   Maximum Capacity  50 lb (25 kg)  Readability  0.005 lb (2 g)  Readability (Certified)  0.01 lb (5 g)
  • Model #:  D71P30HR1  Maximum Capacity  60 lb (30 kg)  Readability  0.005 lb (2 g)  Readability (Certified)  0.02 lb (10 g)
  • Model #:  D71P50QL2  Maximum Capacity  100 lb (50 kg)  Readability  0.01 lb (5 g)  Readability (Certified)  0.02 lb (10 g)
  • Model #:  D71P60HR1  Maximum Capacity  150 lb (60 kg)  Readability  0.01 lb (5 g)  Readability (Certified)  0.05 lb (20 g)
  • Model #:  D71P60HL2  Maximum Capacity  150 lb (60 kg)  Readability  0.01 lb (5 g)  Readability (Certified)  0.05 lb (20 g)
  • Model #:  D71P100HL2  Maximum Capacity  250 lb (100 kg)  Readability  0.02 lb (10 g)  Readability (Certified)  0.05 lb (20 g)
  • Model #:  D71P100QL2  Maximum Capacity  250 lb (100 kg)  Readability  0.02 lb (10 g)  Readability (Certified)  0.05 lb (20 g)
  • Model #:  D71P150HX2  Maximum Capacity  300 lb (150 kg)  Readability  0.02 lb (10 g)  Readability (Certified)  0.1 lb (50 g)
  • Model #:  D71P250QX2  Maximum Capacity  500 lb (250 kg)  Readability  0.05 lb (20 g)  Readability (Certified)  0.1 lb (50 g)
  • Model #:  D71P300HX2  Maximum Capacity  600 lb (300 kg)  Readability  0.05 lb (20 g)  Readability (Certified)  0.2 lb (100 g)
